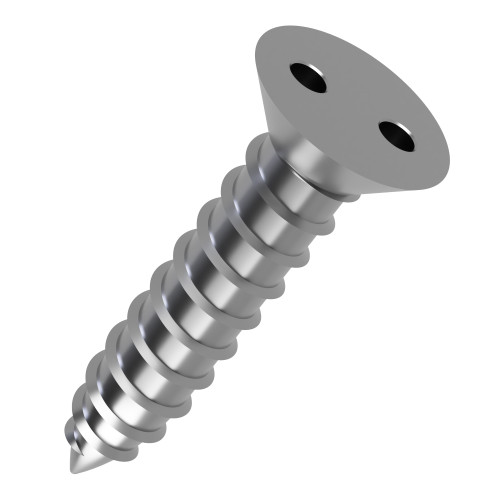

6.3mm x 25mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.13 | £1.36 |
| 100 - 499 | £1.08 | £1.30 |
| 500 - 999 | £0.85 | £1.02 |
| 1000 + | £0.57 | £0.68 |
Product Specification
| Thread Size | 6.3mm |
| Length | 25.0mm |
| Head Diameter | 12.3mm |
| Head Height | 3.90mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH8 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
6.3mm x 25mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
When the fixing must sit into the panel face, this 6.3mm x 25mm snake eye countersunk screw helps complete joining aluminium sections with a neat countersunk finish.
With a 3.90mm head height and 12.3mm head diameter, the design gives controlled seating in countersunk holes. A2 stainless steel supports corrosion resistance and consistent performance in retail fixture work where reliable long term fixing is required.
Common Applications
- Fixing sheet steel panels
- Securing access panels
- Fastening vehicle panels
- Fixing storage system panels

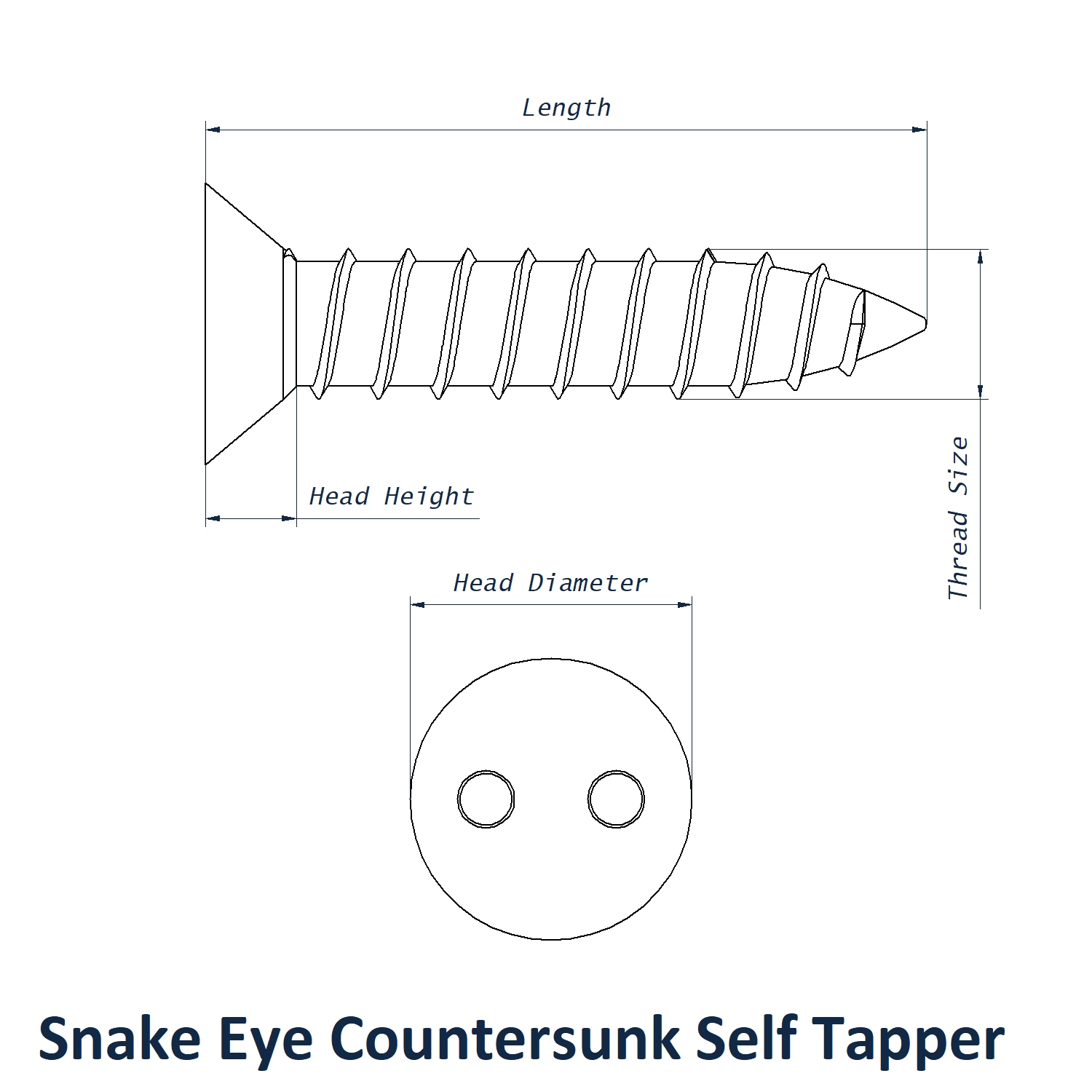

6.3mm x 25mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 25mm
- Head Diameter: 12.3mm
- Head Height: 3.90mm
- End Type: AB
- Drive: Security TH8
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
