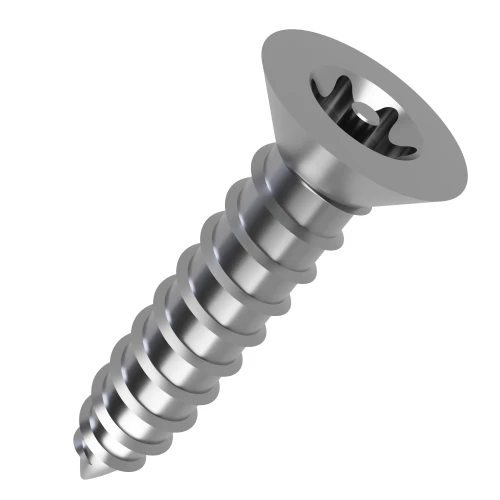

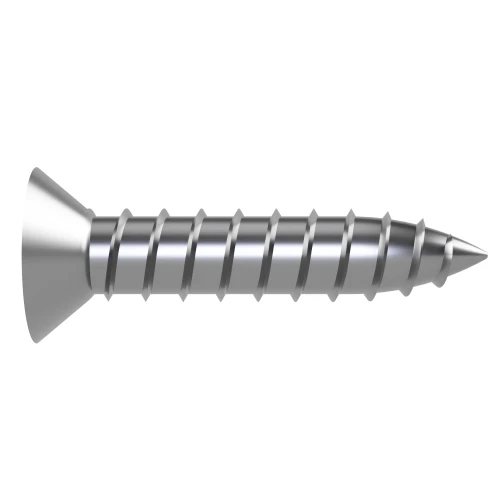

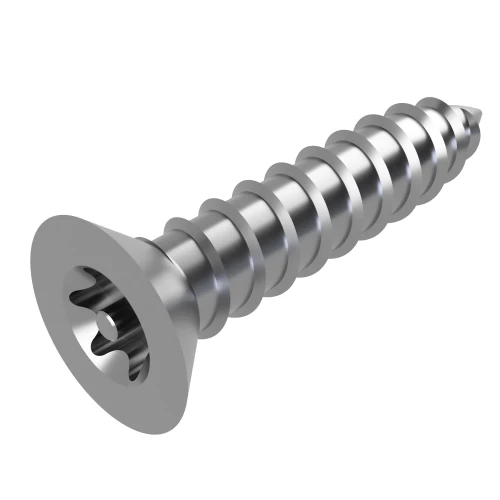

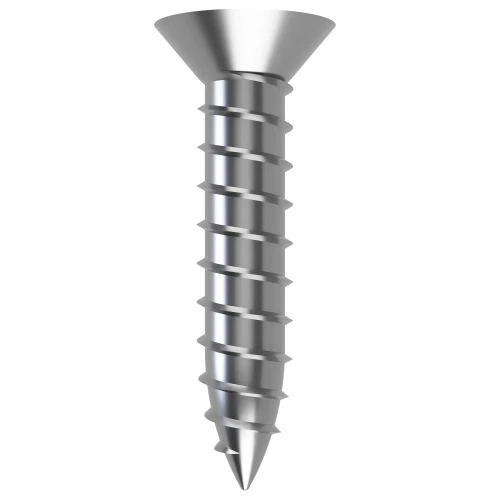

5.5mm x 25mm Pin Torx Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.17 | £0.21 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 + | £0.07 | £0.08 |
Product Specification
| Thread Size | 5.5mm |
| Length | 25.0mm |
| Head Diameter | 10.6mm |
| Head Height | 3.40mm |
| End Type | AB |
| Drive Type | Pin Torx |
| Drive | Security T27 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
5.5mm x 25mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
Total Price: £0.00
5.5mm x 25mm Pin Torx Countersunk AB Self Tapping Screw | A2 Stainless Steel
For assemblies requiring a clean external face, this 5.5mm x 25mm self cutting countersunk screw is designed around assembling metal cabinets in instrument housing work.
A2 stainless steel supports corrosion resistance and consistent performance in instrument housing work where a broader bearing surface is required. The AB end helps form a mating thread, making it useful for flush fixing screw work, countersunk fastener assemblies and assembly screw fitting.
Common Applications
- Securing removable maintenance covers
- Fastening aluminium cover panels
- Repairing fabricated housings
- Securing bracketed fixings

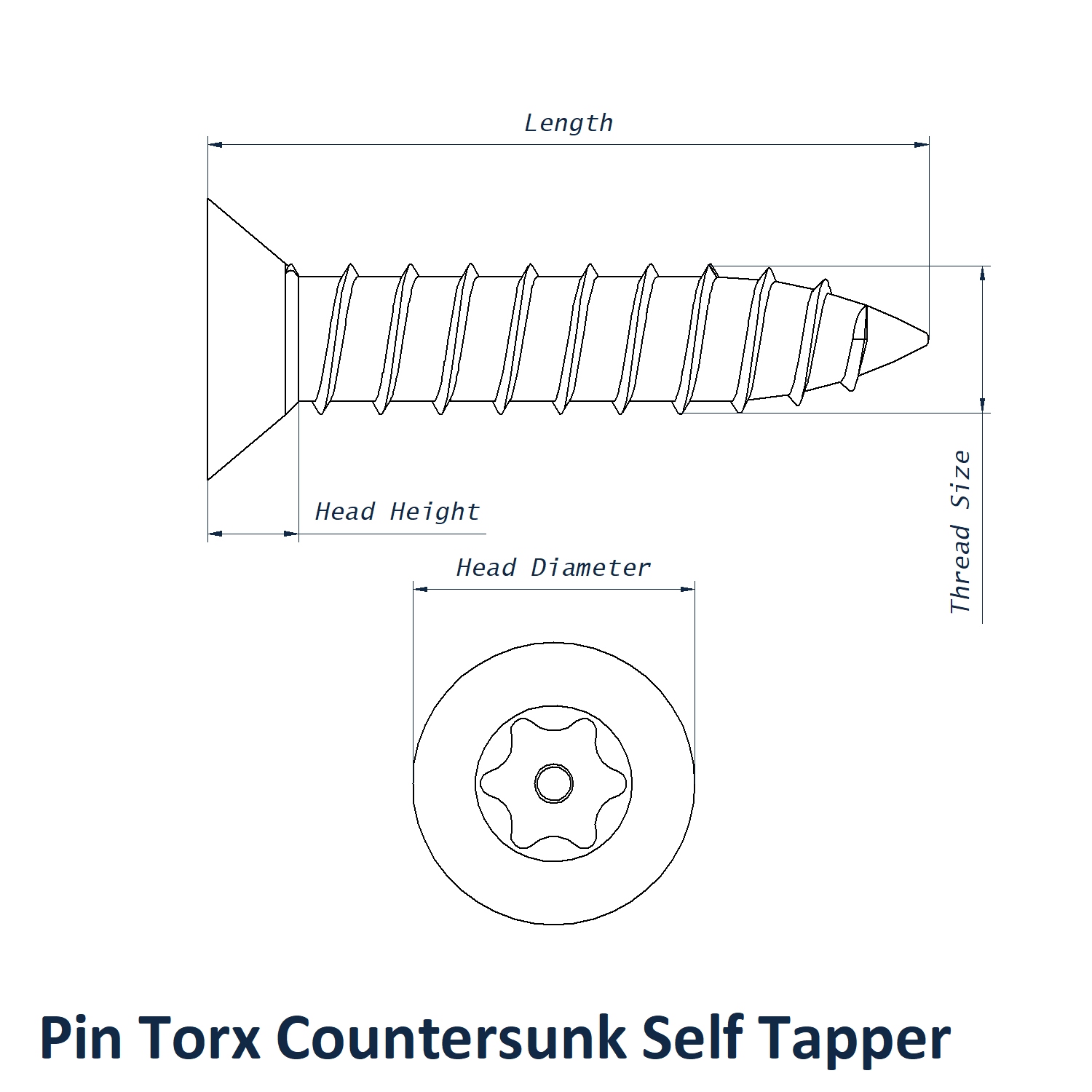

5.5mm x 25mm Pin Torx Countersunk Screw Dimensions
- Thread Size: 5.5mm
- Length: 25mm
- Head Diameter: 10.6mm
- Head Height: 3.40mm
- End Type: AB
- Drive: Security T27
- Drive Type: Pin Torx
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
