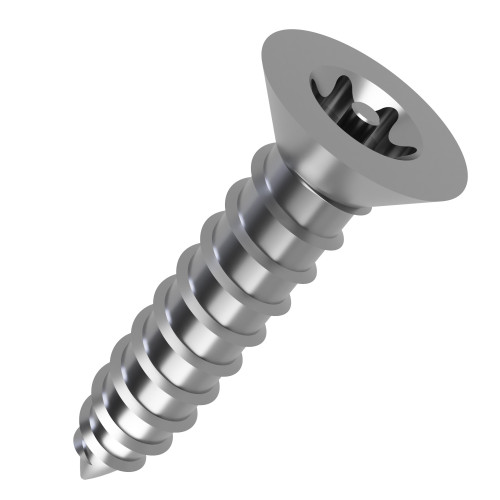

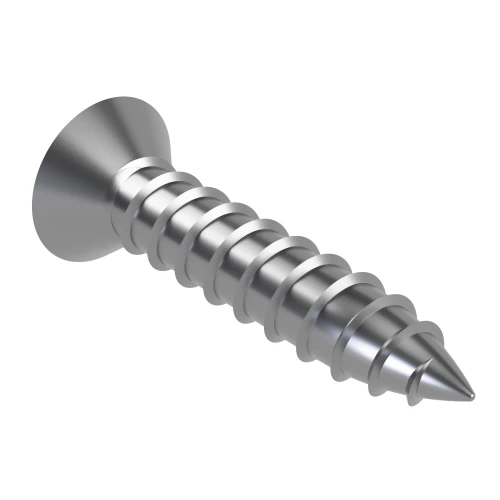

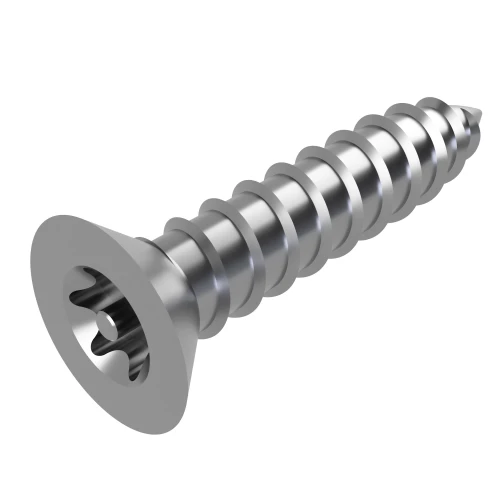

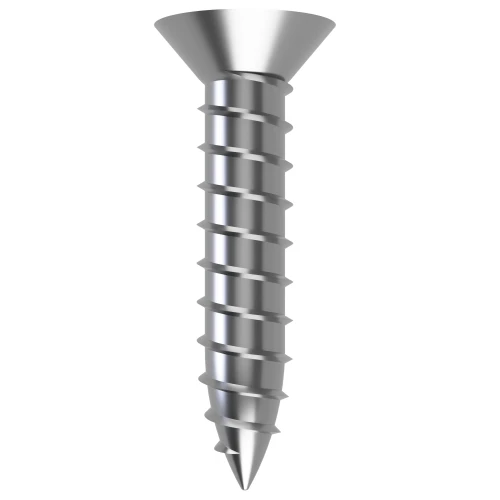

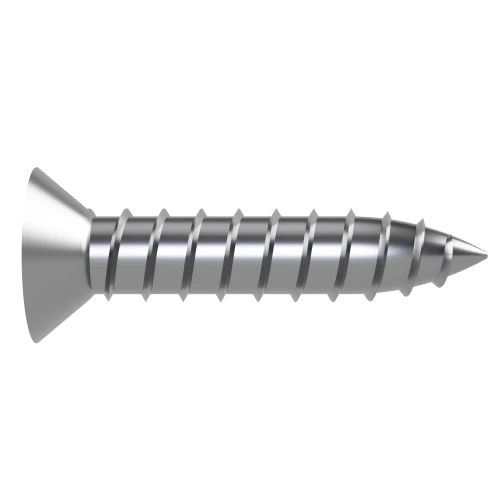

5.5mm x 75mm Pin Torx Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.84 | £1.01 |
| 100 - 499 | £0.81 | £0.97 |
| 500 - 999 | £0.71 | £0.85 |
| 1000 + | £0.33 | £0.40 |
Product Specification
| Thread Size | 5.5mm |
| Length | 75.0mm |
| Head Diameter | 10.6mm |
| Head Height | 3.40mm |
| End Type | AB |
| Drive Type | Pin Torx |
| Drive | Security T27 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
5.5mm x 70mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
Total Price: £0.00
5.5mm x 75mm Pin Torx Countersunk AB Self Tapping Screw | A2 Stainless Steel
Designed for fixing protective metal guards, this 5.5mm x 75mm self threading countersunk screw provides a clean flush fixing for engineering assemblies that need a low profile head.
A2 stainless steel supports corrosion resistance and consistent performance in engineering work where dependable maintenance fixing is required. This specification is suited to countersunk sheet screw use, bracket fixing screw work and enclosure screw fitting.
Common Applications
- Mounting steel panel inserts
- Securing agricultural guards
- Fastening support plates
- Repairing fabricated housings

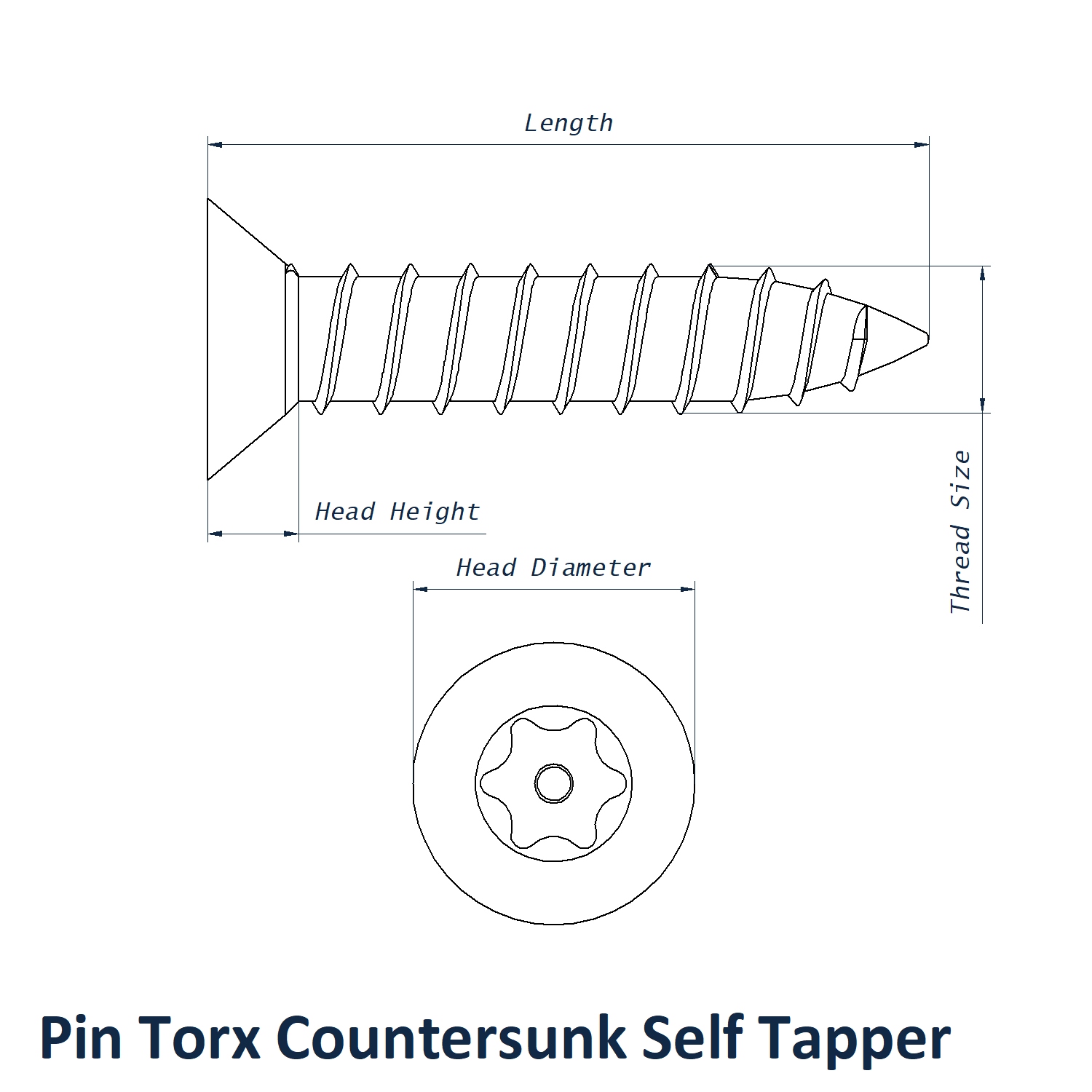

5.5mm x 75mm Pin Torx Countersunk Screw Dimensions
- Thread Size: 5.5mm
- Length: 75mm
- Head Diameter: 10.6mm
- Head Height: 3.40mm
- End Type: AB
- Drive: Security T27
- Drive Type: Pin Torx
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
