11.1mm Snub Bushing - 11.9mm Head (4.8mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.32 | £0.38 |
| 250 - 499 | £0.27 | £0.32 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 - 2499 | £0.17 | £0.20 |
| 2500 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.12 | £0.14 |
Product Specification
| Mounting Hole Diameter | 11.1mm |
| Approx. Cable Diameter | 4.8mm |
| Thickness | 3.2mm |
| Head Diameter | 11.9mm |
| Overall Height | 11.2mm |
Frequently Bought Together
Total Price: £0.00

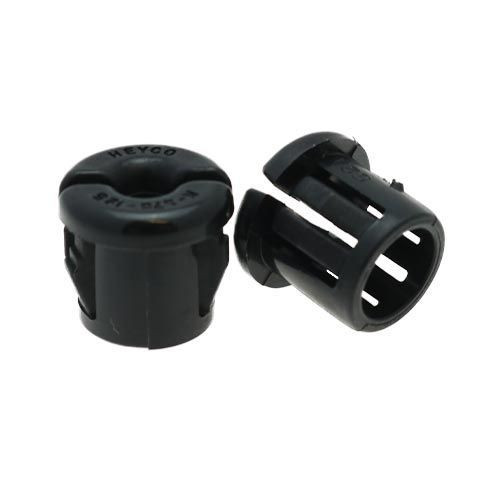

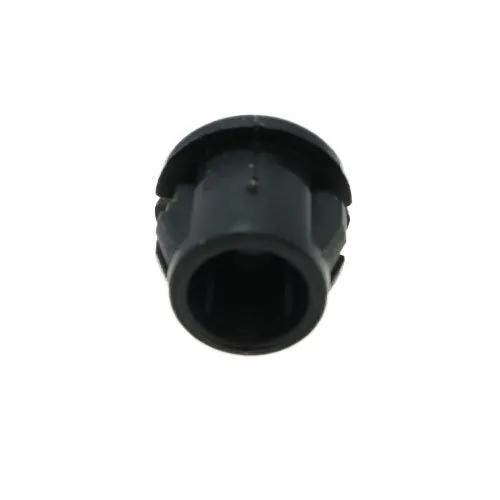

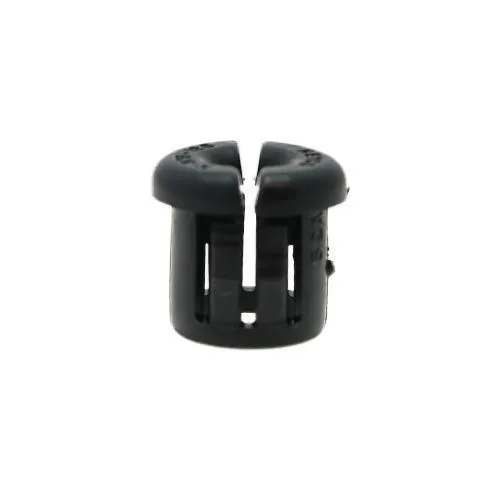

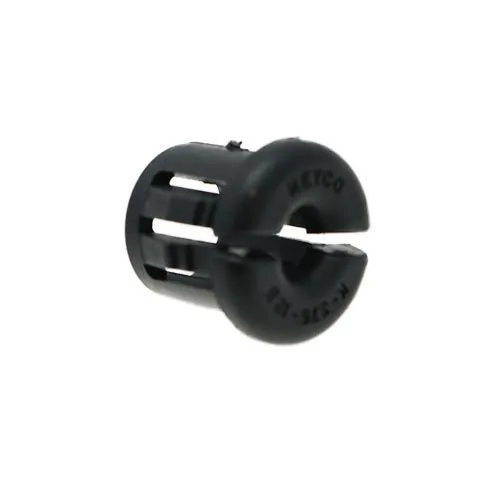

11.1mm Black Snub Cable Bushing | 4.8mm Cable Diameter | Nylon
This 11.1mm snub bushing is made for controlled cable entry through equipment panels, enclosing an approximate 4.8mm cable diameter while protecting the cable jacket from the cut edge of the hole. Its black Nylon construction gives a neat finish for electrical housings, small control boxes and wiring panels.
With a 11.9mm head diameter and 11.2mm overall height, the bushing offers a tidy face finish while helping hold the cable in place once the two halves are closed. It is a useful option for cable protection where access is limited and installation speed matters.
What Are Snub Cable Bushings?
A snub bushing is a cable protection insert designed to grip around the cable rather than simply lining the hole. Once installed, it helps reduce rubbing against the panel edge and supports a more controlled cable route through electrical or mechanical assemblies.
Common Applications
- Electrical enclosure cable protection
- Instrument panel wiring routes
- Cable exits in plastic housings
- Maintenance replacement for worn panel bushes

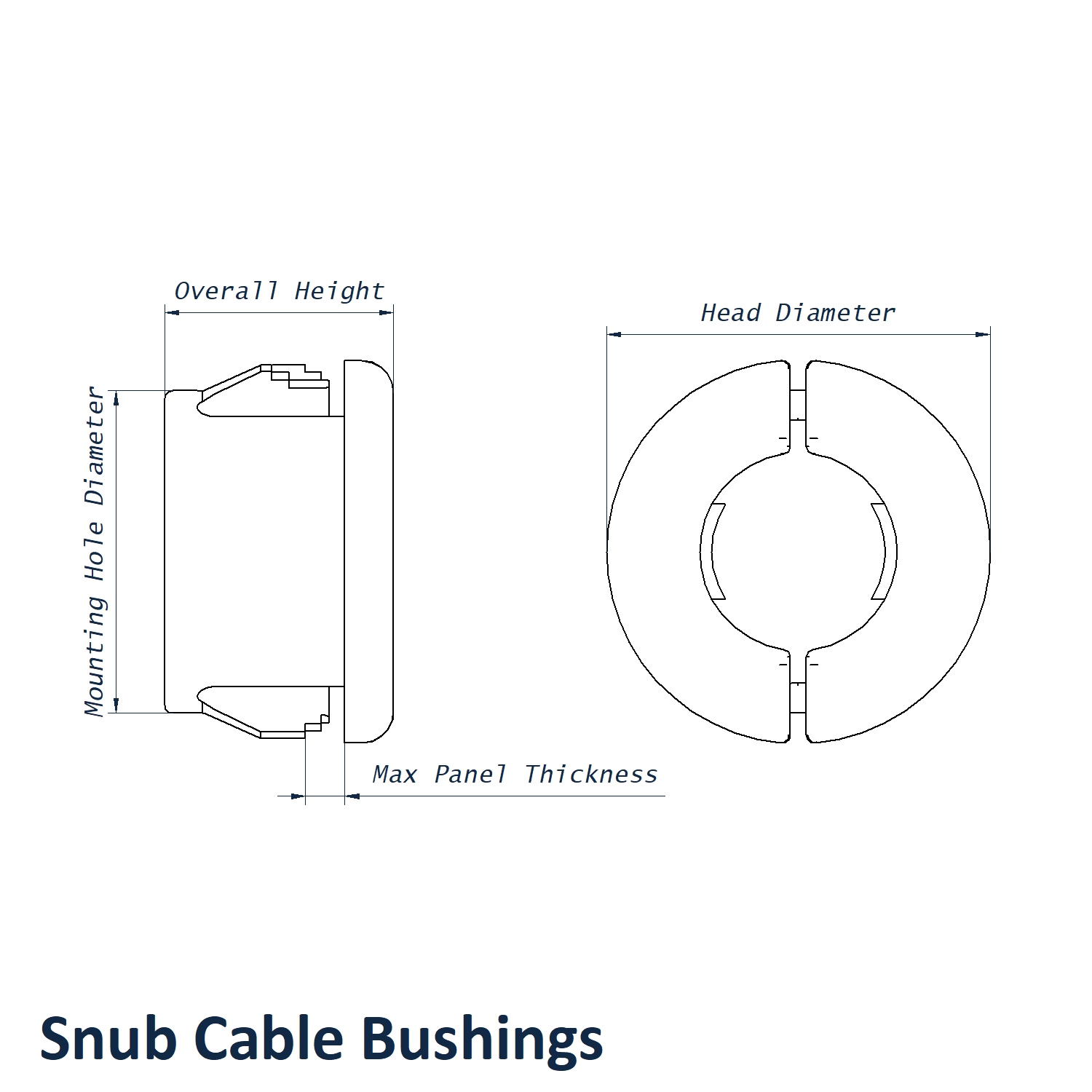

11.1mm Black Snub Cable Bushing Dimensions
- Mounting Hole Diameter: 11.1mm
- Approx. Cable Diameter: 4.8mm
- Head Diameter: 11.9mm
- Overall Height: 11.2mm
- Thickness: 3.2mm
- Material: Nylon
- Colour: Black
Cable Protection and Strain Relief
This 11.1mm cable strain relief bushing is designed for panel-mounted cable protection where the cable needs to be enclosed and held more securely than with a plain pass-through bush. The snap-in construction reduces fitting time while the split body helps keep the cable aligned through the opening.
These bushes are designed for cable insulation and strain relief duties, with the range page listing UL and CSA component recognition for the product family. Always check the specific dimensions against your panel hole and cable diameter before ordering.
View our full Snub Cable Bushings range.
Product Support and Trade Orders
For help checking mounting hole size, cable diameter or suitability for repeated panel assembly, speak with the Vital Parts team on 01233 713581. We can help with product guidance, samples where available and support for repeat trade requirements.
