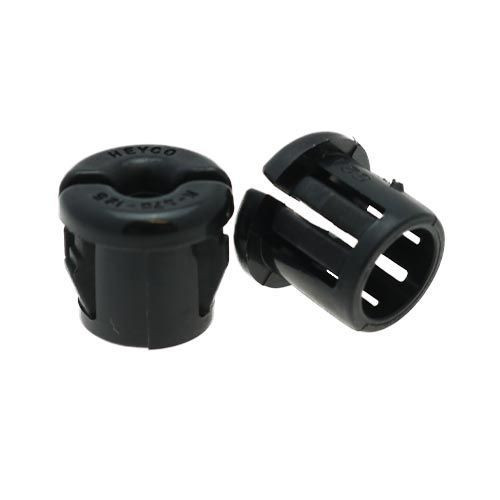

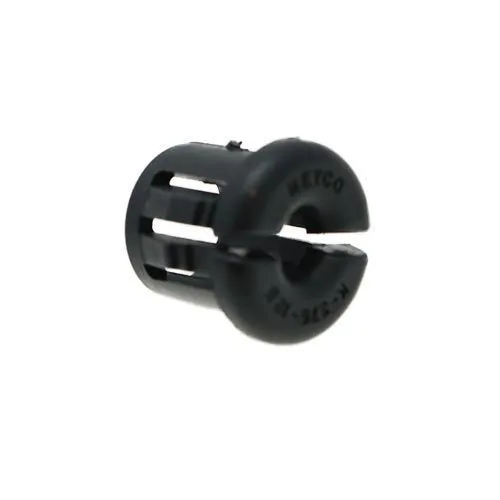

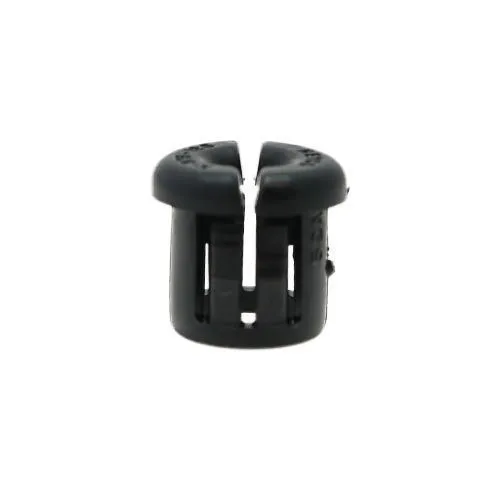

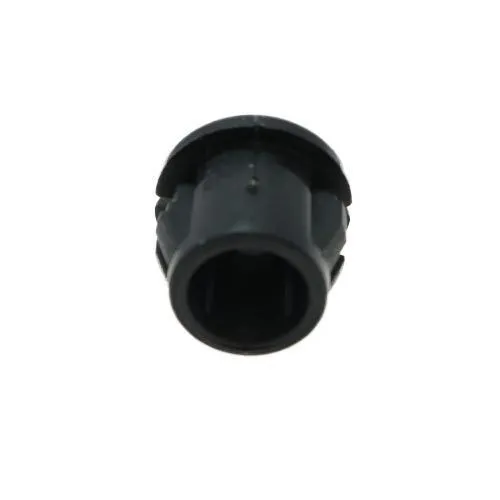

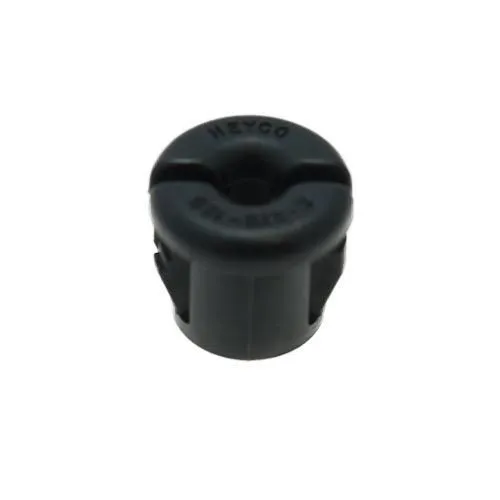

12.7mm Snub Bushing - 14.2mm Head (6.4mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.34 | £0.41 |
| 250 - 499 | £0.28 | £0.34 |
| 500 - 999 | £0.23 | £0.28 |
| 1000 - 2499 | £0.17 | £0.21 |
| 2500 - 4999 | £0.15 | £0.18 |
| 5000 + | £0.12 | £0.15 |
Product Specification
| Mounting Hole Diameter | 12.7mm |
| Approx. Cable Diameter | 6.4mm |
| Thickness | 3.2mm |
| Head Diameter | 14.2mm |
| Overall Height | 11.2mm |
Frequently Bought Together
Total Price: £0.00
12.7mm Black Snub Cable Bushing | 6.4mm Cable Diameter | Nylon
Manufactured for 12.7mm mounting holes, this snub cable bush provides cable insulation and light strain relief in one snap-in component. The design is suited to approximate 6.4mm cable runs where the cable needs to be held more firmly than with a plain open grommet or simple panel bush.
The snub design adds a light cable clamp effect while still retaining the benefits of a snap fit cable bushing. It can help reduce cable scuffing, improve insulation at the entry point and support repeatable fitting across production line installations.
What Are Snub Cable Bushings?
Snub cable bushes sit between standard snap fit bushes and dedicated strain relief parts. Their hinged or closing body captures the cable while the external locking fingers secure the bushing into the panel aperture.
Common Applications
- Machine control panel apertures
- Wiring loom pass-through points
- Automation cabinet cable routes
- Protecting cable jackets from sheet metal edges

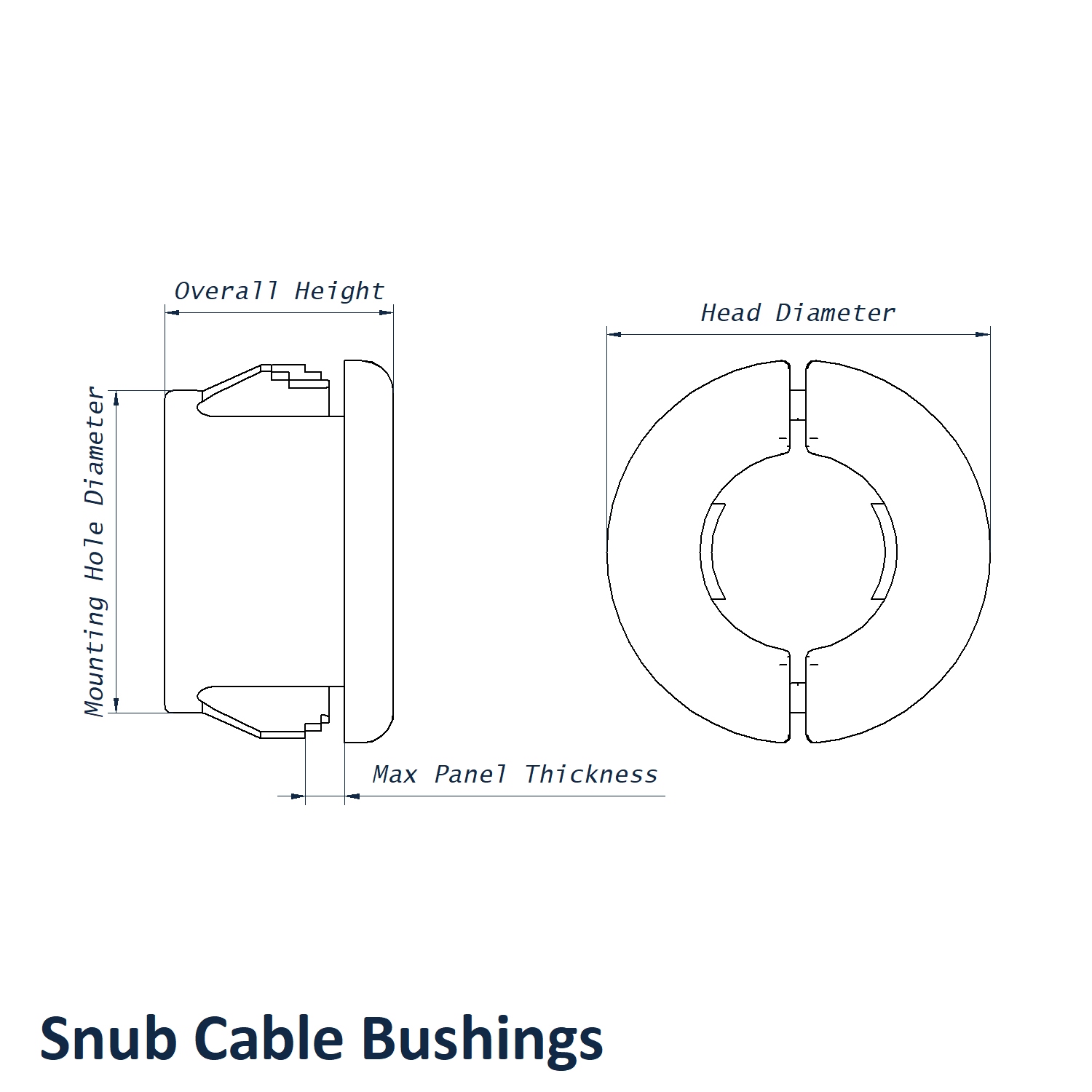

12.7mm Black Snub Cable Bushing Dimensions
- Mounting Hole Diameter: 12.7mm
- Approx. Cable Diameter: 6.4mm
- Head Diameter: 14.2mm
- Overall Height: 11.2mm
- Thickness: 3.2mm
- Material: Nylon
- Colour: Black
Cable Protection and Strain Relief
This 12.7mm snap fit cable bush is designed for panel-mounted cable protection where the cable needs to be enclosed and held more securely than with a plain pass-through bush. The snap-in construction reduces fitting time while the split body helps keep the cable aligned through the opening.
These bushes are designed for cable insulation and strain relief duties, with the range page listing UL and CSA component recognition for the product family. Always check the specific dimensions against your panel hole and cable diameter before ordering.
View our full Snub Cable Bushings range.
Product Support and Trade Orders
For help checking mounting hole size, cable diameter or suitability for repeated panel assembly, speak with the Vital Parts team on 01233 713581. We can help with product guidance, samples where available and support for repeat trade requirements.
