19.1mm Snub Bushing - 23mm Head (12.7mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.53 | £0.63 |
| 250 - 499 | £0.44 | £0.53 |
| 500 - 999 | £0.36 | £0.43 |
| 1000 - 2499 | £0.28 | £0.33 |
| 2500 - 4999 | £0.23 | £0.28 |
| 5000 + | £0.19 | £0.23 |
Product Specification
| Mounting Hole Diameter | 19.1mm |
| Approx. Cable Diameter | 12.7mm |
| Thickness | 3.2mm |
| Head Diameter | 23mm |
| Overall Height | 11.2mm |
Frequently Bought Together
Total Price: £0.00

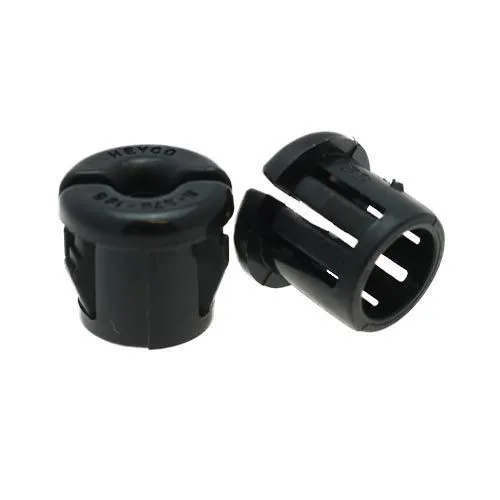

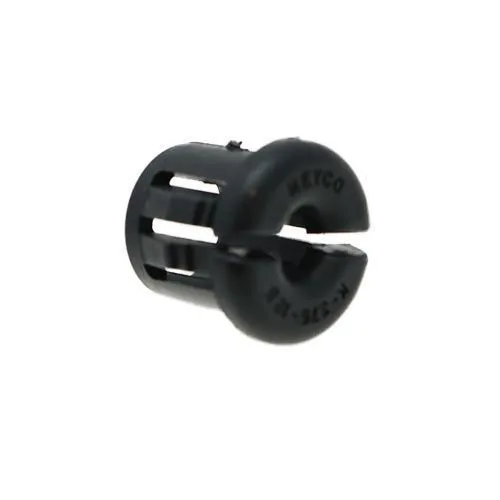

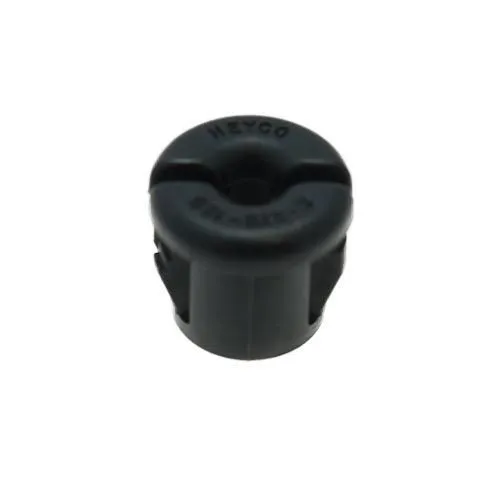

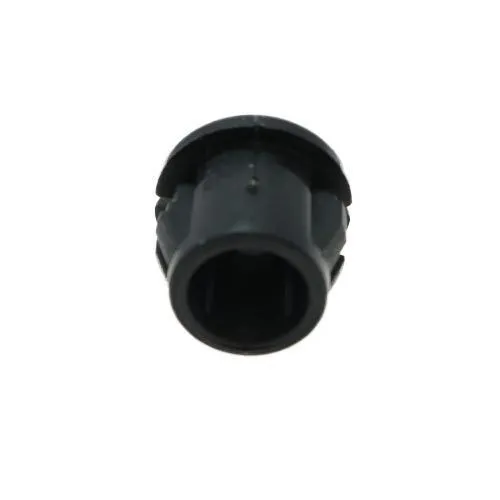

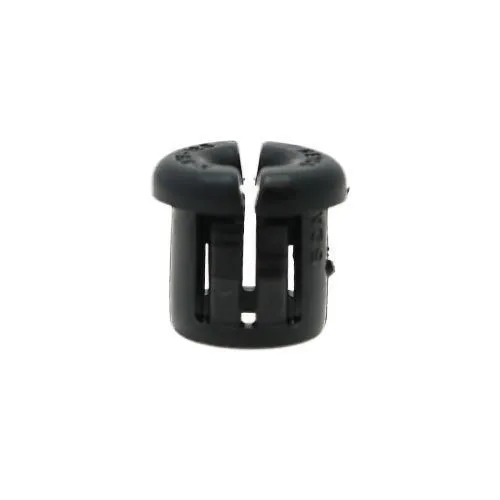

19.1mm Black Snub Cable Bushing | 12.7mm Cable Diameter | Nylon
Frequently specified for wiring looms and equipment panels, this 19.1mm snub cable bushing accepts approximate 12.7mm cable diameters and helps reduce movement at the panel exit. The black finish keeps the installation discreet while the head diameter covers the hole edge cleanly.
Using a UL94V-2 rated Nylon 6/6 material, this snub cable protector is suitable for cable insulation duties where a stronger hold is required than a loose pass-through bush. Its working temperature range makes it suitable for many indoor equipment and enclosure environments.
What Are Snub Cable Bushings?
Snub cable bushings are protective panel fittings for cable entry points. They are commonly used to hold, insulate and guide cables through sheet panels, helping reduce abrasion while giving the assembly a finished appearance.
Common Applications
- Power supply casing cable exits
- Commercial equipment wiring
- Panel-mounted cable support
- Reducing cable movement during servicing

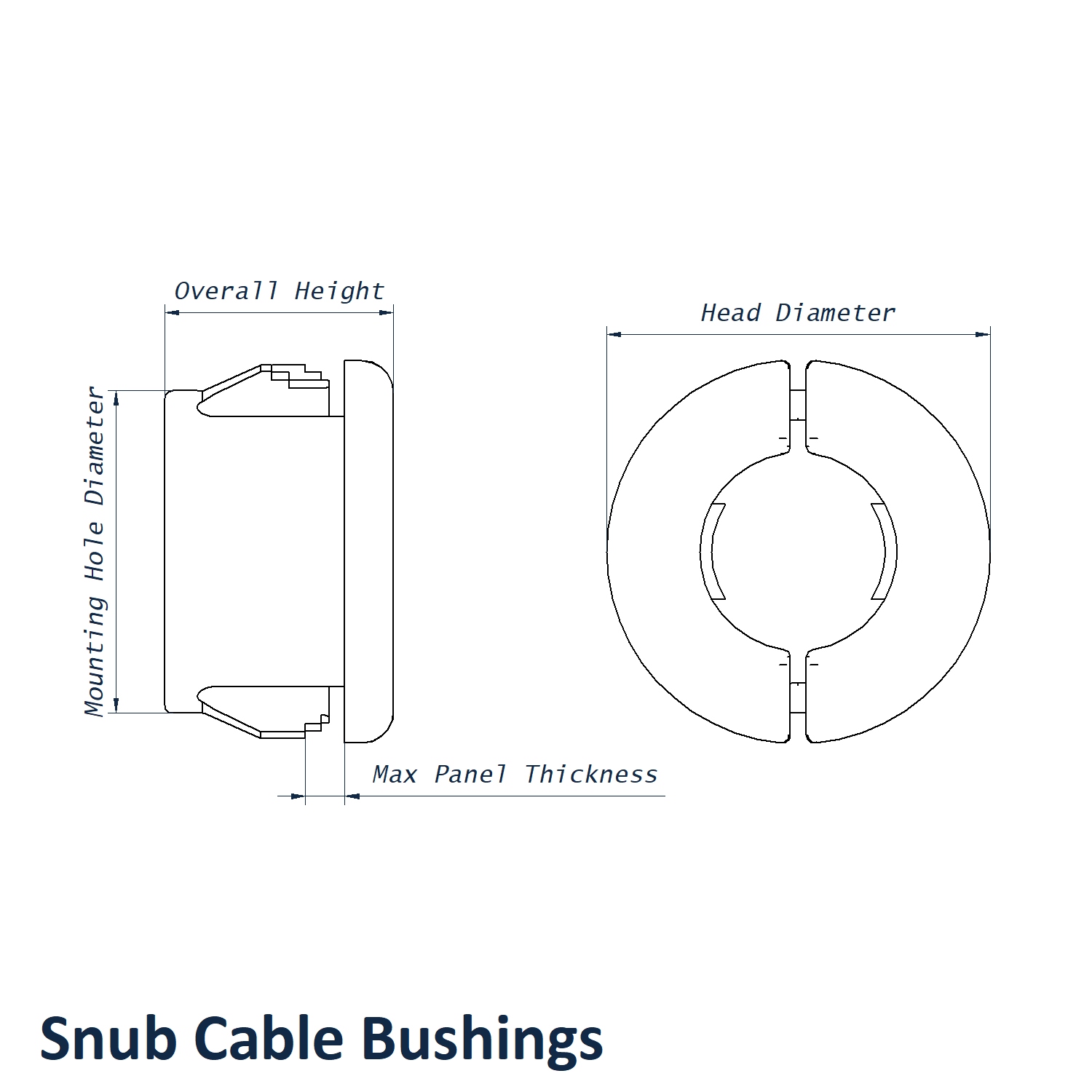

19.1mm Black Snub Cable Bushing Dimensions
- Mounting Hole Diameter: 19.1mm
- Approx. Cable Diameter: 12.7mm
- Head Diameter: 23mm
- Overall Height: 11.2mm
- Thickness: 3.2mm
- Material: Nylon
- Colour: Black
Cable Protection and Strain Relief
This 19.1mm black cable bushing is designed for panel-mounted cable protection where the cable needs to be enclosed and held more securely than with a plain pass-through bush. The snap-in construction reduces fitting time while the split body helps keep the cable aligned through the opening.
These bushes are designed for cable insulation and strain relief duties, with the range page listing UL and CSA component recognition for the product family. Always check the specific dimensions against your panel hole and cable diameter before ordering.
View our full Snub Cable Bushings range.
Product Support and Trade Orders
For help checking mounting hole size, cable diameter or suitability for repeated panel assembly, speak with the Vital Parts team on 01233 713581. We can help with product guidance, samples where available and support for repeat trade requirements.
