9.5mm Snub Bushing - 11.7mm Head (3.2mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.32 | £0.38 |
| 250 - 499 | £0.27 | £0.32 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 - 2499 | £0.17 | £0.20 |
| 2500 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.12 | £0.14 |
Product Specification
| Mounting Hole Diameter | 9.5mm |
| Approx. Cable Diameter | 3.2mm |
| Thickness | 3.2mm |
| Head Diameter | 11.7mm |
| Overall Height | 10.7mm |
Frequently Bought Together
Total Price: £0.00

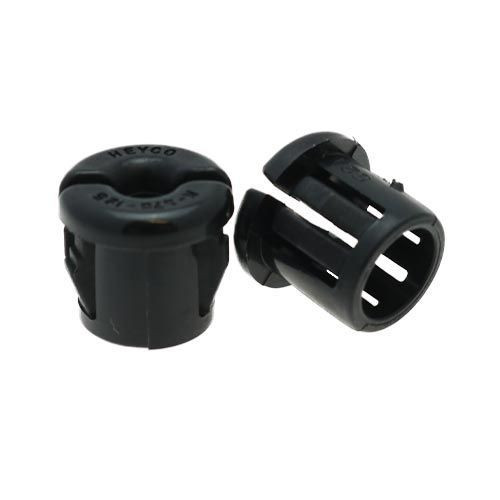

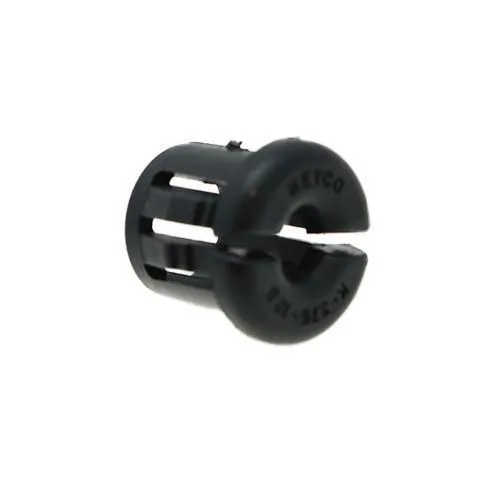

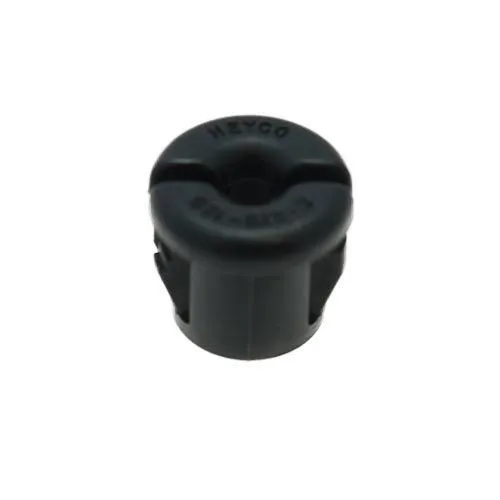

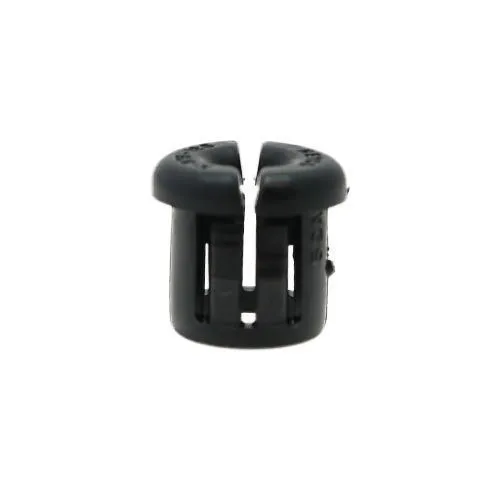

9.5mm Black Snub Cable Bushing | 3.2mm Cable Diameter | Nylon
Designed for 9.5mm panel holes, this black snub cable bushing supports cables of approximately 3.2mm while adding a compact strain relief point at the panel entry. The split body closes around the cable before snapping into position, making it a practical choice where standard snap fit bushes do not provide enough cable grip.
The Nylon body is suitable for panels up to 3.2mm thick and includes multiple locking steps to improve fit across the defined panel range. This makes the bushing useful for compact OEM equipment, where a secure cable route and cleaner panel finish are both required.
What Are Snub Cable Bushings?
Snub cable bushings are split snap-in bushes that close around a cable and then lock into a panel hole. They combine cable edge protection with light strain relief, helping to insulate the cable and keep it positioned as it passes through a chassis, enclosure or equipment panel.
Common Applications
- Cable entry points in compact control boxes
- Small appliance wiring panels
- Low-voltage equipment housings
- Light cable strain relief in OEM assemblies
9.5mm Black Snub Cable Bushing Dimensions
- Mounting Hole Diameter: 9.5mm
- Approx. Cable Diameter: 3.2mm
- Head Diameter: 11.7mm
- Overall Height: 10.7mm
- Thickness: 3.2mm
- Material: Nylon
- Colour: Black
Cable Protection and Strain Relief
This 9.5mm snub cable bushing is designed for panel-mounted cable protection where the cable needs to be enclosed and held more securely than with a plain pass-through bush. The snap-in construction reduces fitting time while the split body helps keep the cable aligned through the opening.
These bushes are designed for cable insulation and strain relief duties, with the range page listing UL and CSA component recognition for the product family. Always check the specific dimensions against your panel hole and cable diameter before ordering.
View our full Snub Cable Bushings range.
Product Support and Trade Orders
For help checking mounting hole size, cable diameter or suitability for repeated panel assembly, speak with the Vital Parts team on 01233 713581. We can help with product guidance, samples where available and support for repeat trade requirements.
