Snub Bushing - SFB158
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £0.46 | £0.55 |
| 2 - 249 | £0.38 | £0.46 |
| 250 - 499 | £0.33 | £0.40 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 - 2498 | £0.20 | £0.24 |
| 2499 - 4999 | £0.17 | £0.20 |
| 5000 + | £0.14 | £0.17 |
Product Stock
| Product Specifications | SFB158 |
|---|---|
| Mounting Hole Diameter | 15.9mm |
| Approx. Cable Diameter | 9.5mm |
| Thickness | 3.2mm |
| Head Diameter | 18.5mm |
| Overall Height | 11.2mm |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

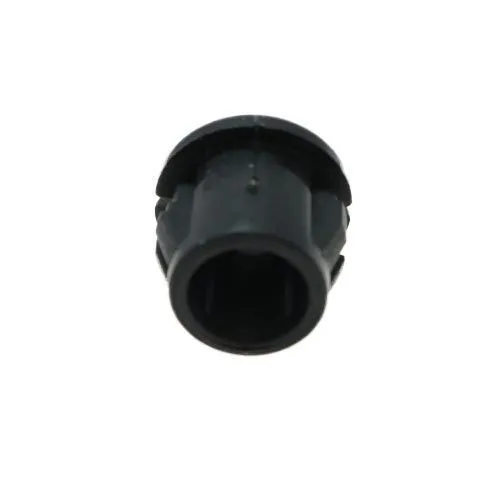

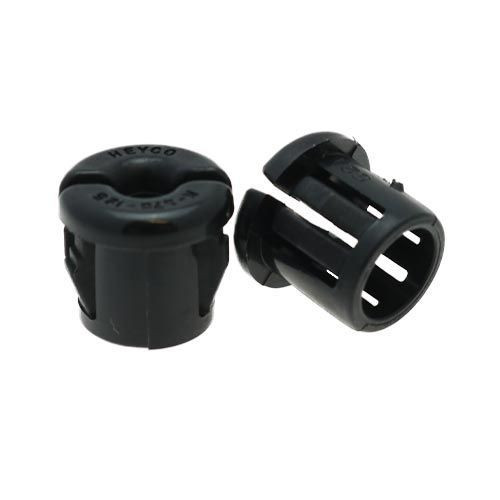

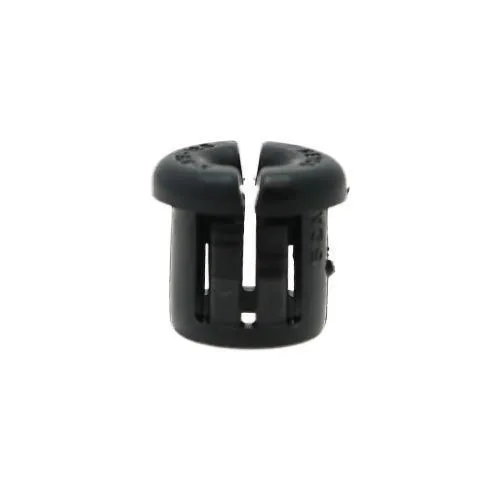

Snub Cable Bushings - 15.9mm Mounting Hole Diameter - 9.5mm Cable Diameter - 18.5mm Head Diameter - 11.2mm Height - 3.2mm Thickness - Nylon | Vital Parts - SFB158
Our Snub Cable Bushings are essential components for providing strain relief and insulation where cables pass through panel holes. Designed for ease of installation and durability, these bushings are widely used in electrical panels, control boxes, and industrial enclosures to protect wiring and reduce mechanical stress on cables.
What are Snub Cable Bushings?
Snub Cable Bushings are snap-fit components manufactured from UL94V-2 rated Nylon 6/6. They are engineered with a split-body design that encloses the cable and holds it securely in place. The snap-together function simplifies installation while offering light strain relief and cable insulation. Their locking fingers ensure a secure fit into panel holes without the need for fixings or adhesives, making them ideal for fast-paced manufacturing and installation environments.
Key Features:
- Manufactured from flame-retardant Nylon 6/6 (UL94V-2 rated)
- Split-body design encloses and grips the cable
- Snaps into panel hole - no tools, adhesives, or fixings required
- Provides light strain relief to reduce cable wear and fatigue
- Locking finger mechanism for firm panel retention
- Operating temperature range of -18°C to 105°C
- Available for hole diameters from 9.5mm to 22.2mm
- Supports panel thicknesses up to 3.2mm
Key Applications and Industries
Snub Cable Bushings are commonly used throughout UK industries such as electrical engineering, industrial automation, control cabinet manufacturing, white goods production, telecoms, and lighting systems. These bushings provide essential protection and cable management in both commercial and light industrial environments.

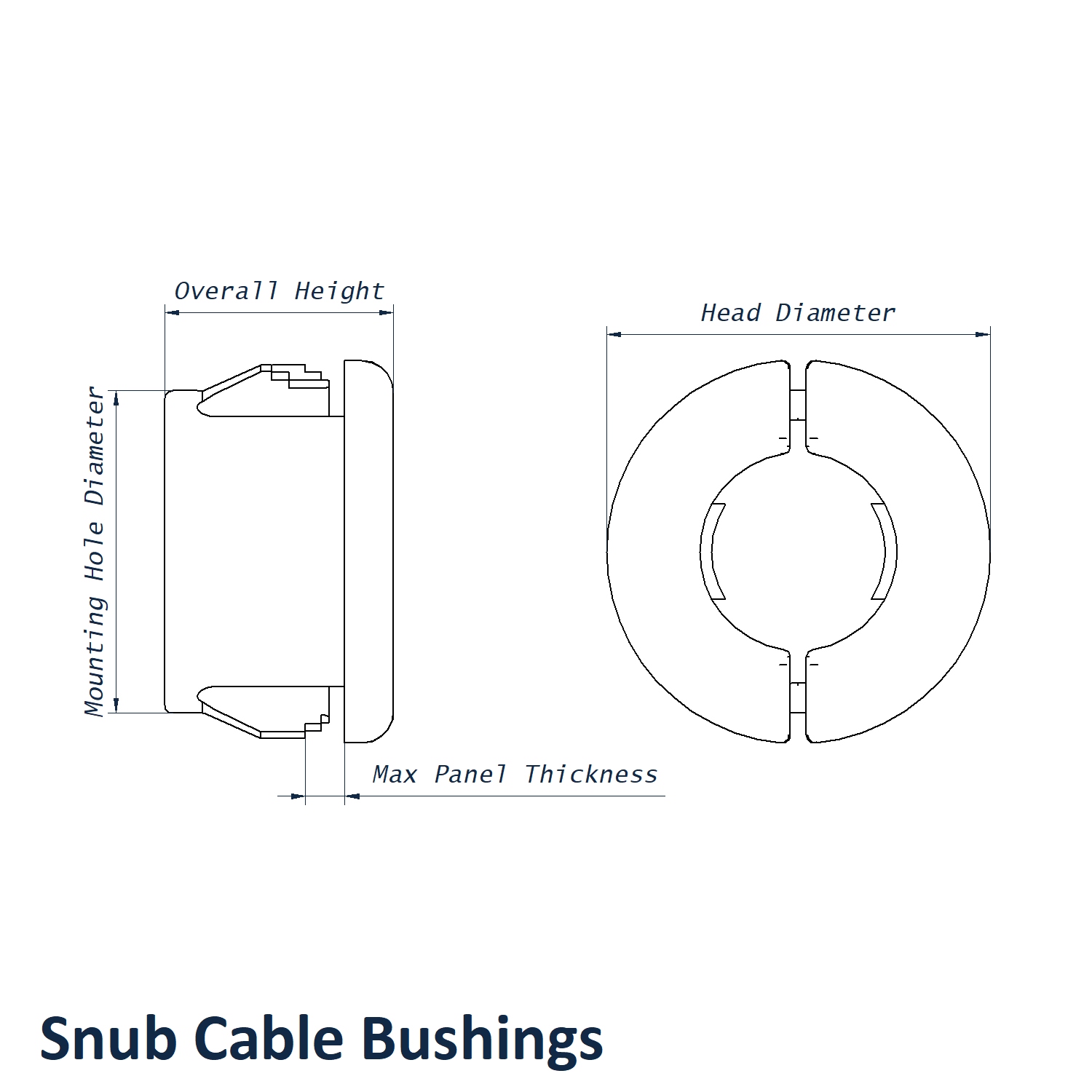

Technical Specifications
- Mounting Hole Diameter : 15.9mm
- Cable Diameter : 9.5mm
- Head Diameter : 18.5mm
- Overall Height : 11.2mm
- Thickness : 3.2mm
- Material: UL94V-2 Rated Nylon 6/6
- Temperature Resistance: -18°C to 105°C
- Panel Thickness Compatibility: Up to 3.2mm
- Certifications: UL (File E15331), CSA (File 8919)
- Colour: Black (standard)
Our Snub Cable Bushings are ideal for:
- Protecting cables when routed through sharp or rough panel holes
- Providing light strain relief to prevent cable fatigue
- Ensuring a clean, professional cable entry point in panels
Benefits:
- Quick and tool-free installation for production efficiency
- Reduces stress on cables at entry points
- Improves safety by preventing abrasion and electrical shorts
- Helps maintain a tidy and organised cabling system
- Suitable for a wide range of electrical and electronic applications
