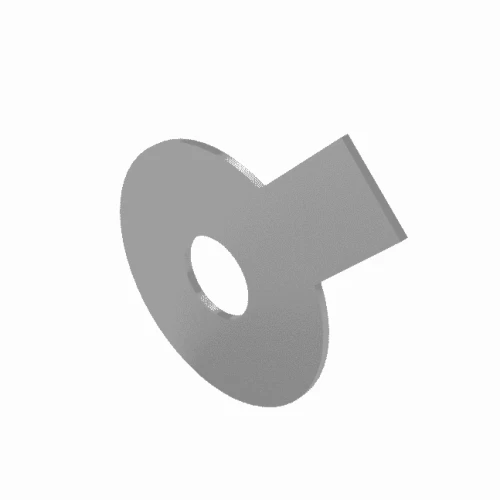

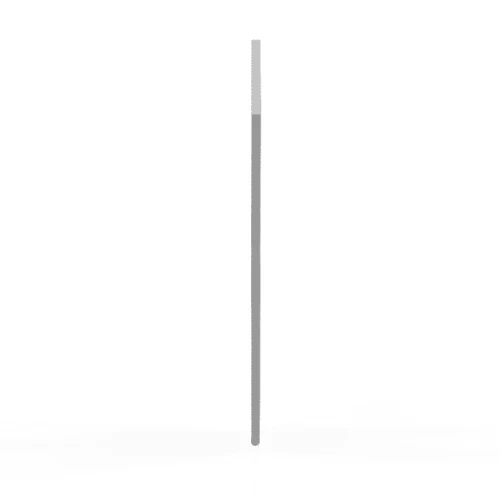

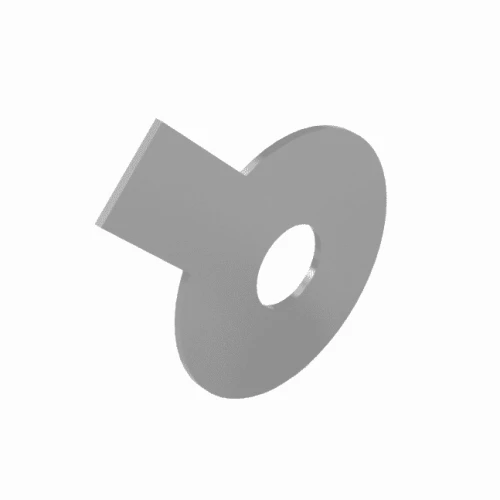

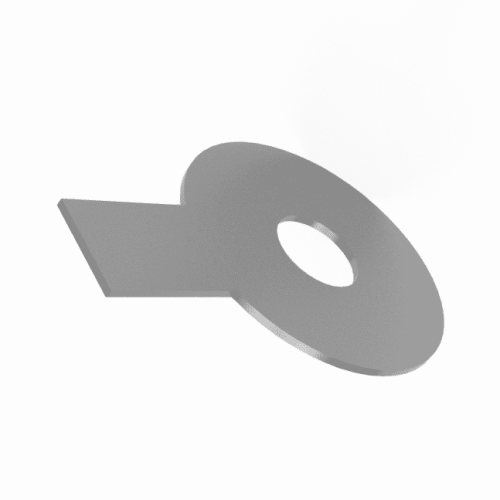

M10 x 10.5mm Locking Tab Washers (22mm Long Tab) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 999 | £0.07 | £0.08 |
| 1000 - 5999 | £0.06 | £0.07 |
| 6000 + | £0.05 | £0.06 |
£0.10 / each
.png)
Product Specification
| Size | M10 |
| Internal Diameter | 10.5mm |
| Outside Diameter | 26mm |
| Thickness | 0.75mm |
| Tab Width | 10mm |
| Tab Length | 22mm |
| Standard | DIN 93 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 10.5mm DIN 93 Long Tab Washer | A2 Stainless Steel
Designed for manufacturing equipment and fabricated frames, this M10 DIN 93 Long Tab Washer has a 10.5mm internal diameter, 26mm outside diameter and 22mm long tab. Manufactured from A2 Stainless Steel, it provides a mechanical anti-rotation feature for compatible threaded fasteners by allowing the tab to be bent or located against an assembly feature.
What Are DIN 93 Long Tab Washers?
DIN 93 Long Tab Washers are locking washers designed to prevent rotation of nuts, bolts or screws by using a protruding tab as a physical stop. After the washer is positioned, the long tab is bent or located against a suitable assembly feature so the fastener cannot rotate freely.
Common Applications
- Industrial Machinery: Helps lock nuts or bolts in position on equipment exposed to vibration and repeated mechanical movement.
- Electrical Equipment: Secures compatible threaded fasteners in control panels, switchgear and equipment housings.
- Construction Assemblies: Provides a mechanical locking washer for compatible structural and fabricated metalwork connections.
- Marine Equipment: Provides an anti-rotation washer for suitable marine and coastal assemblies when the appropriate stainless steel grade is selected.

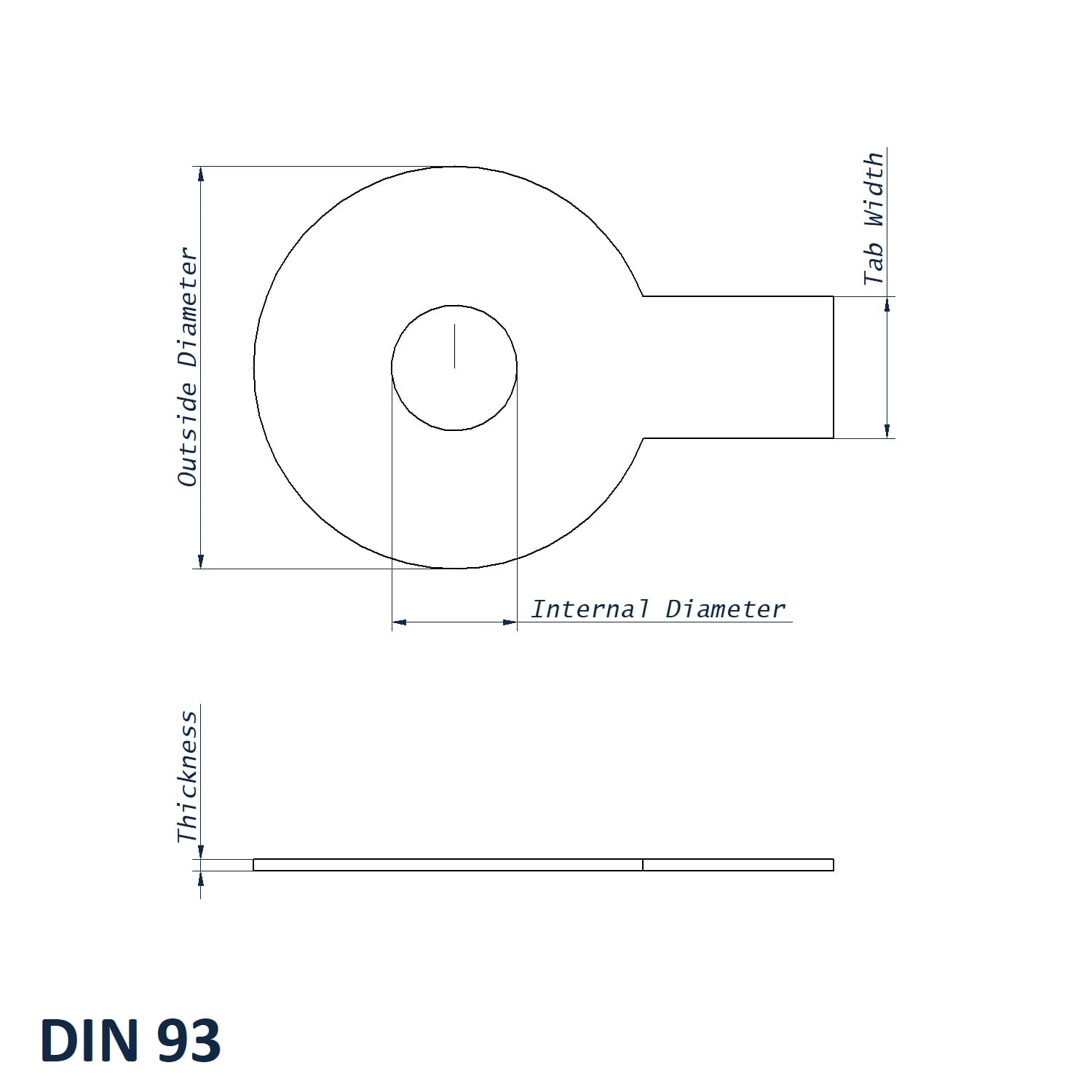

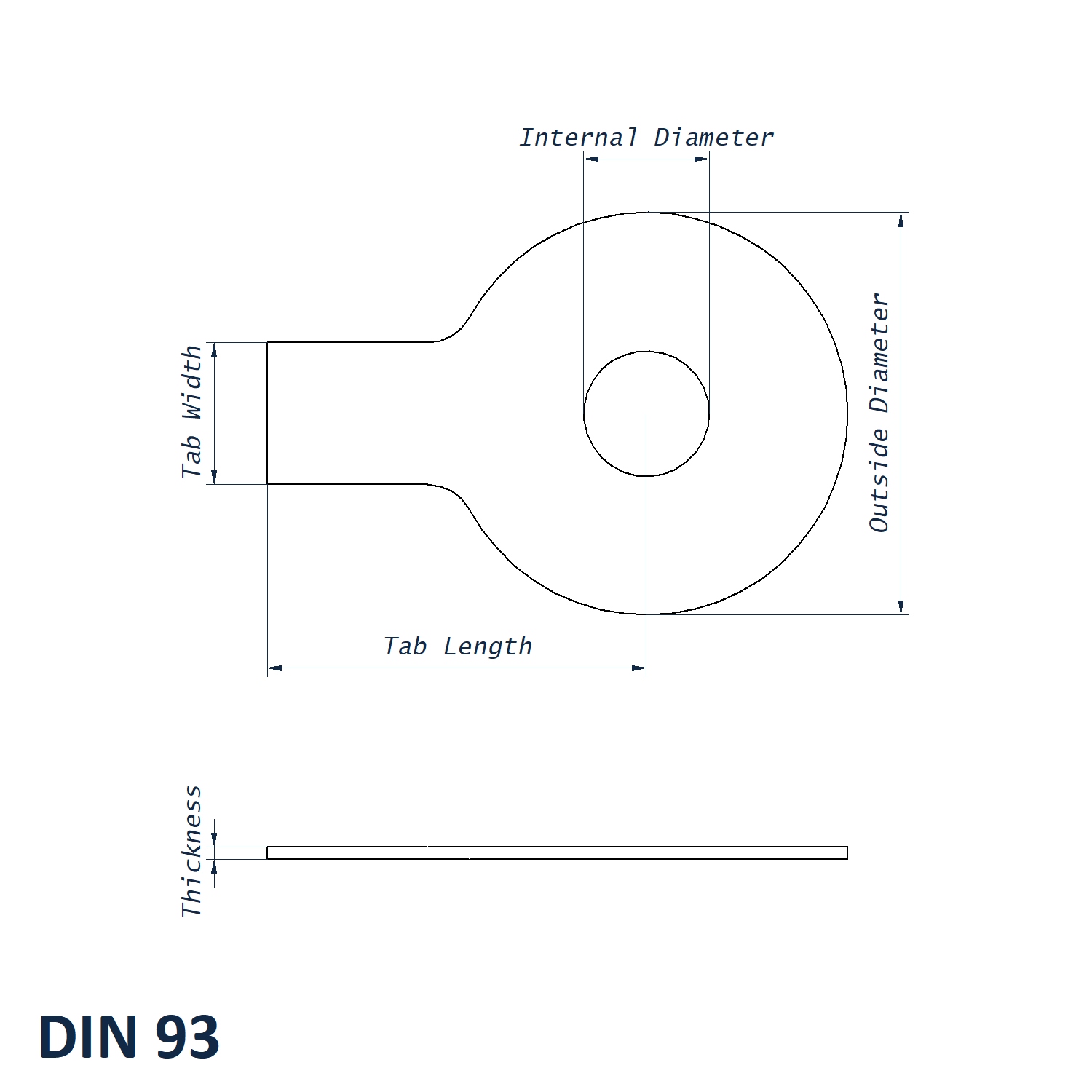

M10 DIN 93 Long Tab Washer Dimensions
- Size: M10
- Internal Diameter: 10.5mm
- Outside Diameter: 26mm
- Thickness: 0.75mm
- Tab Width: 10mm
- Tab Length: 22mm
- Material: A2 Stainless Steel
- Standard: DIN 93
Key Benefits
- M10 size with 10.5mm internal diameter matches the uploaded SKU specification.
- 10mm tab width and 22mm tab length provide the mechanical locking feature.
- Long tab can be bent or located against a suitable assembly feature to resist fastener rotation.
- A2 Stainless Steel provides dependable corrosion resistance for general industrial, engineering and equipment assemblies.
View the full DIN 93 Long Tab Washer range to compare sizes from M4 to M39 in A2 and A4 Stainless Steel. For help selecting the correct washer dimensions or material grade, contact the Vital Parts technical sales team on 01233 713581.
