M12 x 13mm Locking Tab Washers (28mm Long Tab) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.15 |
| 100 - 999 | £0.12 | £0.14 |
| 1000 - 3999 | £0.10 | £0.12 |
| 4000 + | £0.08 | £0.10 |
£0.15 / each
.png)
Product Specification
| Size | M12 |
| Internal Diameter | 13.0mm |
| Outside Diameter | 30mm |
| Thickness | 1.00mm |
| Tab Width | 12mm |
| Tab Length | 28mm |
| Standard | DIN 93 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

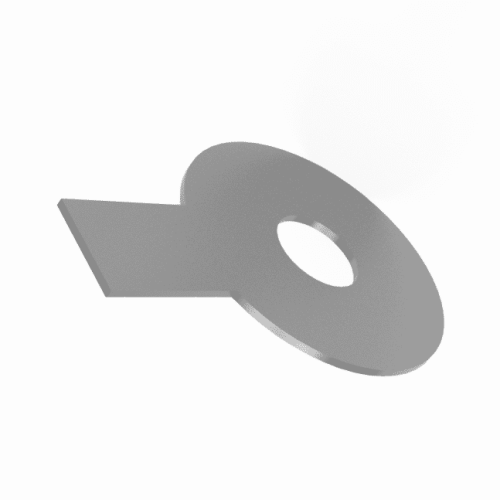

M12 x 13.0mm DIN 93 Long Tab Washer | A2 Stainless Steel
Manufactured for manufacturing equipment and fabricated frames, this M12 DIN 93 Locking Tab Washer uses A2 Stainless Steel with a 1.00mm washer thickness and 12mm tab width. Its long tab creates a positive mechanical restraint that helps hold nuts, bolts or machine screws against rotational movement.
What Are DIN 93 Long Tab Washers?
Long Tab Washers provide a mechanical anti-loosening method rather than relying on friction alone. The washer sits beneath the threaded fastener while the extended tab engages with the surrounding assembly to obstruct unwanted turning caused by vibration, shock or applied torque.
Common Applications
- Electrical Equipment: Secures compatible threaded fasteners in control panels, switchgear and equipment housings.
- Rotating Equipment: Helps prevent unwanted fastener movement in suitable machinery where rotational forces or vibration are present.
- Manufacturing Equipment: Supports secure fastening on jigs, frames, guards and production machinery.
- Industrial Machinery: Helps lock nuts or bolts in position on equipment exposed to vibration and repeated mechanical movement.

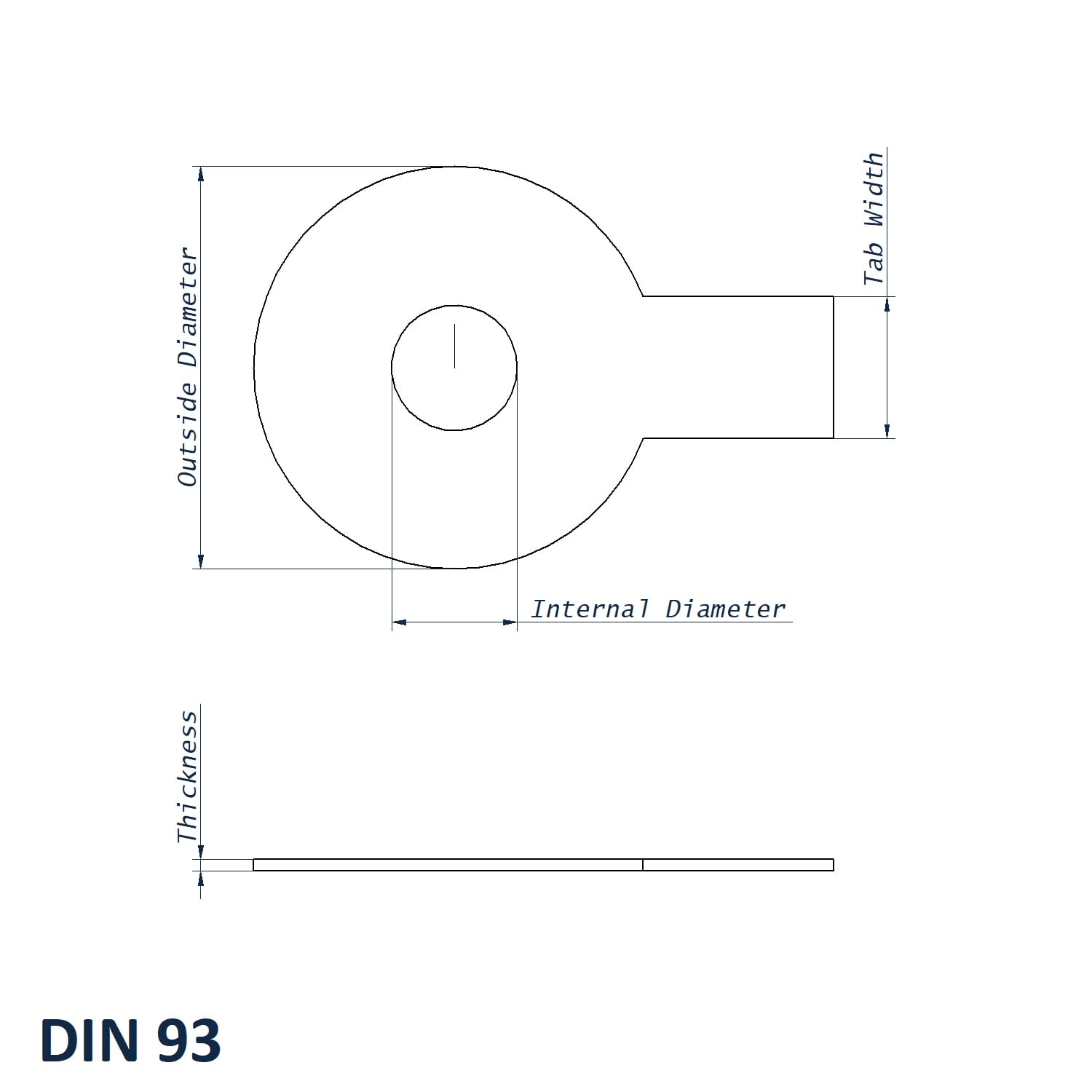

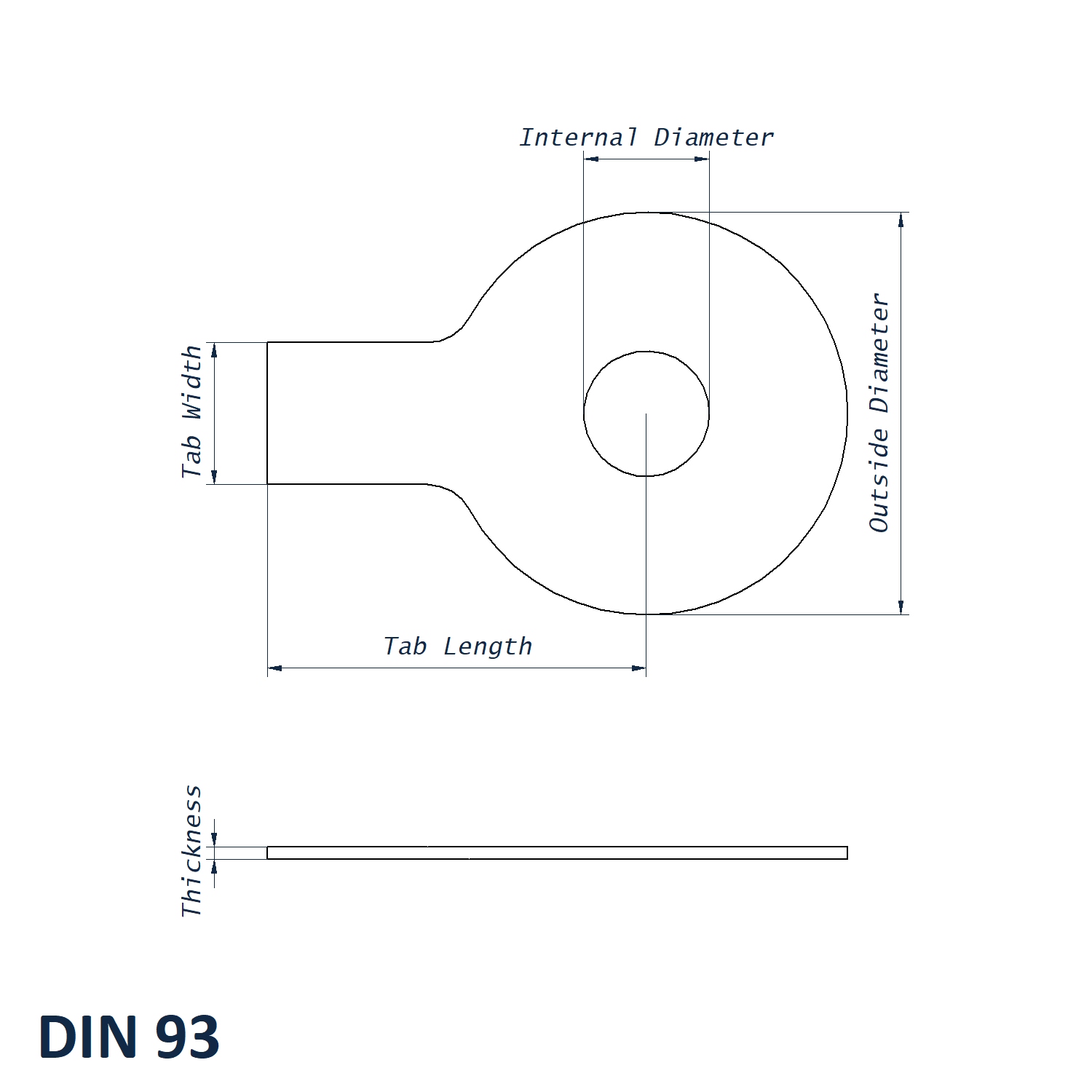

M12 DIN 93 Long Tab Washer Dimensions
- Size: M12
- Internal Diameter: 13.0mm
- Outside Diameter: 30mm
- Thickness: 1.00mm
- Tab Width: 12mm
- Tab Length: 28mm
- Material: A2 Stainless Steel
- Standard: DIN 93
Key Benefits
- 1.00mm thickness matches the DIN 93 washer dimensions for this size.
- Long tab can be bent or located against a suitable assembly feature to resist fastener rotation.
- A2 Stainless Steel provides dependable corrosion resistance for general industrial, engineering and equipment assemblies.
- Available across the wider range in A2 and A4 Stainless Steel from M4 to M39.
Browse the complete DIN 93 Anti-Rotation Washer range for A2 and A4 Stainless Steel options. If you need help matching the washer to your fastener and assembly, call Vital Parts on 01233 713581.
