M6 x 6.4mm Locking Tab Washers (18mm Long Tab) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.08 |
| 100 - 999 | £0.06 | £0.07 |
| 1000 - 7999 | £0.05 | £0.06 |
| 8000 + | £0.04 | £0.05 |
£0.08 / each
.png)
Product Specification
| Size | M6 |
| Internal Diameter | 6.4mm |
| Outside Diameter | 19mm |
| Thickness | 0.50mm |
| Tab Width | 7mm |
| Tab Length | 18mm |
| Standard | DIN 93 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

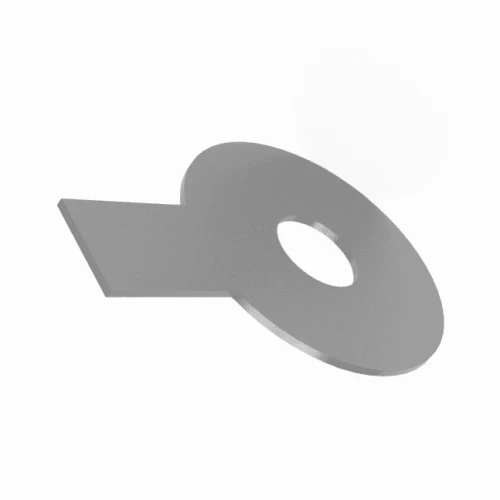

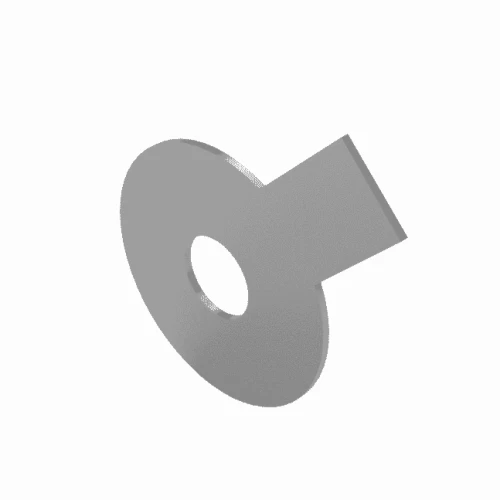

M6 x 6.4mm DIN 93 Long Tab Washer | A2 Stainless Steel
Built for industrial machinery and mechanical assemblies, this M6 DIN 93 Single Tab Washer combines a 6.4mm bore with a 19mm outside diameter and extended 18mm tab. The A2 Stainless Steel construction provides a corrosion-resistant locking washer for compatible threaded components.
What Are DIN 93 Long Tab Washers?
Also known as anti-rotation washers or single tab washers, DIN 93 Long Tab Washers are commonly paired with bolts, machine screws and nuts. Their locking action comes from physically obstructing rotation once the tab is correctly positioned within the assembly.
Common Applications
- Maintenance and Repair: Offers a straightforward replacement locking method for machinery and equipment using DIN 93 washer geometry.
- Marine Equipment: Provides an anti-rotation washer for suitable marine and coastal assemblies when the appropriate stainless steel grade is selected.
- Automotive Assemblies: Provides a positive anti-rotation feature for suitable bolted components used in vehicle and transport equipment.
- Rotating Equipment: Helps prevent unwanted fastener movement in suitable machinery where rotational forces or vibration are present.

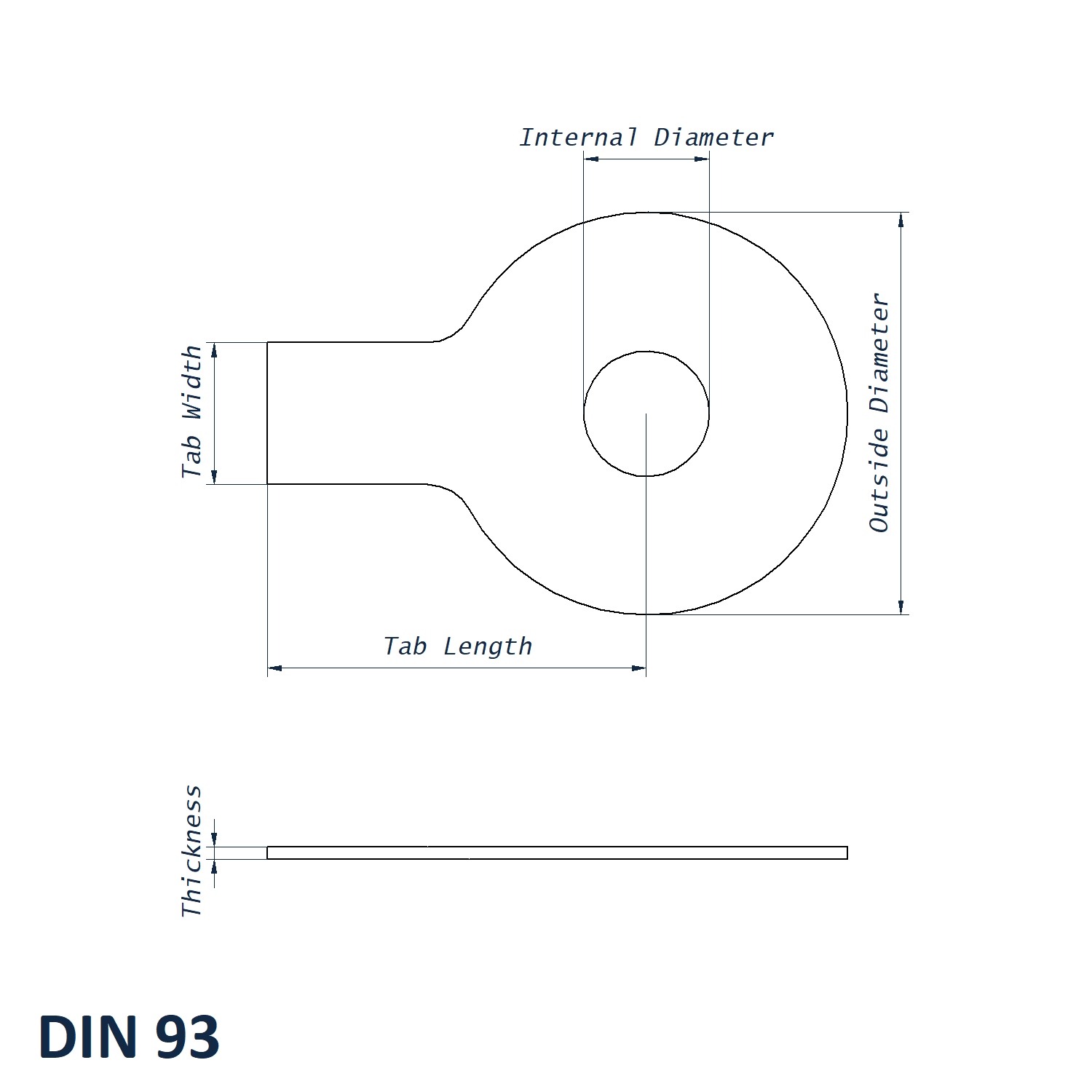

M6 DIN 93 Long Tab Washer Dimensions
- Size: M6
- Internal Diameter: 6.4mm
- Outside Diameter: 19mm
- Thickness: 0.50mm
- Tab Width: 7mm
- Tab Length: 18mm
- Material: A2 Stainless Steel
- Standard: DIN 93
Key Benefits
- M6 size with 6.4mm internal diameter matches the uploaded SKU specification.
- 7mm tab width and 18mm tab length provide the mechanical locking feature.
- Long tab can be bent or located against a suitable assembly feature to resist fastener rotation.
- A2 Stainless Steel provides dependable corrosion resistance for general industrial, engineering and equipment assemblies.
Browse the complete DIN 93 Anti-Rotation Washer range for A2 and A4 Stainless Steel options. If you need help matching the washer to your fastener and assembly, call Vital Parts on 01233 713581.
