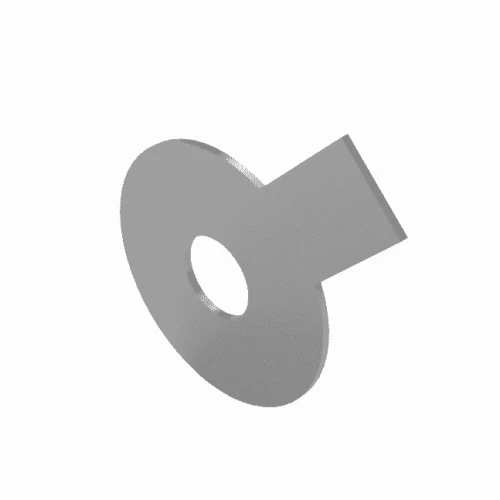

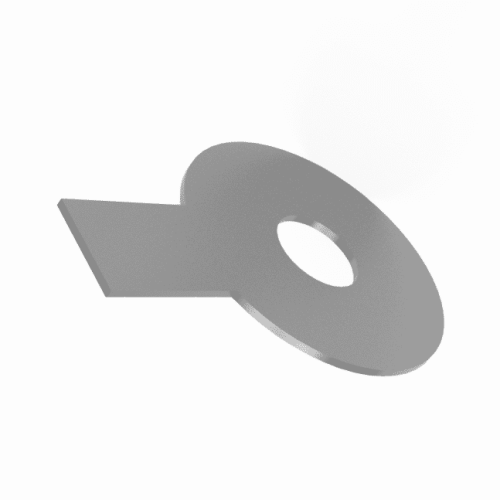

M14 x 15mm Locking Tab Washers (28mm Long Tab) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.14 | £0.17 |
| 100 - 999 | £0.12 | £0.15 |
| 1000 - 3999 | £0.11 | £0.13 |
| 4000 + | £0.08 | £0.10 |
£0.17 / each
.png)
Product Specification
| Size | M14 |
| Internal Diameter | 15.0mm |
| Outside Diameter | 33mm |
| Thickness | 1.00mm |
| Tab Width | 12mm |
| Tab Length | 28mm |
| Standard | DIN 93 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M14 x 15.0mm DIN 93 Long Tab Washer | A2 Stainless Steel
For manufacturing equipment and fabricated frames, this M14 Anti-Rotation Washer provides a DIN 93 long-tab format in A2 Stainless Steel. The 33mm outside diameter and 12mm wide tab provide the physical locking geometry needed to restrain compatible fasteners after installation.
What Are DIN 93 Long Tab Washers?
A DIN 93 Long Tab Washer has a flat washer body with one extended locking tab. This tab can be formed against a suitable face, slot or retaining feature to create a positive anti-rotation restraint in bolted and screwed assemblies.
Common Applications
- Rotating Equipment: Helps prevent unwanted fastener movement in suitable machinery where rotational forces or vibration are present.
- Maintenance and Repair: Offers a straightforward replacement locking method for machinery and equipment using DIN 93 washer geometry.
- Process Equipment: Helps retain compatible fasteners in machinery, pipework supports and industrial processing equipment.
- Electrical Equipment: Secures compatible threaded fasteners in control panels, switchgear and equipment housings.

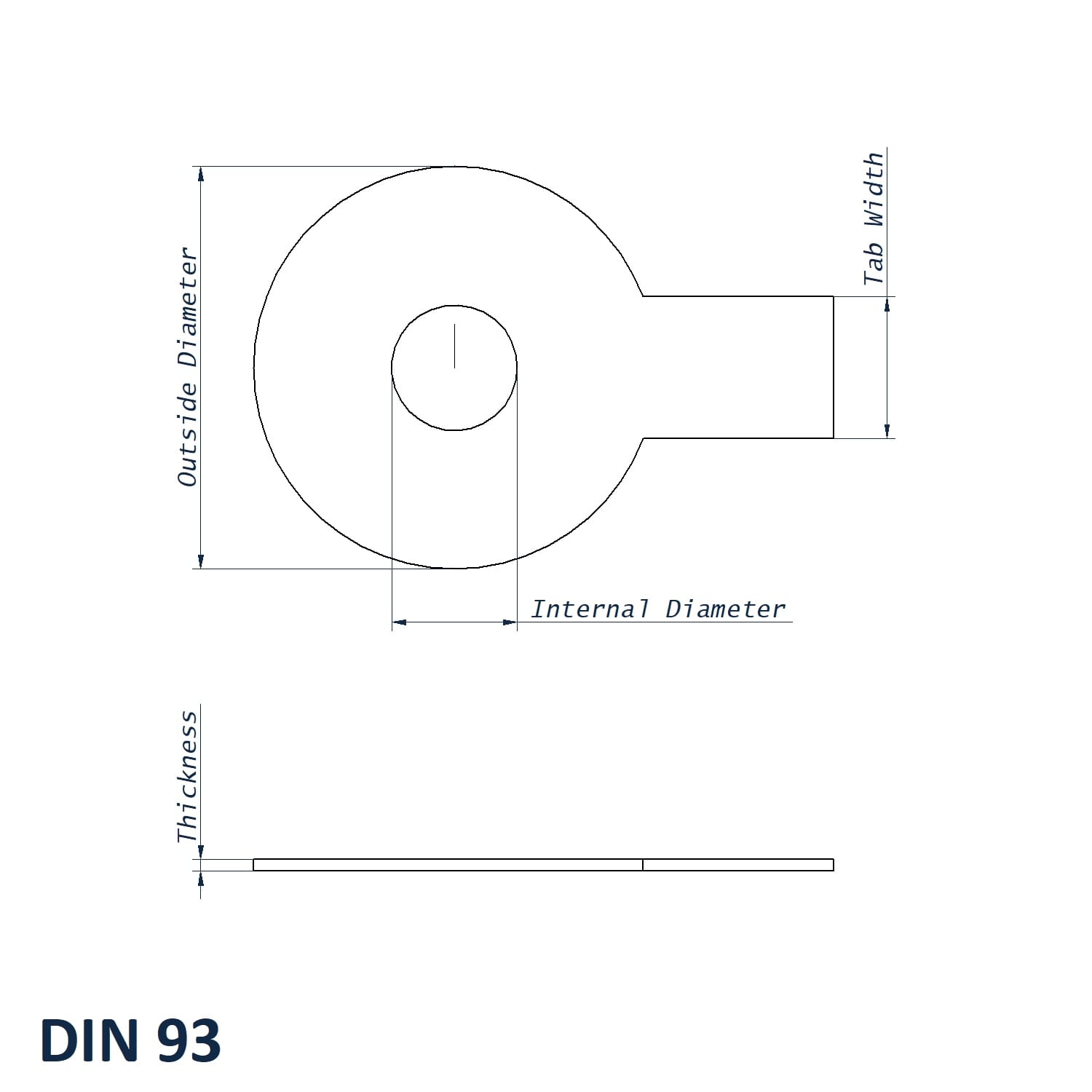

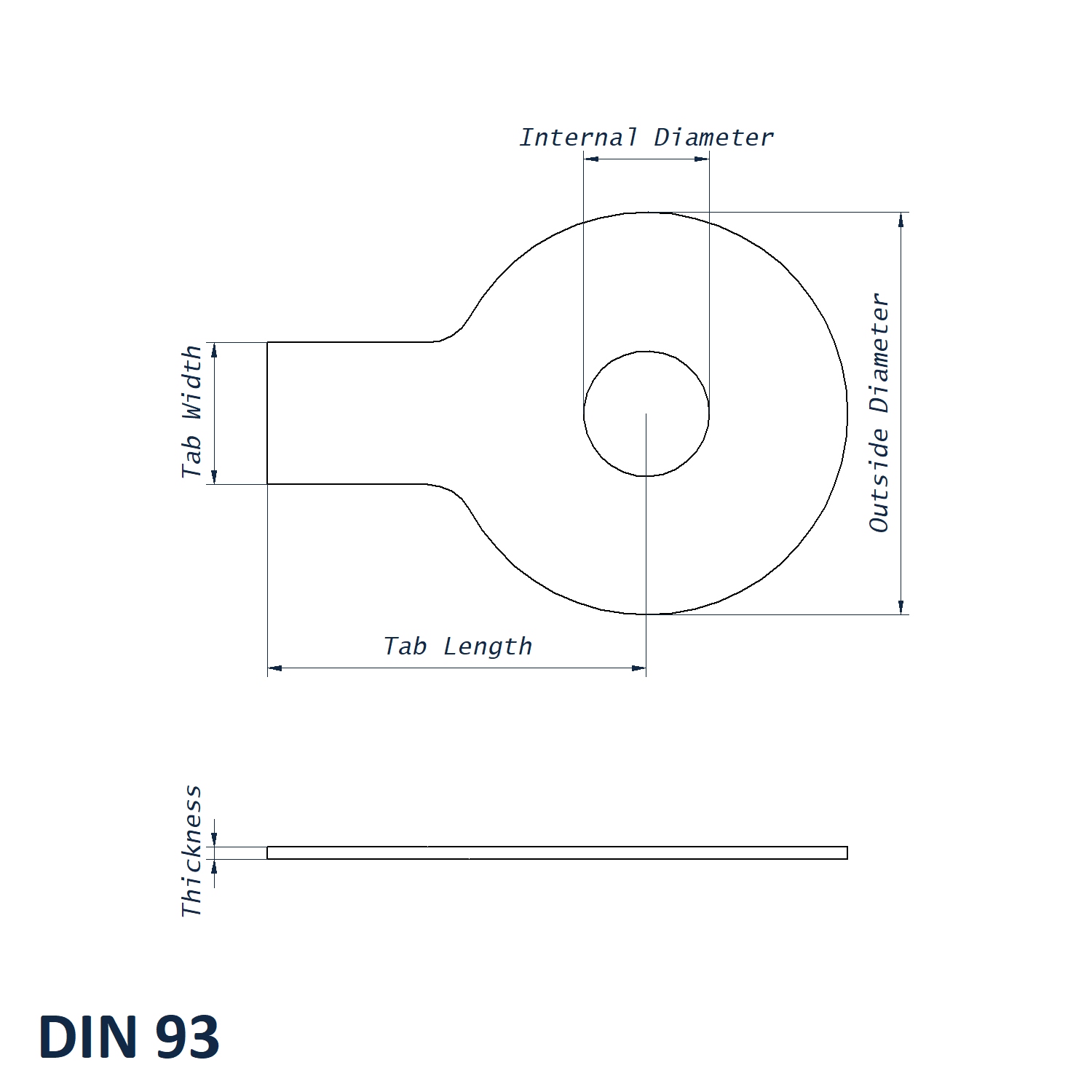

M14 DIN 93 Long Tab Washer Dimensions
- Size: M14
- Internal Diameter: 15.0mm
- Outside Diameter: 33mm
- Thickness: 1.00mm
- Tab Width: 12mm
- Tab Length: 28mm
- Material: A2 Stainless Steel
- Standard: DIN 93
Key Benefits
- DIN 93 manufacture provides a recognised dimensional standard for long tab washers.
- A2 Stainless Steel provides dependable corrosion resistance for general industrial, engineering and equipment assemblies.
- Available across the wider range in A2 and A4 Stainless Steel from M4 to M39.
- 33mm outside diameter provides the main bearing footprint around the fastener.
View the full DIN 93 Long Tab Washer range to compare sizes from M4 to M39 in A2 and A4 Stainless Steel. For help selecting the correct washer dimensions or material grade, contact the Vital Parts technical sales team on 01233 713581.
