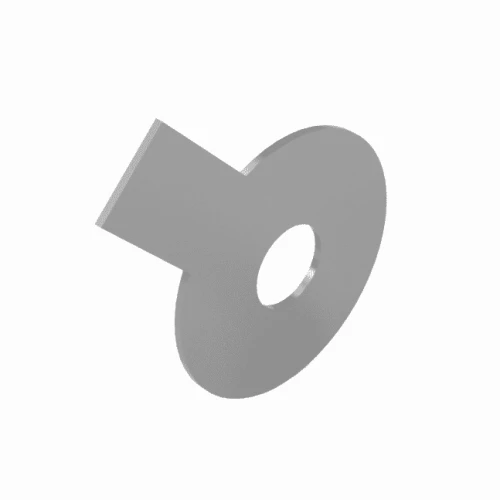

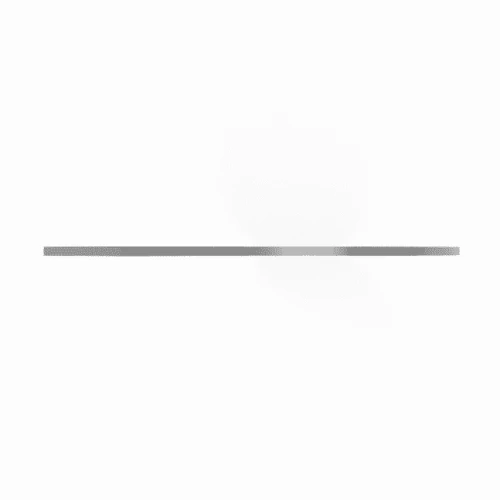

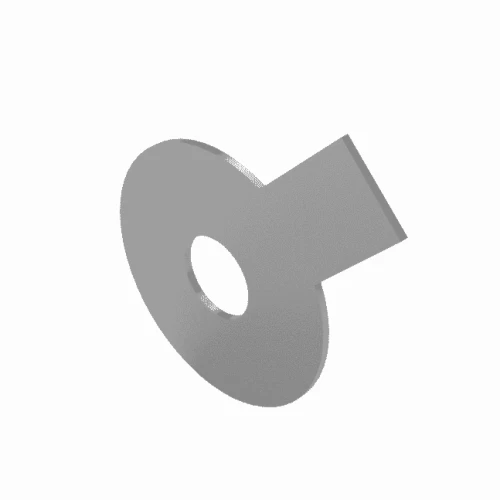

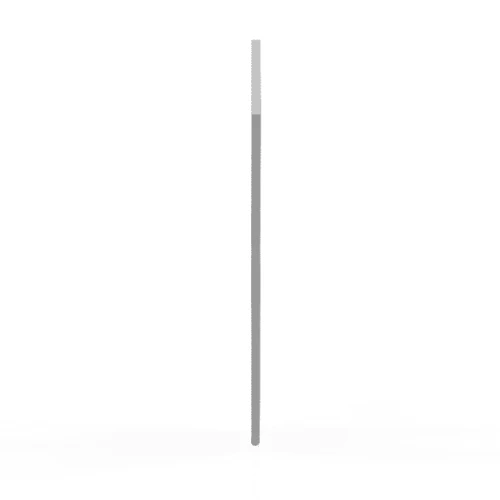

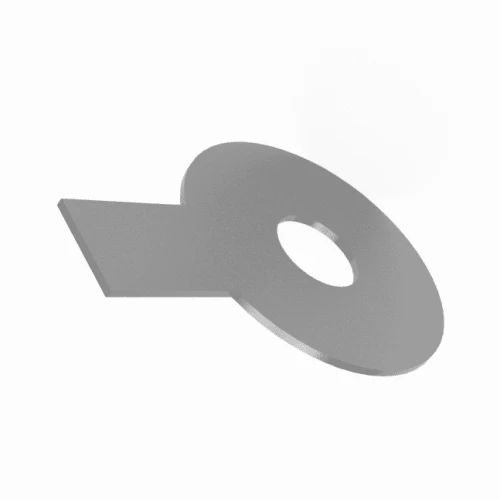

M5 x 5.3mm Locking Tab Washers (16mm Long Tab) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.08 |
| 100 - 999 | £0.05 | £0.06 |
| 1000 - 7999 | £0.04 | £0.05 |
| 8000 + | £0.03 | £0.04 |
£0.08 / each
.png)
Product Specification
| Size | M5 |
| Internal Diameter | 5.3mm |
| Outside Diameter | 17mm |
| Thickness | 0.50mm |
| Tab Width | 6mm |
| Tab Length | 16mm |
| Standard | DIN 93 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M5 x 5.3mm DIN 93 Long Tab Washer | A2 Stainless Steel
For electrical panels and control equipment, this M5 Anti-Rotation Washer provides a DIN 93 long-tab format in A2 Stainless Steel. The 17mm outside diameter and 6mm wide tab provide the physical locking geometry needed to restrain compatible fasteners after installation.
What Are DIN 93 Long Tab Washers?
A DIN 93 Long Tab Washer has a flat washer body with one extended locking tab. This tab can be formed against a suitable face, slot or retaining feature to create a positive anti-rotation restraint in bolted and screwed assemblies.
Common Applications
- Construction Assemblies: Provides a mechanical locking washer for compatible structural and fabricated metalwork connections.
- Manufacturing Equipment: Supports secure fastening on jigs, frames, guards and production machinery.
- Industrial Machinery: Helps lock nuts or bolts in position on equipment exposed to vibration and repeated mechanical movement.
- Mechanical Engineering: Supports locking of nuts, bolts and machine screws in fabricated components and general engineering assemblies.

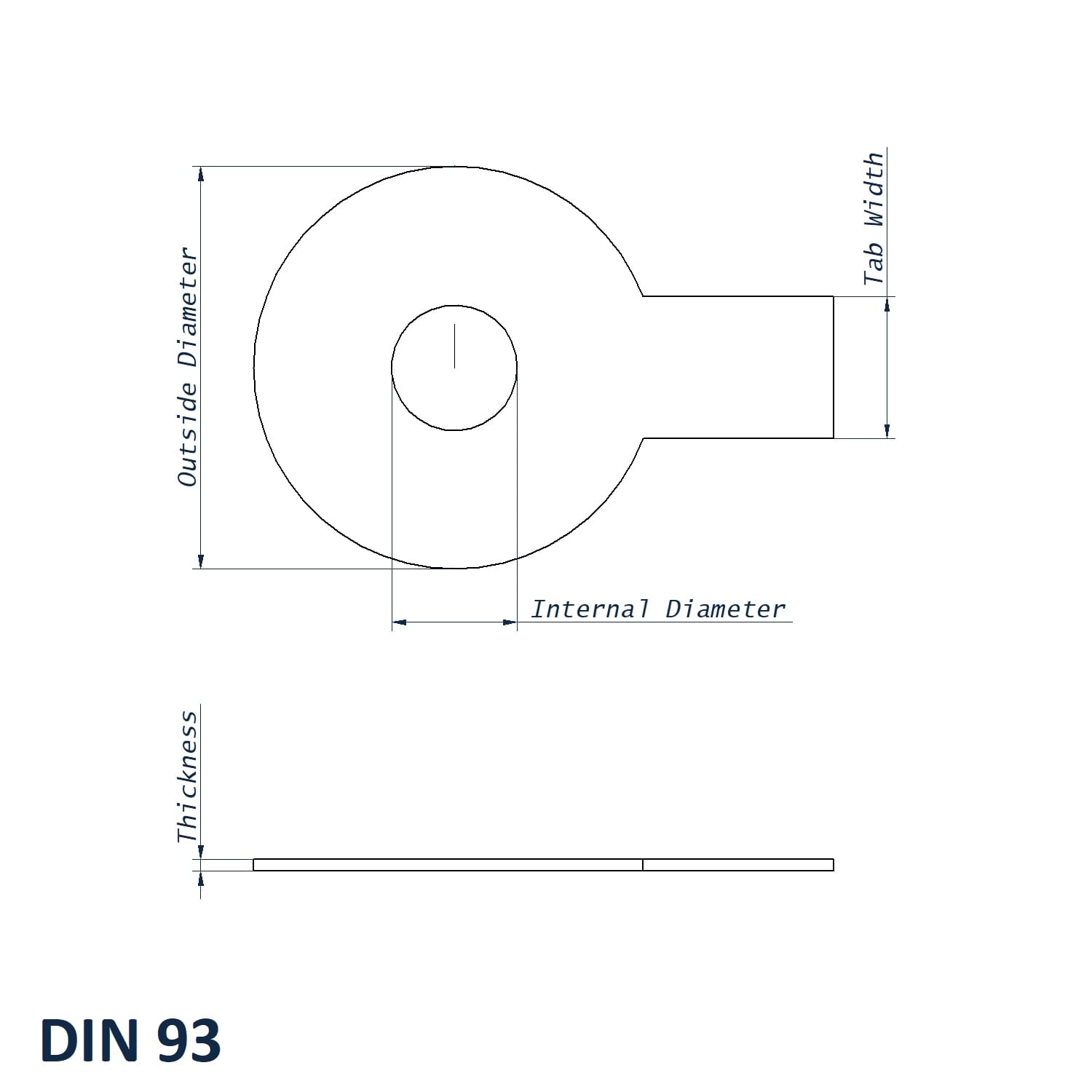

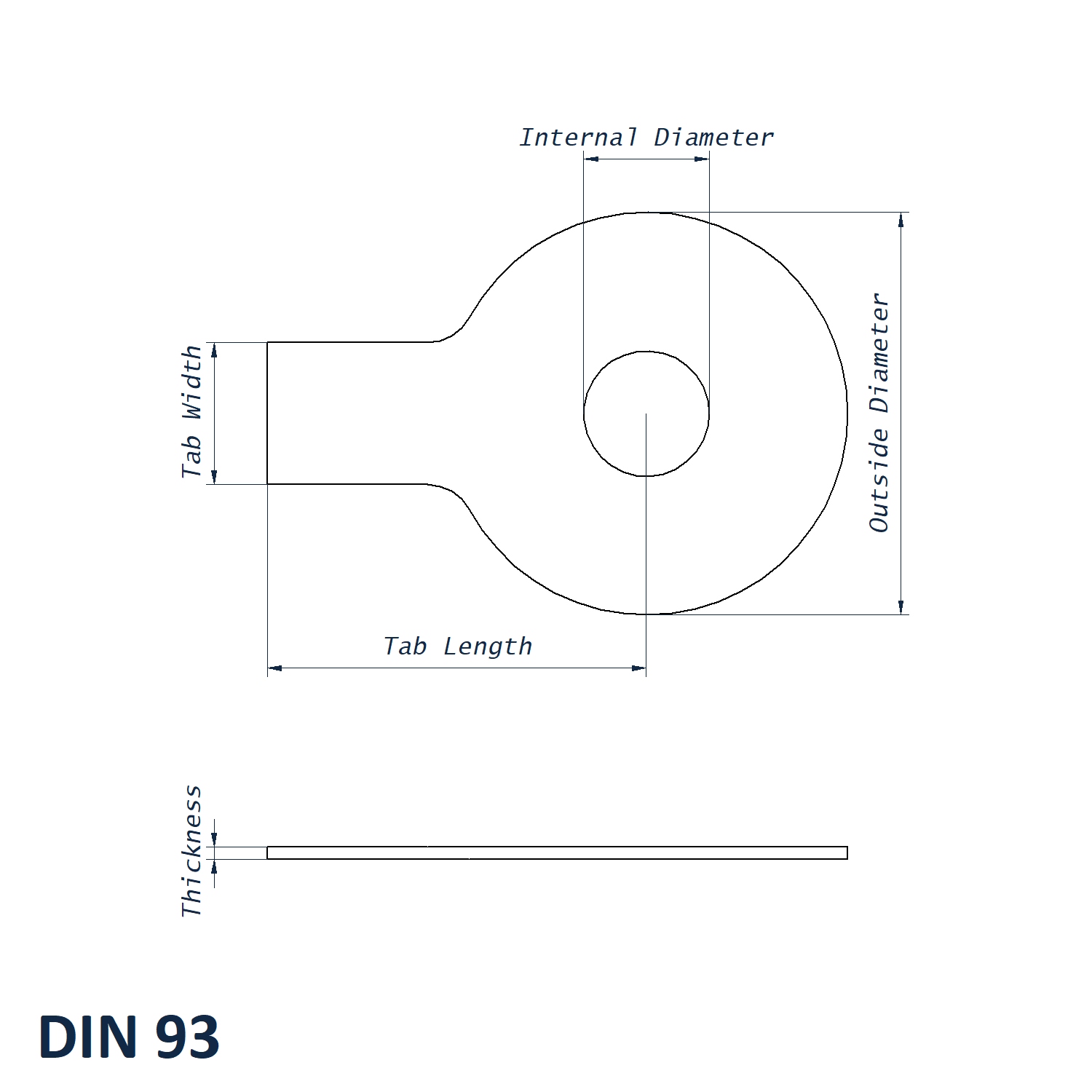

M5 DIN 93 Long Tab Washer Dimensions
- Size: M5
- Internal Diameter: 5.3mm
- Outside Diameter: 17mm
- Thickness: 0.50mm
- Tab Width: 6mm
- Tab Length: 16mm
- Material: A2 Stainless Steel
- Standard: DIN 93
Key Benefits
- Mechanical locking action does not depend solely on friction between the washer and fastener.
- 17mm outside diameter provides the main bearing footprint around the fastener.
- 6mm tab width and 16mm tab length provide the mechanical locking feature.
- Long tab can be bent or located against a suitable assembly feature to resist fastener rotation.
View the full DIN 93 Long Tab Washer range to compare sizes from M4 to M39 in A2 and A4 Stainless Steel. For help selecting the correct washer dimensions or material grade, contact the Vital Parts technical sales team on 01233 713581.
