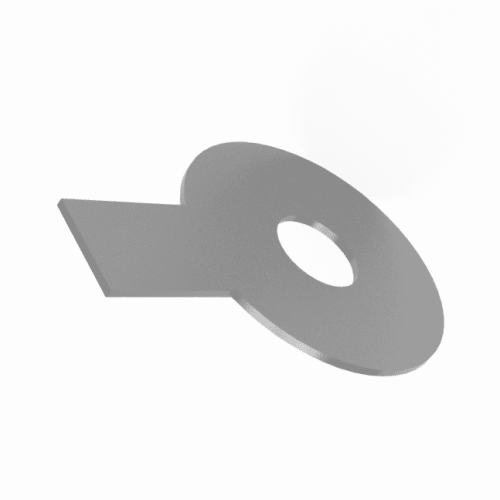

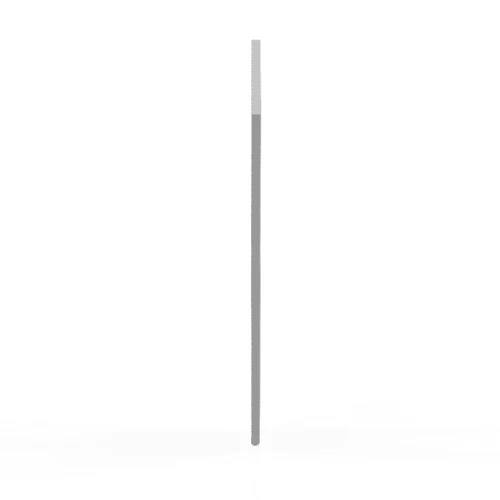

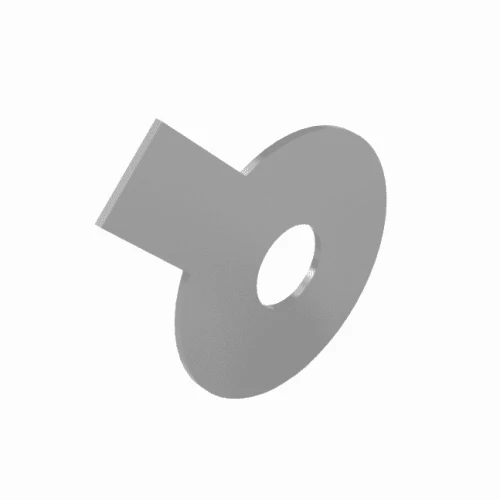

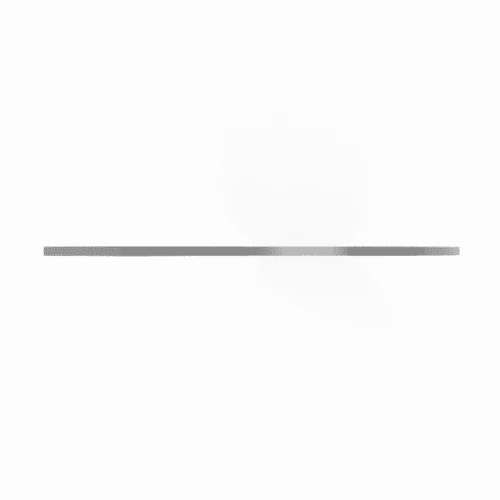

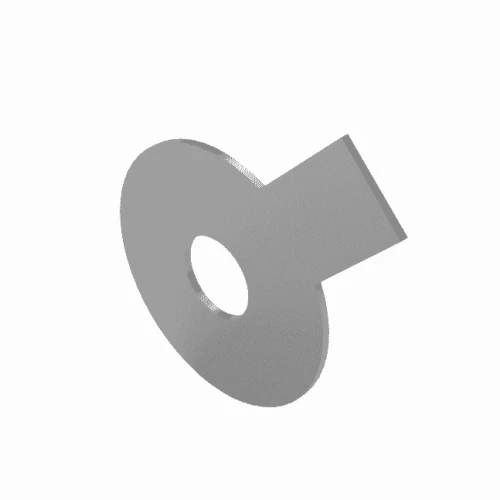

M18 x 19mm Locking Tab Washers (36mm Long Tab) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.18 | £0.22 |
| 100 - 999 | £0.16 | £0.19 |
| 1000 - 3999 | £0.14 | £0.17 |
| 4000 + | £0.11 | £0.13 |
£0.22 / each
.png)
Product Specification
| Size | M18 |
| Internal Diameter | 19.0mm |
| Outside Diameter | 40mm |
| Thickness | 1.00mm |
| Tab Width | 18mm |
| Tab Length | 36mm |
| Standard | DIN 93 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M18 x 19.0mm DIN 93 Long Tab Washer | A2 Stainless Steel
Designed for manufacturing equipment and fabricated frames, this M18 DIN 93 Long Tab Washer has a 19.0mm internal diameter, 40mm outside diameter and 36mm long tab. Manufactured from A2 Stainless Steel, it provides a mechanical anti-rotation feature for compatible threaded fasteners by allowing the tab to be bent or located against an assembly feature.
What Are DIN 93 Long Tab Washers?
DIN 93 Long Tab Washers are locking washers designed to prevent rotation of nuts, bolts or screws by using a protruding tab as a physical stop. After the washer is positioned, the long tab is bent or located against a suitable assembly feature so the fastener cannot rotate freely.
Common Applications
- Marine Equipment: Provides an anti-rotation washer for suitable marine and coastal assemblies when the appropriate stainless steel grade is selected.
- Industrial Machinery: Helps lock nuts or bolts in position on equipment exposed to vibration and repeated mechanical movement.
- Mechanical Engineering: Supports locking of nuts, bolts and machine screws in fabricated components and general engineering assemblies.
- Maintenance and Repair: Offers a straightforward replacement locking method for machinery and equipment using DIN 93 washer geometry.

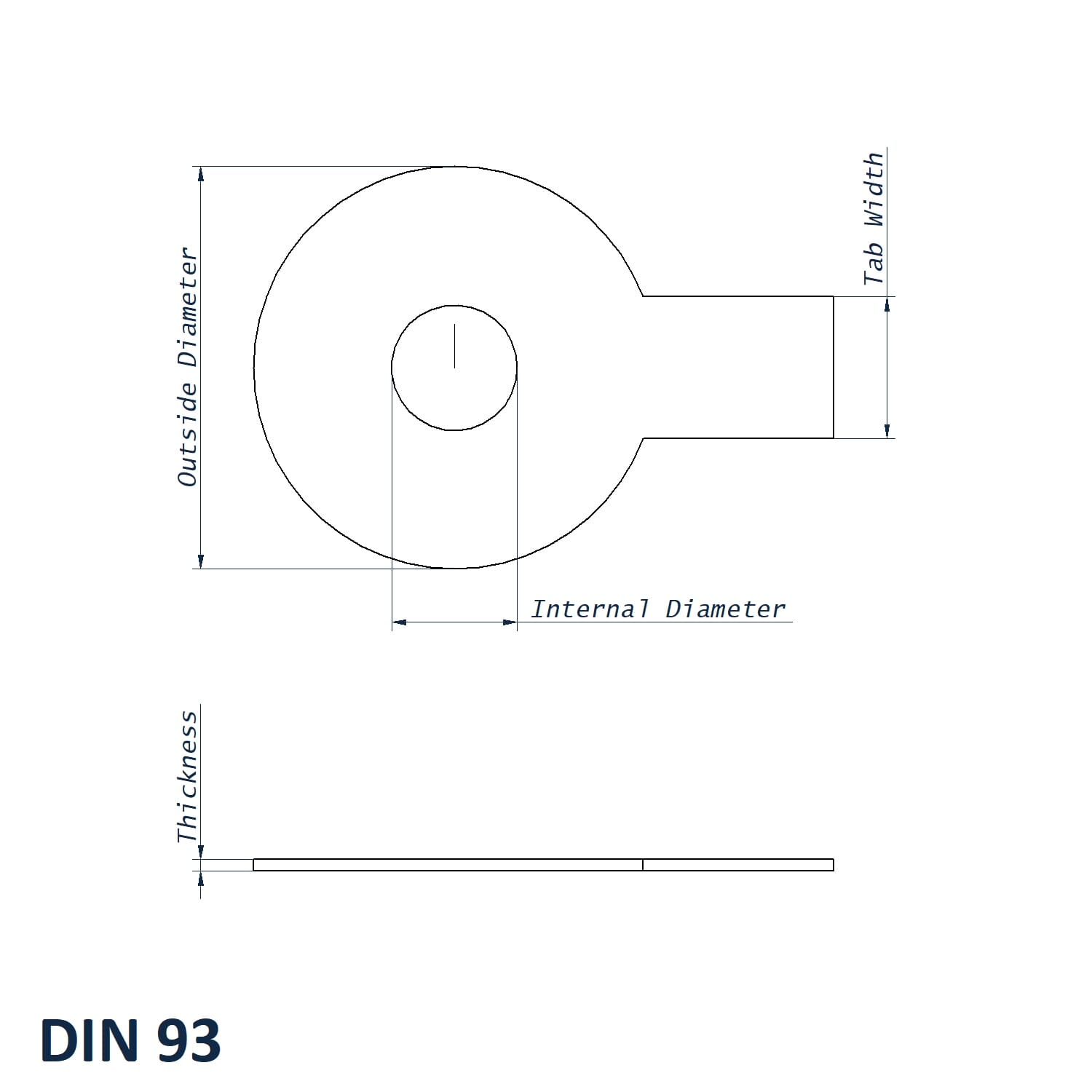

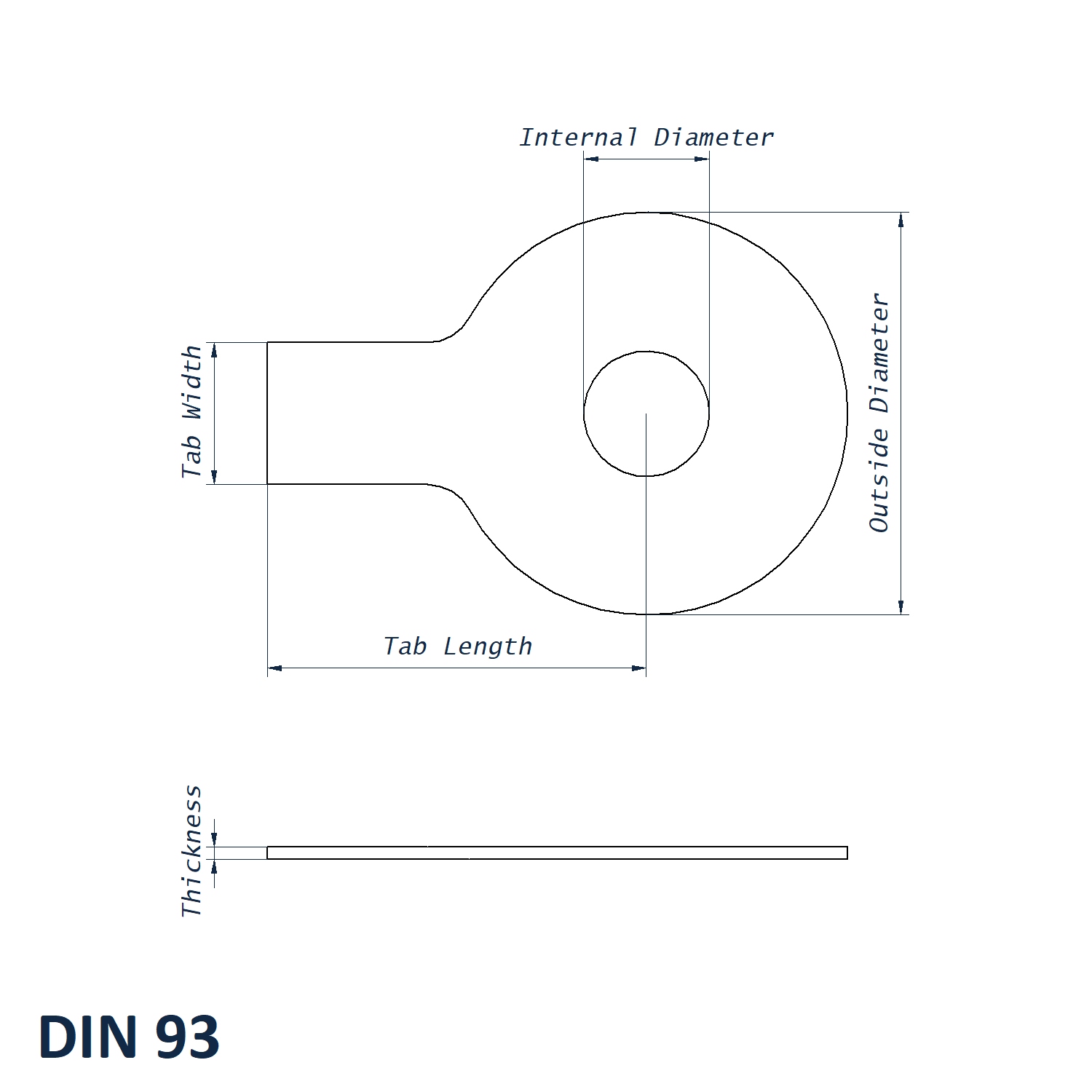

M18 DIN 93 Long Tab Washer Dimensions
- Size: M18
- Internal Diameter: 19.0mm
- Outside Diameter: 40mm
- Thickness: 1.00mm
- Tab Width: 18mm
- Tab Length: 36mm
- Material: A2 Stainless Steel
- Standard: DIN 93
Key Benefits
- Mechanical locking action does not depend solely on friction between the washer and fastener.
- 40mm outside diameter provides the main bearing footprint around the fastener.
- 18mm tab width and 36mm tab length provide the mechanical locking feature.
- Long tab can be bent or located against a suitable assembly feature to resist fastener rotation.
View the full DIN 93 Long Tab Washer range to compare sizes from M4 to M39 in A2 and A4 Stainless Steel. For help selecting the correct washer dimensions or material grade, contact the Vital Parts technical sales team on 01233 713581.
