T Bolt Hose Clamp 17-19mm, 18mm Width, W2
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.46 | £1.75 |
| 10 - 24 | £1.42 | £1.70 |
| 25 - 49 | £1.38 | £1.65 |
| 50 - 99 | £1.33 | £1.60 |
| 100 + | £1.29 | £1.55 |
£1.75 / each
.png)
Product Specification
| Clamping Diameter | 17-19mm |
| Band Width | 18mm |
| Bridge Width | 19.8mm |
| Tightening Torque | 10Nm |
| Bolt Size | M6 |
| Material | W2 |
Frequently Bought Together
Total Price: £0.00

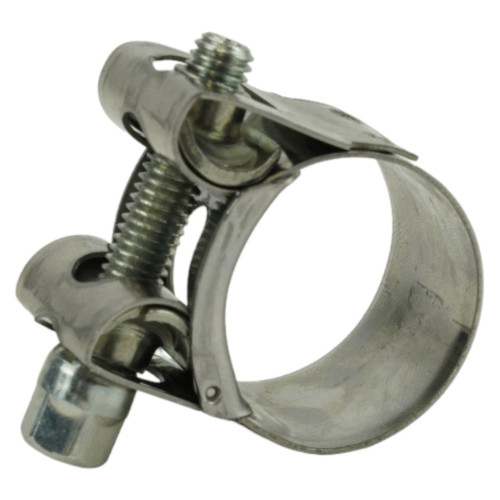

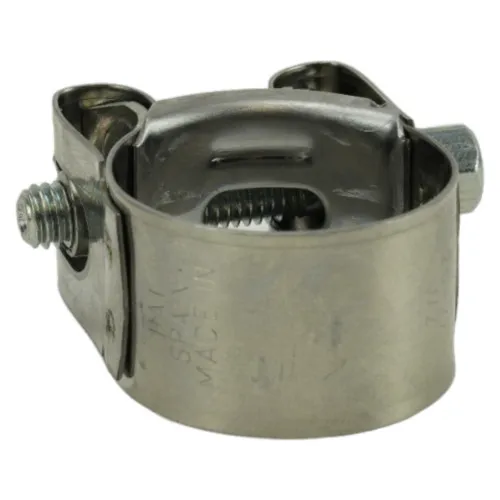

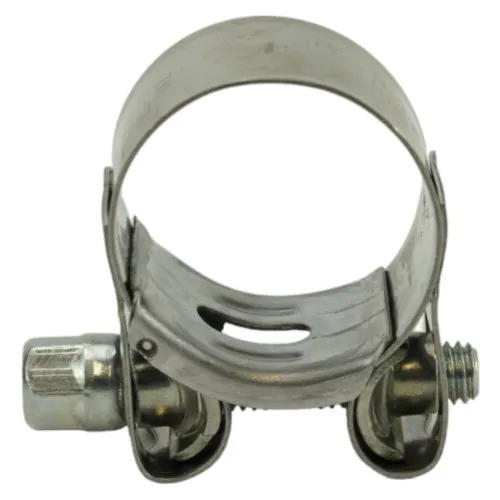

17-19mm T-Bolt Hose Clamp | 18mm Band | M6 | W2 Stainless Band / Zinc-Plated Steel
This 17-19mm automotive hose clamp is suited to construction equipment, air lines and heavy-duty hose assemblies where a secure seal is needed around compatible hoses or tubing. The T-bolt layout provides strong mechanical tightening while the wide band helps distribute clamping force around the circumference. W2 construction combines a 430 stainless steel band with zinc-plated mild-steel housing and screw components, providing improved corrosion resistance over an all-mild-steel clamp while keeping the fastening hardware robust.
What Are T-Bolt Clamps?
T-Bolt Hose Clamps provide a robust alternative to lighter worm-drive clips where greater clamping force is required. A T-shaped bolt draws the band together around the hose or tube while the wide band helps distribute pressure and support a consistent seal.
Common Applications
- Commercial Vehicles: Secures compatible coolant, air and charge-air hose connections on lorries, buses and heavy transport equipment.
- Hose Pipe Connections: Provides strong circumferential pressure around suitable hose-to-pipe and hose-to-tube joints.
- Manufacturing Equipment: Supports hydraulic and cooling hose connections around pumps, cylinders and production machinery.
- Workshop Maintenance: Allows hose clamps to be loosened and reused during servicing, repairs and line replacement.

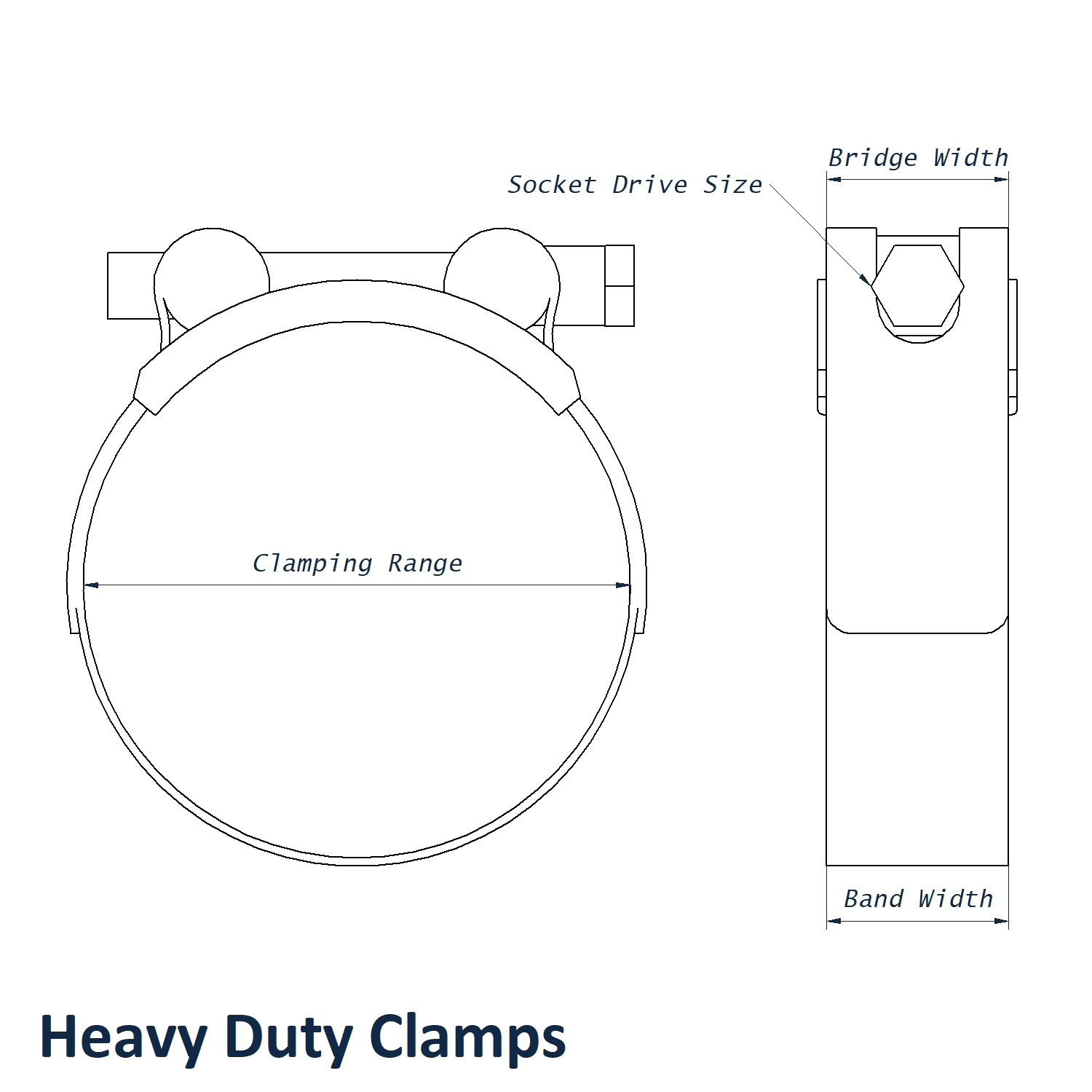

17-19mm T-Bolt Hose Clamp Dimensions
- Clamping Diameter: 17-19mm
- Band Width: 18mm
- Bolt Size: M6
- Bridge Width: 19.8mm
- Tightening Torque: 10Nm
- Material: W2
Key Benefits
- 17-19mm clamping diameter provides the stated working size range.
- M6 bolt size provides the specified T-bolt fastening arrangement.
- W2 material grade identifies the construction and corrosion-resistance level.
- Reusable T-bolt design allows adjustment during servicing or hose replacement.
See our wider T-Bolt Clamps range for other hose and tube diameters. For sizing or material-selection support, speak with our team on 01233 713581.
