T Bolt Hose Clamp 31-34mm, 20mm Width, W2
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.74 | £2.09 |
| 10 - 24 | £1.69 | £2.03 |
| 25 - 49 | £1.64 | £1.97 |
| 50 - 99 | £1.59 | £1.91 |
| 100 + | £1.54 | £1.85 |
£2.09 / each
.png)
Product Specification
| Clamping Diameter | 31-34mm |
| Band Width | 20mm |
| Bridge Width | 22.0mm |
| Tightening Torque | 13Nm |
| Bolt Size | M7 |
| Material | W2 |
Frequently Bought Together
Total Price: £0.00

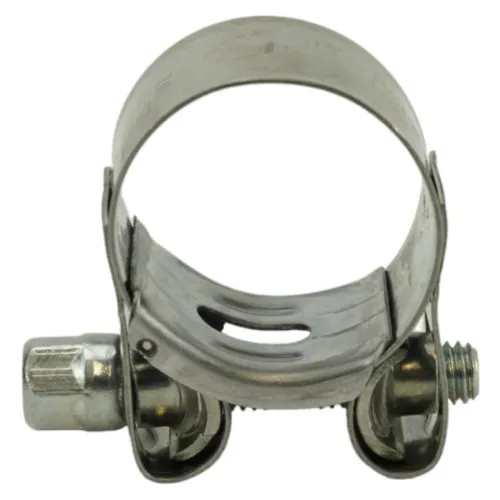

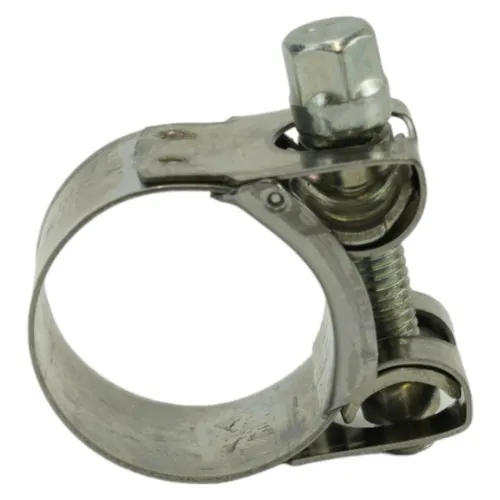

31-34mm T-Bolt Hose Clamp | 20mm Band | M7 | W2 Stainless Band / Zinc-Plated Steel
This 31-34mm heavy duty hose clamp is designed for securing hoses and tubes where high clamping force and even pressure are important. The 20mm band, M7 T-bolt and 13Nm tightening torque make it well suited to demanding automotive, hydraulic and industrial connections. W2 construction combines a 430 stainless steel band with zinc-plated mild-steel housing and screw components, providing improved corrosion resistance over an all-mild-steel clamp while keeping the fastening hardware robust.
What Are T-Bolt Clamps?
Bolt Hose Clamps are designed for hose and tube joints where secure retention is important. The wide band surrounds the connection and the T-bolt provides controlled tightening which is useful on coolant lines, turbo hoses, hydraulic systems and industrial pipework.
Common Applications
- Turbo and Intake Systems: Provides a strong clamp around compatible turbo hoses and charge-air connections where pressure can fluctuate.
- Coolant Lines: Secures suitable engine and machinery coolant hoses with a wide band that helps spread clamping pressure.
- Tube Connections: Works as a clamp for tube and hose joints where a robust adjustable connection is required.
- General Industrial Equipment: Provides a robust clamp for compatible machinery hoses and tube connections in suitable environments.

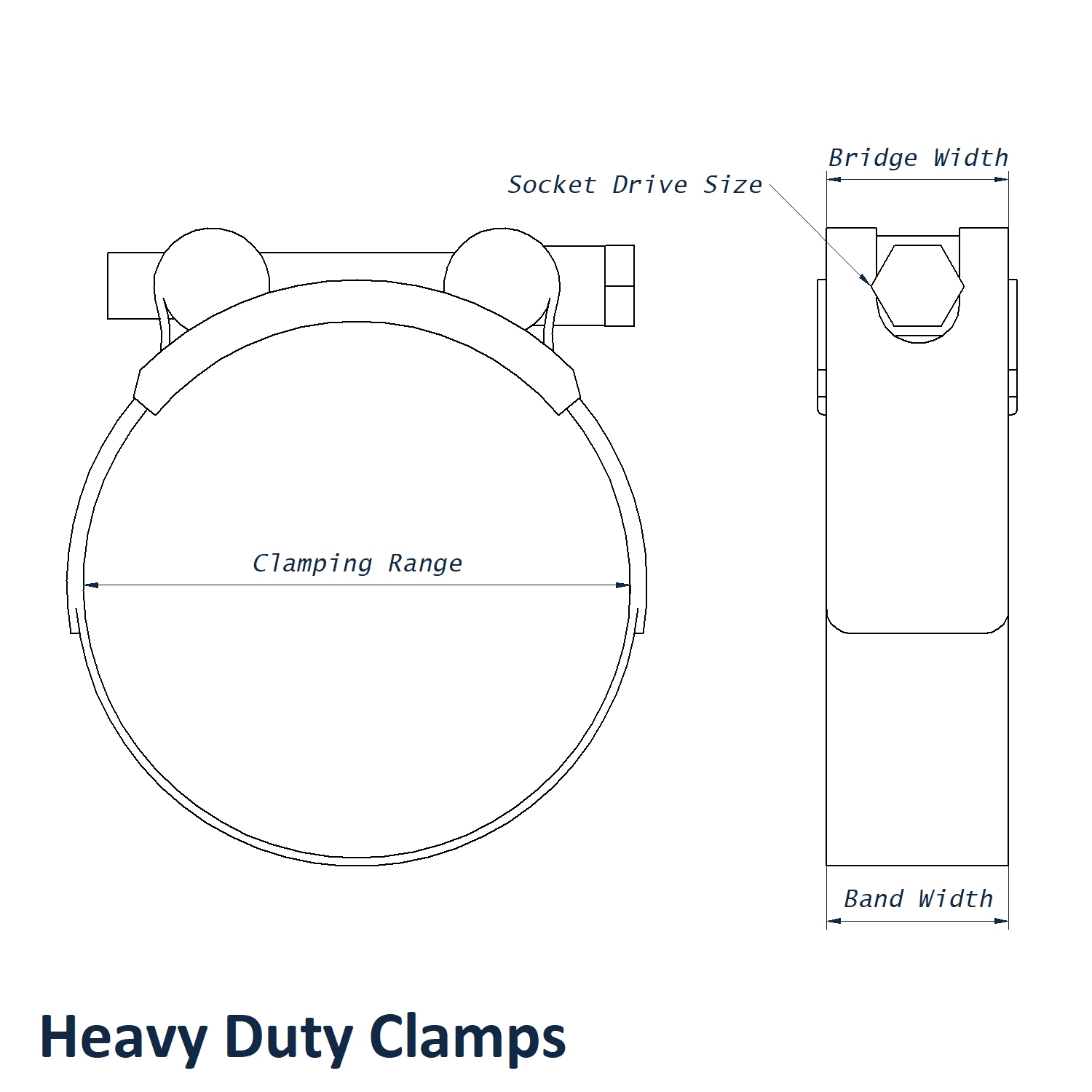

31-34mm T-Bolt Hose Clamp Dimensions
- Clamping Diameter: 31-34mm
- Band Width: 20mm
- Bolt Size: M7
- Bridge Width: 22.0mm
- Tightening Torque: 13Nm
- Material: W2
Key Benefits
- Wide band helps distribute pressure evenly around compatible hose and tube connections.
- Heavy-duty construction suits demanding automotive, hydraulic and industrial applications.
- 20mm band width spreads the clamping load around the hose or tube.
- 22.0mm bridge width supports the band across the tightening section.
Compare more sizes in our Heavy Duty T-Bolt Clamps range. If you are unsure which diameter or material grade suits your application, contact our team on 01233 713581.
