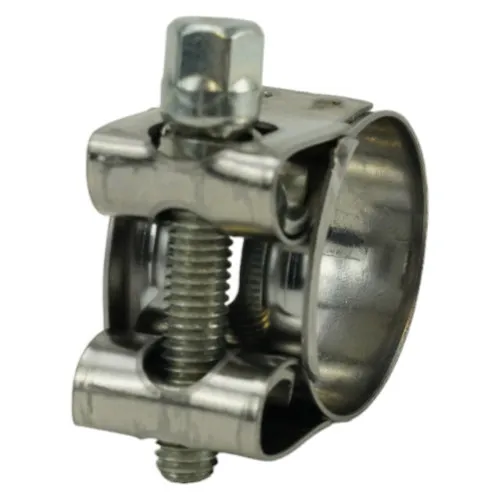

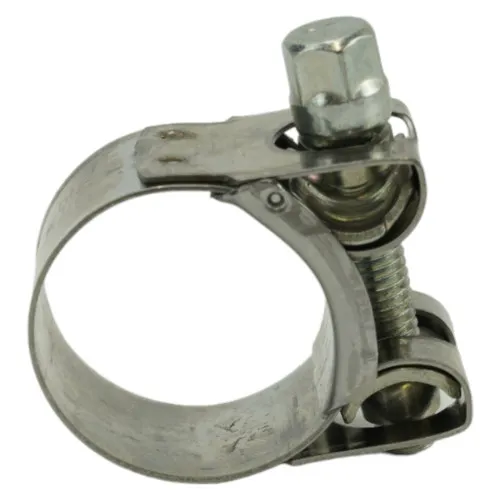

T Bolt Hose Clamp 25-27mm, 18mm Width, W2
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.52 | £1.83 |
| 10 - 24 | £1.48 | £1.78 |
| 25 - 49 | £1.44 | £1.73 |
| 50 - 99 | £1.40 | £1.68 |
| 100 + | £1.36 | £1.63 |
£1.83 / each
.png)
Product Specification
| Clamping Diameter | 25-27mm |
| Band Width | 18mm |
| Bridge Width | 19.8mm |
| Tightening Torque | 10Nm |
| Bolt Size | M6 |
| Material | W2 |
Frequently Bought Together
Total Price: £0.00
25-27mm T-Bolt Hose Clamp | 18mm Band | M6 | W2 Stainless Band / Zinc-Plated Steel
Designed for workshop fabrication, plant maintenance and general hose installations, this 25-27mm automotive hose clamp uses a wide band and T-shaped bolt arrangement to apply firm, even clamping pressure around the hose or tube. The 19.8mm bridge width supports the band around the joint while the M6 fixing allows controlled tightening. W2 construction combines a 430 stainless steel band with zinc-plated mild-steel housing and screw components, providing improved corrosion resistance over an all-mild-steel clamp while keeping the fastening hardware robust.
What Are T-Bolt Clamps?
Heavy Duty Hose Clamps with a T-bolt fastening system are commonly used on automotive, hydraulic and industrial hose connections. Their reusable construction allows the clamp to be loosened, repositioned and retightened during maintenance while maintaining strong mechanical grip.
Common Applications
- Automotive Hose Clamping: Secures coolant hoses, turbo connections and charge-air tubing where vibration and pressure can be significant.
- Hydraulic Systems: Provides firm clamping around compatible hydraulic hoses and tube connections on pumps, presses and machinery.
- Construction Machinery: Supports hose and air-line connections on heavy equipment exposed to movement and vibration.
- Industrial Equipment: Provides a reusable heavy-duty clamp for process hoses, cooling lines and general plant maintenance.

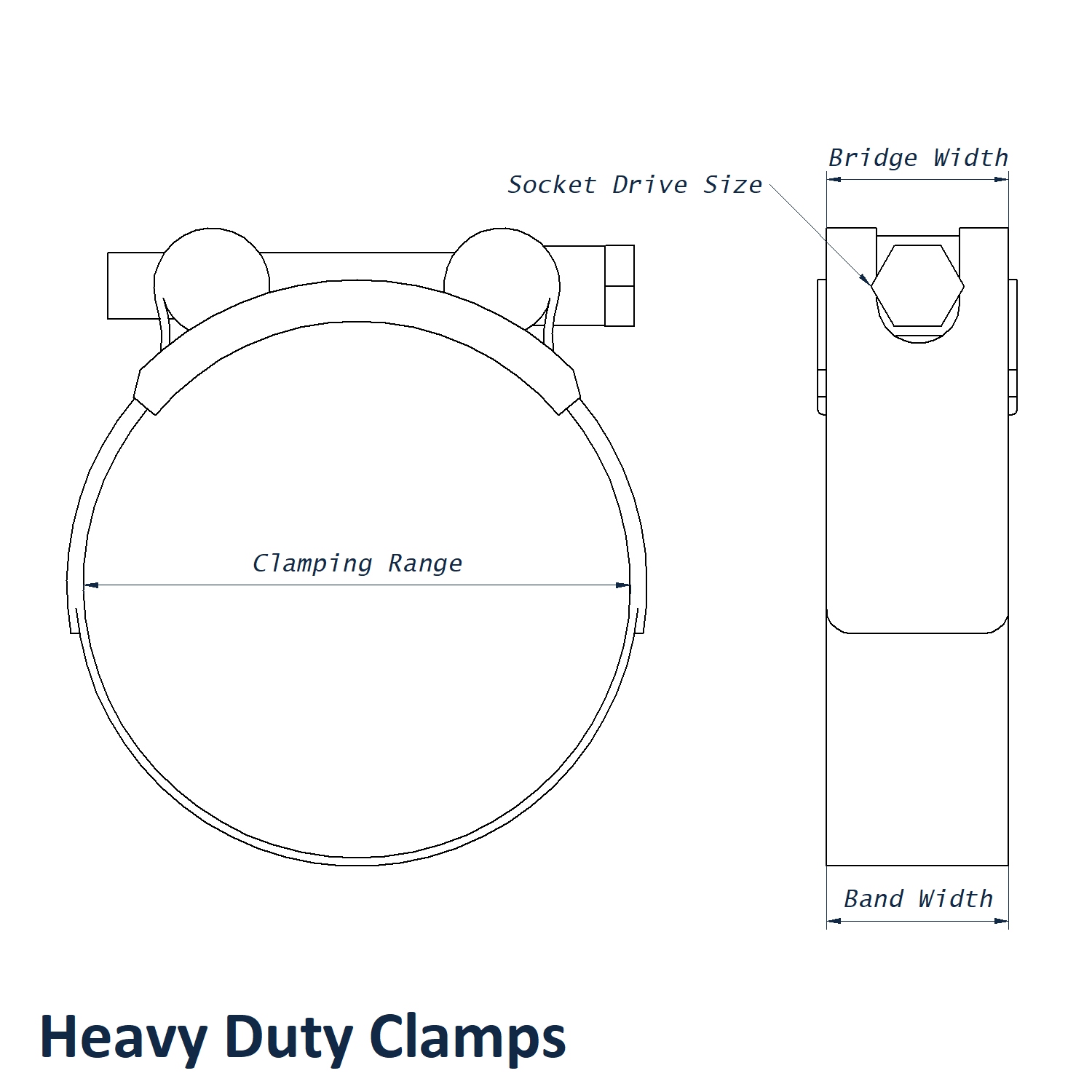

25-27mm T-Bolt Hose Clamp Dimensions
- Clamping Diameter: 25-27mm
- Band Width: 18mm
- Bolt Size: M6
- Bridge Width: 19.8mm
- Tightening Torque: 10Nm
- Material: W2
Key Benefits
- 25-27mm clamping diameter provides the stated working size range.
- M6 bolt size provides the specified T-bolt fastening arrangement.
- W2 material grade identifies the construction and corrosion-resistance level.
- Reusable T-bolt design allows adjustment during servicing or hose replacement.
Browse the complete T-Bolt Hose Clamps collection for alternative size ranges and material options. We can help you select the correct clamp on 01233 713581.
