T Bolt Hose Clamp 29-31mm, 20mm Width, W2
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.68 | £2.02 |
| 10 - 24 | £1.63 | £1.96 |
| 25 - 49 | £1.58 | £1.90 |
| 50 - 99 | £1.53 | £1.84 |
| 100 + | £1.48 | £1.78 |
£2.02 / each
.png)
Product Specification
| Clamping Diameter | 29-31mm |
| Band Width | 20mm |
| Bridge Width | 22.0mm |
| Tightening Torque | 13Nm |
| Bolt Size | M7 |
| Material | W2 |
Frequently Bought Together
Total Price: £0.00

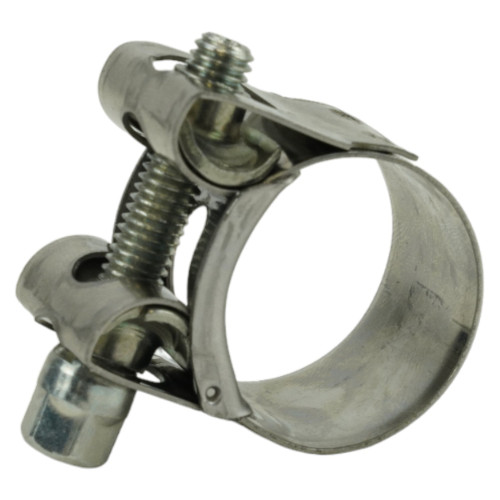

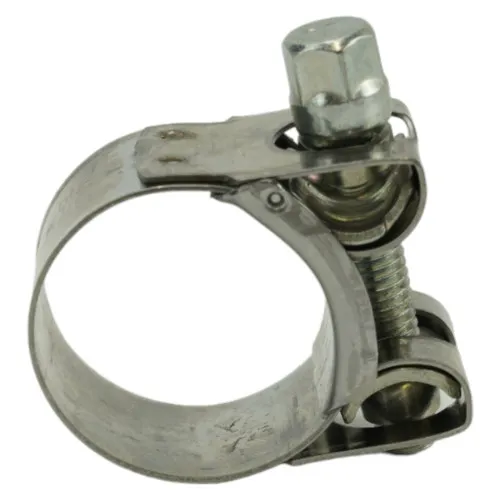

29-31mm T-Bolt Hose Clamp | 20mm Band | M7 | W2 Stainless Band / Zinc-Plated Steel
Made for demanding hose and tube connections, this 29-31mm industrial hose clamp combines a robust band with a M7 T-bolt and 13Nm tightening torque. The design is suited to applications exposed to vibration, pressure changes and repeated maintenance. W2 construction combines a 430 stainless steel band with zinc-plated mild-steel housing and screw components, providing improved corrosion resistance over an all-mild-steel clamp while keeping the fastening hardware robust.
What Are T-Bolt Clamps?
T-Bolt Clamps are heavy duty hose clamps that use a wide band and transverse T-shaped bolt to tighten around a hose or tube. The design applies strong, even pressure around the connection which makes these clamps suitable for demanding applications involving vibration, pressure changes and repeated servicing.
Common Applications
- Turbo and Intake Systems: Provides a strong clamp around compatible turbo hoses and charge-air connections where pressure can fluctuate.
- Coolant Lines: Secures suitable engine and machinery coolant hoses with a wide band that helps spread clamping pressure.
- Tube Connections: Works as a clamp for tube and hose joints where a robust adjustable connection is required.
- General Industrial Equipment: Provides a robust clamp for compatible machinery hoses and tube connections in suitable environments.

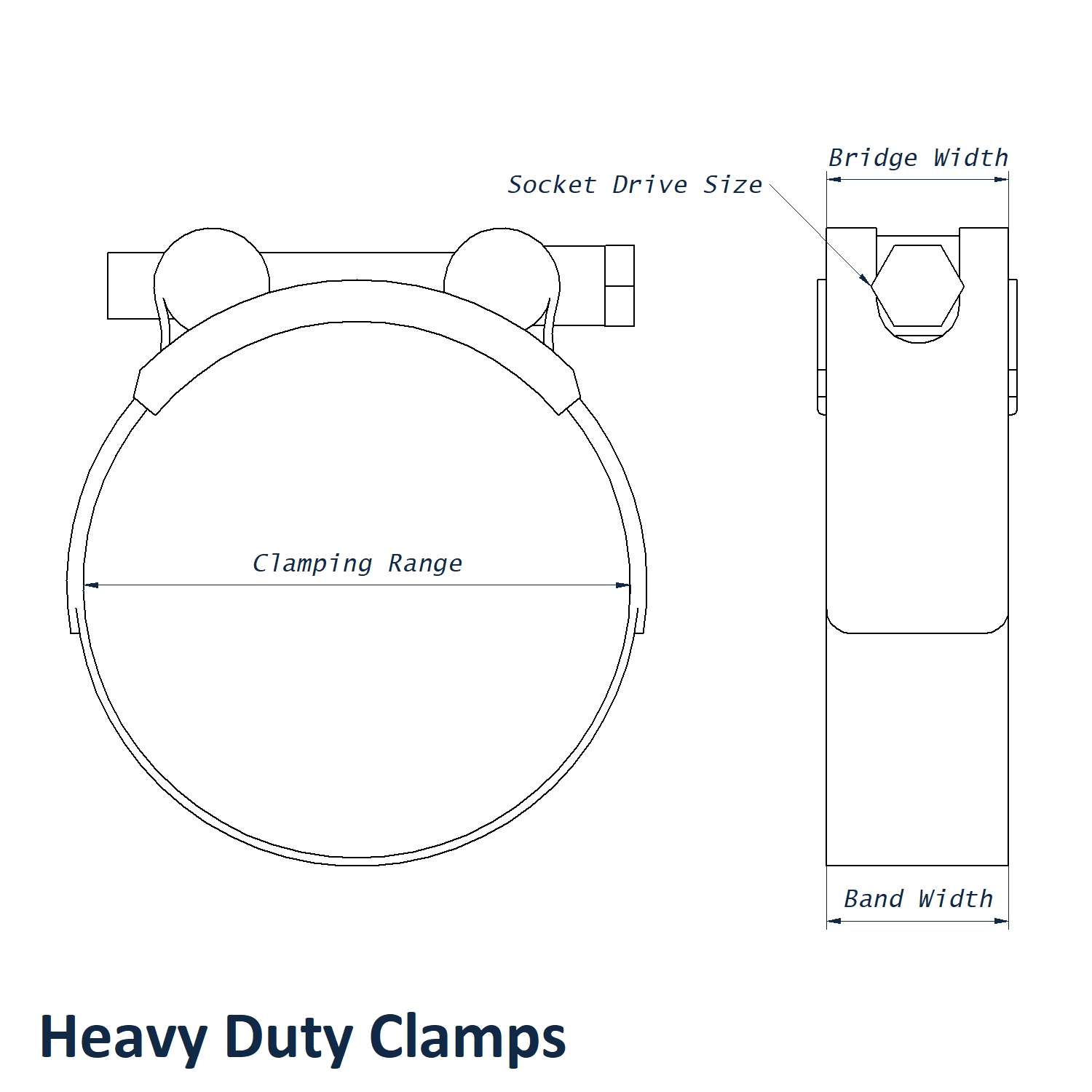

29-31mm T-Bolt Hose Clamp Dimensions
- Clamping Diameter: 29-31mm
- Band Width: 20mm
- Bolt Size: M7
- Bridge Width: 22.0mm
- Tightening Torque: 13Nm
- Material: W2
Key Benefits
- 13Nm tightening torque provides the stated installation reference.
- Wide band helps distribute pressure evenly around compatible hose and tube connections.
- Strong mechanical fastening helps resist movement in applications exposed to vibration and pressure changes.
- 20mm band width spreads the clamping load around the hose or tube.
View the full T-Bolt Clamps range to compare clamping diameters, band widths and W2 or W4 material grades. If you need help choosing the right clamp for your hose or tube, call us on 01233 713581.
