T Bolt Hose Clamp 34-37mm, 20mm Width, W2
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.82 | £2.18 |
| 10 - 24 | £1.76 | £2.11 |
| 25 - 49 | £1.71 | £2.05 |
| 50 - 99 | £1.66 | £1.99 |
| 100 + | £1.61 | £1.93 |
£2.18 / each
.png)
Product Specification
| Clamping Diameter | 34-37mm |
| Band Width | 20mm |
| Bridge Width | 22.0mm |
| Tightening Torque | 13Nm |
| Bolt Size | M7 |
| Material | W2 |
Frequently Bought Together
Total Price: £0.00

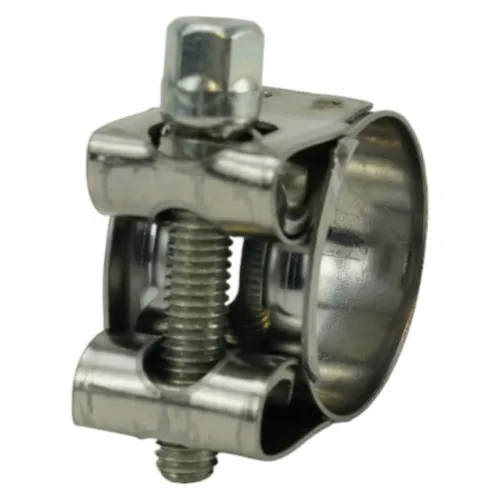

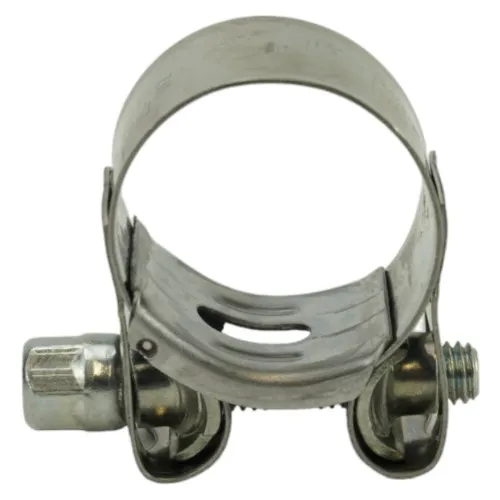

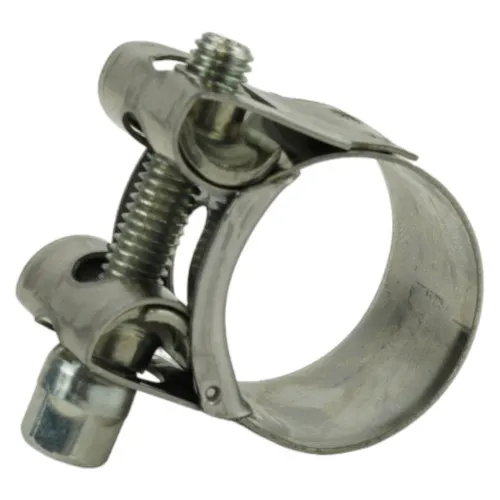

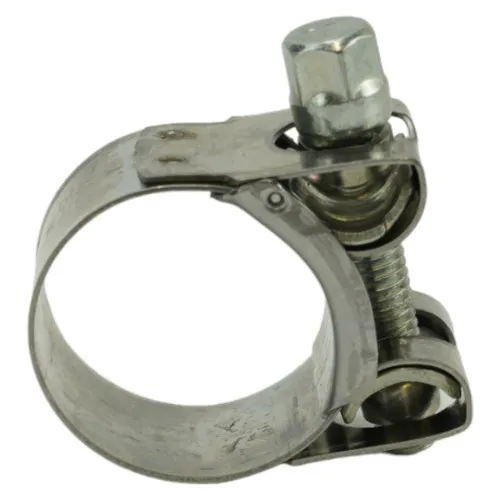

34-37mm T-Bolt Hose Clamp | 20mm Band | M7 | W2 Stainless Band / Zinc-Plated Steel
This 34-37mm automotive hose clamp is designed for securing hoses and tubes where high clamping force and even pressure are important. The 20mm band, M7 T-bolt and 13Nm tightening torque make it well suited to demanding automotive, hydraulic and industrial connections. W2 construction combines a 430 stainless steel band with zinc-plated mild-steel housing and screw components, providing improved corrosion resistance over an all-mild-steel clamp while keeping the fastening hardware robust.
What Are T-Bolt Clamps?
T-Bolt Hose Clamps provide a robust alternative to lighter worm-drive clips where greater clamping force is required. A T-shaped bolt draws the band together around the hose or tube while the wide band helps distribute pressure and support a consistent seal.
Common Applications
- Automotive Hose Clamping: Secures coolant hoses, turbo connections and charge-air tubing where vibration and pressure can be significant.
- Hydraulic Systems: Provides firm clamping around compatible hydraulic hoses and tube connections on pumps, presses and machinery.
- Construction Machinery: Supports hose and air-line connections on heavy equipment exposed to movement and vibration.
- Industrial Equipment: Provides a reusable heavy-duty clamp for process hoses, cooling lines and general plant maintenance.

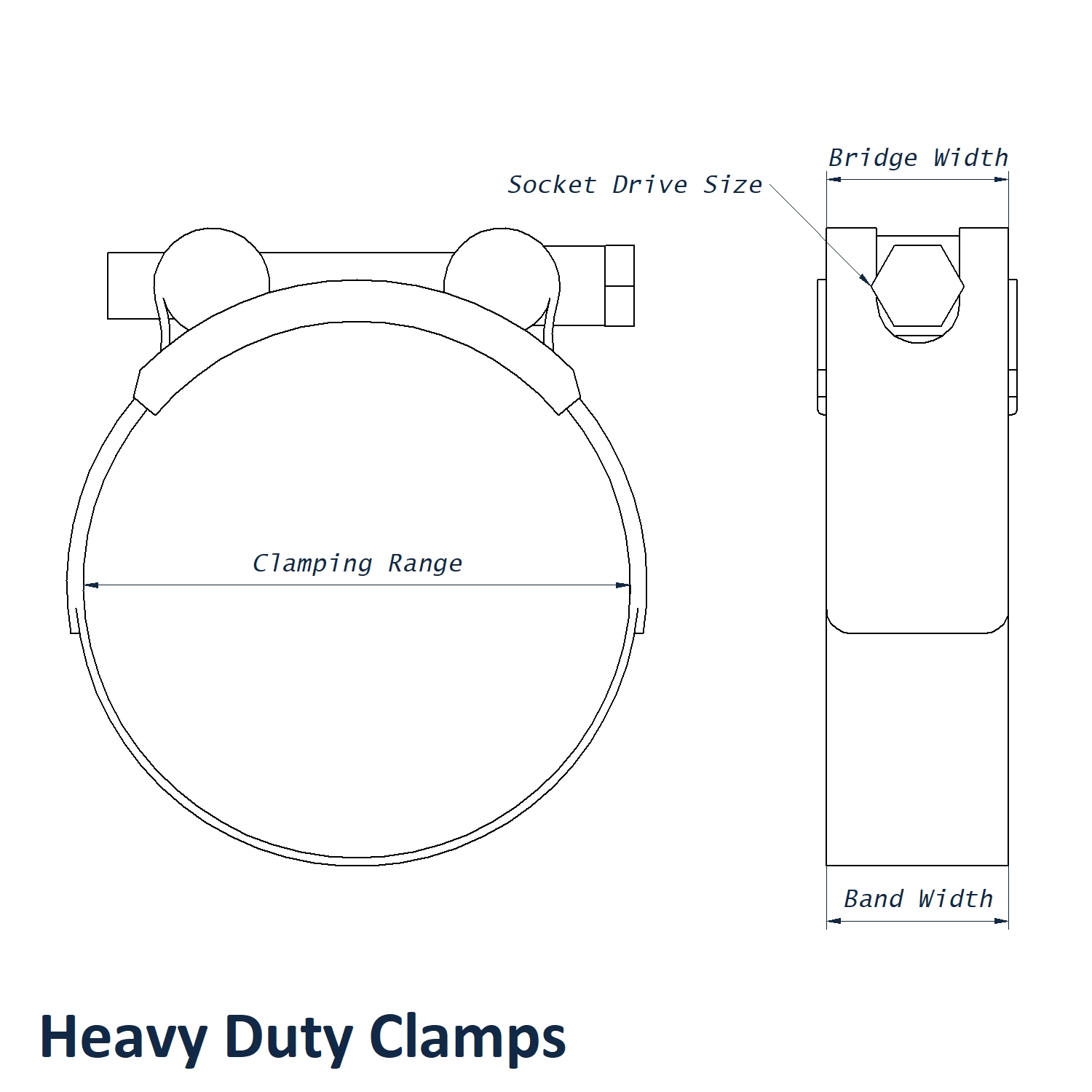

34-37mm T-Bolt Hose Clamp Dimensions
- Clamping Diameter: 34-37mm
- Band Width: 20mm
- Bolt Size: M7
- Bridge Width: 22.0mm
- Tightening Torque: 13Nm
- Material: W2
Key Benefits
- W2 material grade identifies the construction and corrosion-resistance level.
- Reusable T-bolt design allows adjustment during servicing or hose replacement.
- 34-37mm clamping diameter provides the stated working size range.
- M7 bolt size provides the specified T-bolt fastening arrangement.
See our wider T-Bolt Clamps range for other hose and tube diameters. For sizing or material-selection support, speak with our team on 01233 713581.
