M5 Hex Nut (DIN 934) | Brass

Product code: HN934-M5-BRA
View All Specifications

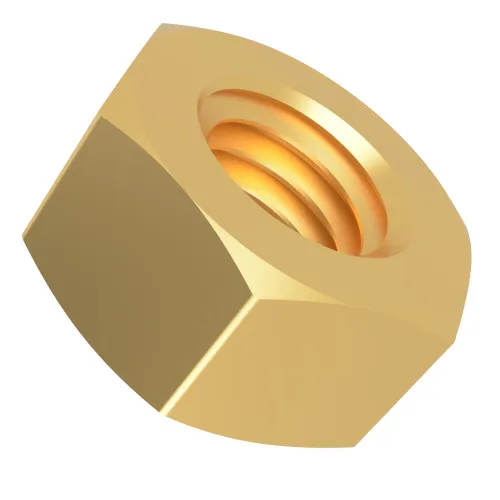

M5 Hex Nut (DIN 934) | Brass

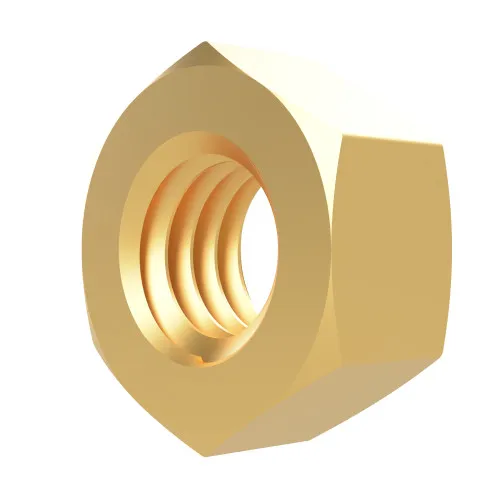

M5 Hex Nut (DIN 934) | Brass

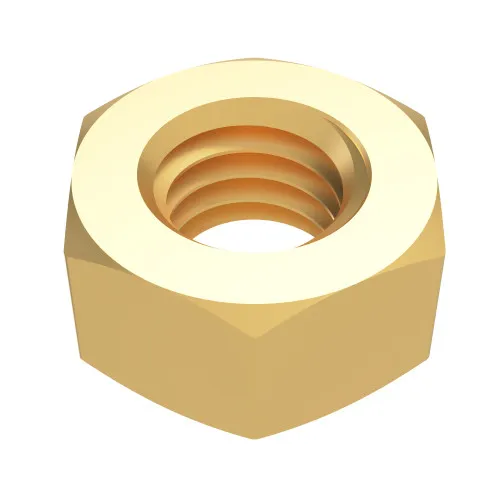

M5 Hex Nut (DIN 934) | Brass

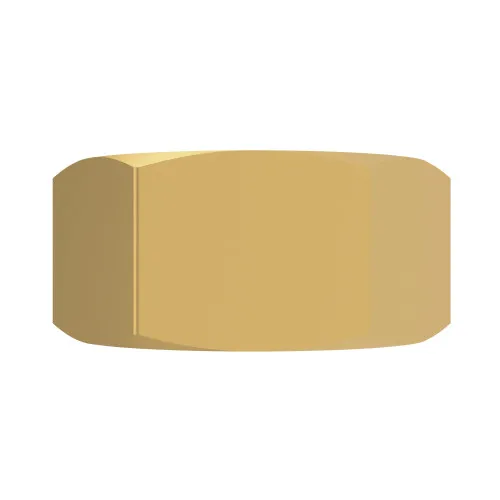

M5 Hex Nut (DIN 934) | Brass

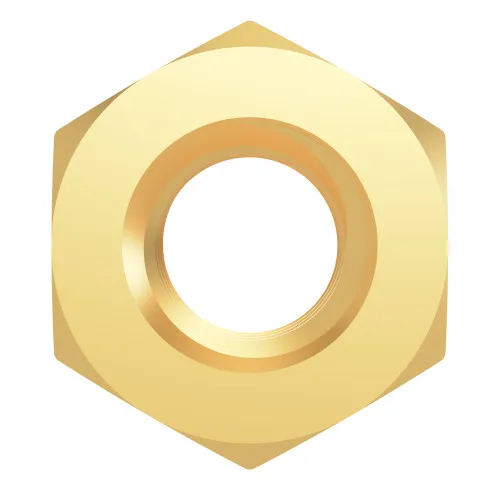

M5 Hex Nut (DIN 934) | Brass
M5 Hex Nut (DIN 934) | Brass
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.64 £0.77
10 - 49 £0.43 £0.52
50 - 99 £0.33 £0.39
100 - 999 £0.22 £0.26
1000 + £0.11 £0.13

£0.77 / each


Up to 898 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
898 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M5
Thread Pitch 0.80mm
Material Brass
Across Flats 8.0mm
Height 4.00mm
Standard DIN 934

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M5 Full Hex Nut (DIN 934) | Brass

Built for joining components with M5 fasteners, this DIN 934 full hex nut offers a conventional six-flat shape and a brass body. The 4mm nut height can be checked against the available thread engagement and assembly clearance.

What Are Full Hex Nuts?

The full-height hexagonal profile is a conventional option for threaded fastening. Mating threads need to match and the suitability of the material should be considered for the installation. Different types of standard hex nuts can be selected according to thread size, material and available installation space. For a complete threaded joint, select a matching fastener from our bolts and screws alongside appropriately sized steel washers where required. Choose this M5 hexagon nut where the specified material and full-height form are appropriate.

Common Applications

  • Machinery Assembly: Fastening compatible M5 bolts through equipment frames where the specified Brass is suitable.
  • Instrument Fittings: Securing compatible brass or other appropriately selected threaded parts in fittings and assembly work.
  • Equipment Maintenance: Replacing an existing M5 nut on a compatible threaded rod or screw while checking 8mm spanner clearance.
  • General Engineering: Providing a removable threaded connection for mechanical subassemblies with a nut of the specified grade.

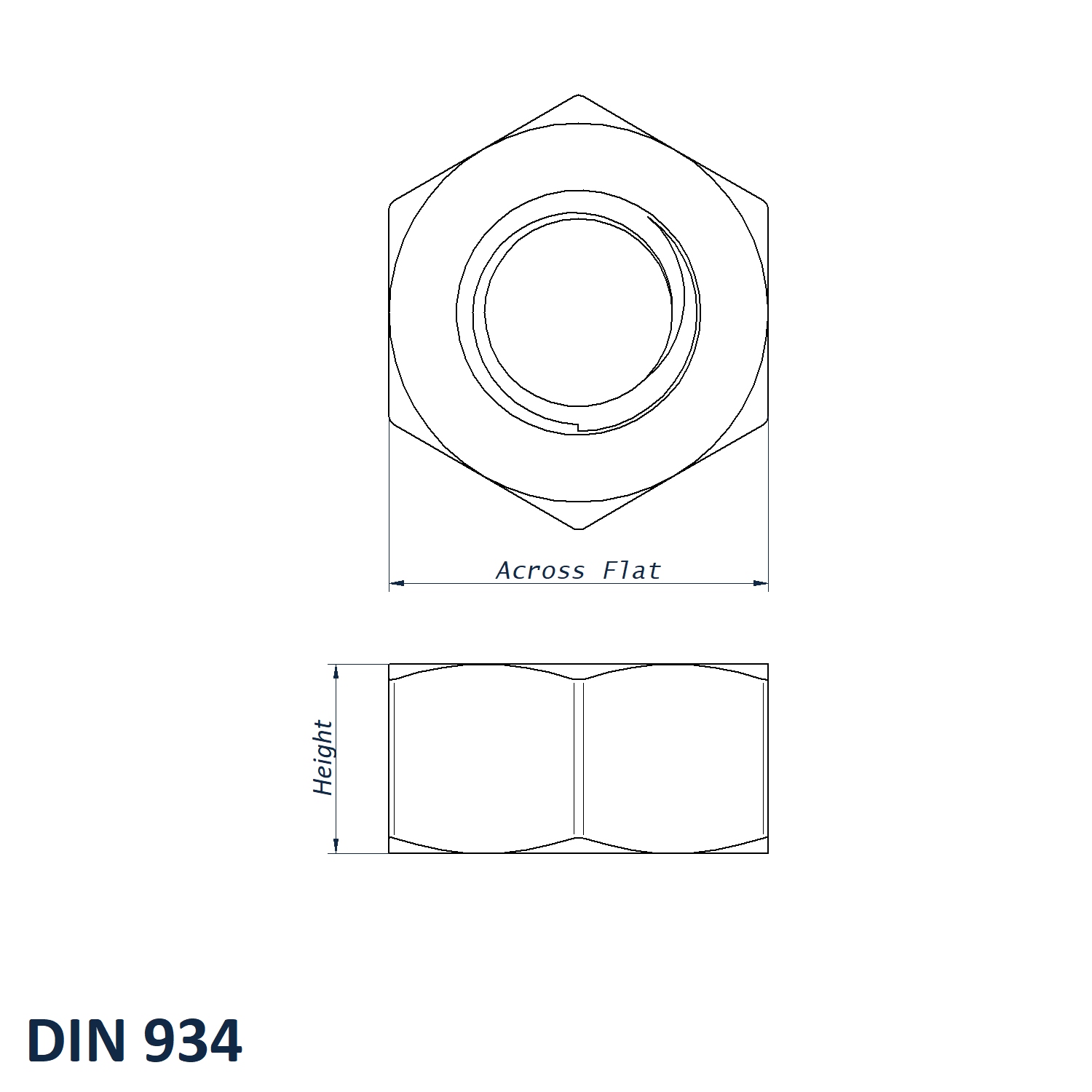

M5 Full Hex Nut Dimensions

  • Thread Size: M5
  • Thread Pitch: 0.80mm
  • Material: Brass
  • Across Flats: 8.0mm
  • Height: 4.00mm
  • Standard: DIN 934

Key Benefits

  • The M5 metric thread offers a defined fit for matching external threads.
  • Six external flats provide contact surfaces for a suitable spanner or socket.
  • 8mm across flats helps determine tool fit and surrounding clearance.
  • Supplied in Brass to meet the chosen material specification.

Our DIN 934 full hex nuts cover alternative dimensions and materials for matching bolts and threaded rods. If you need help selecting the correct size, call us on 01233 713581.
