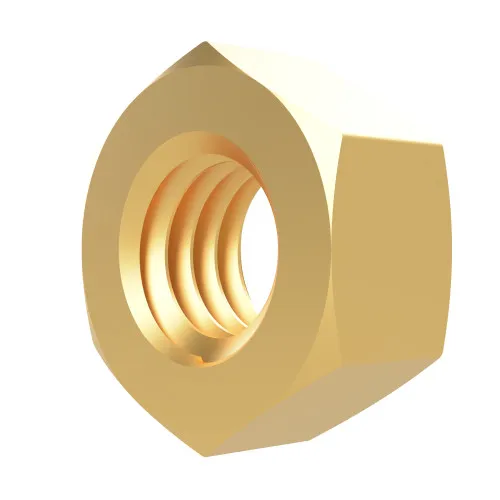

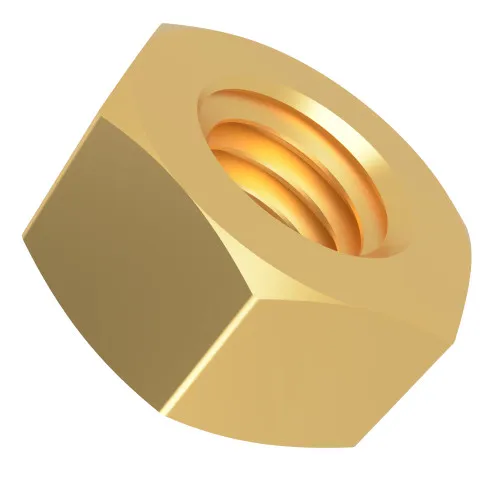

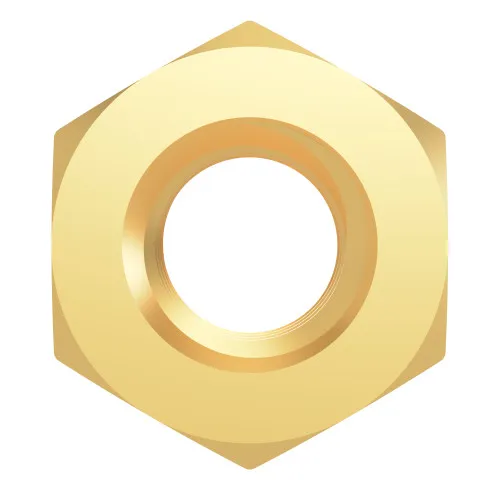

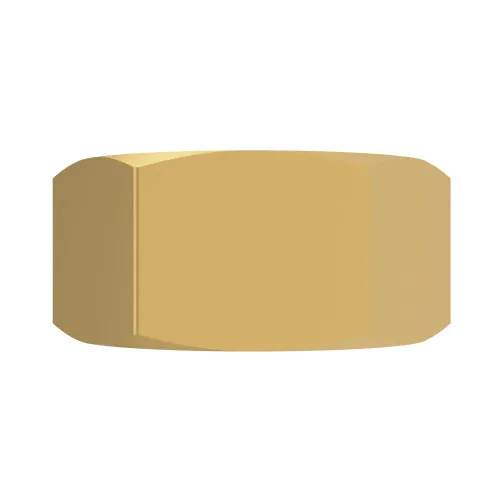

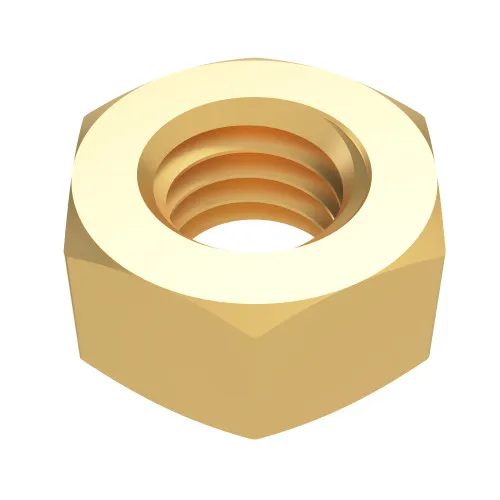

M8 Hex Nut (DIN 934) | Brass

Product code: HN934-M8-BRA
View All Specifications
M8 Hex Nut (DIN 934) | Brass
M8 Hex Nut (DIN 934) | Brass
M8 Hex Nut (DIN 934) | Brass
M8 Hex Nut (DIN 934) | Brass
M8 Hex Nut (DIN 934) | Brass
M8 Hex Nut (DIN 934) | Brass
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.70 £0.84
10 - 49 £0.53 £0.63
50 - 99 £0.44 £0.53
100 - 999 £0.35 £0.42
1000 + £0.27 £0.32

£0.84 / each


Up to 491 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 23,491 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
23,491 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M8
Thread Pitch 1.25mm
Material Brass
Across Flats 13.0mm
Height 6.50mm
Standard DIN 934

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M8 Full Hex Nut (DIN 934) | Brass

This M8 full hex nut has a brass body and an internal metric thread for fastening against a compatible bolt, machine screw or stud. For instrumentation, decorative hardware and general fittings where brass is specified, confirm the mating fastener thread and chosen material are appropriate for the assembly.

What Are Full Hex Nuts?

A DIN 934 hex nut is used on a threaded rod, bolt or compatible machine screw to provide a removable joint. Its hexagonal exterior is designed for tightening with an appropriate hand tool. When comparing nut sizes, the wider selection of hexagonal nuts provides options for other threaded connections. For fastening assemblies, matching threaded bolts and machine screws can be used with flat stainless steel washers when material compatibility is confirmed. A compatible M8 screw and nut assembly requires matching thread pitch and diameter.

Common Applications

  • Machinery Assembly: Fastening compatible M8 bolts through serviceable fittings where the specified Brass is suitable.
  • Instrument Fittings: Securing compatible brass or other appropriately selected threaded parts in fittings and assembly work.
  • Equipment Maintenance: Replacing an existing M8 nut on a compatible threaded rod or screw while checking 13mm spanner clearance.
  • General Engineering: Providing a removable threaded connection for maintenance assemblies with a nut of the specified grade.

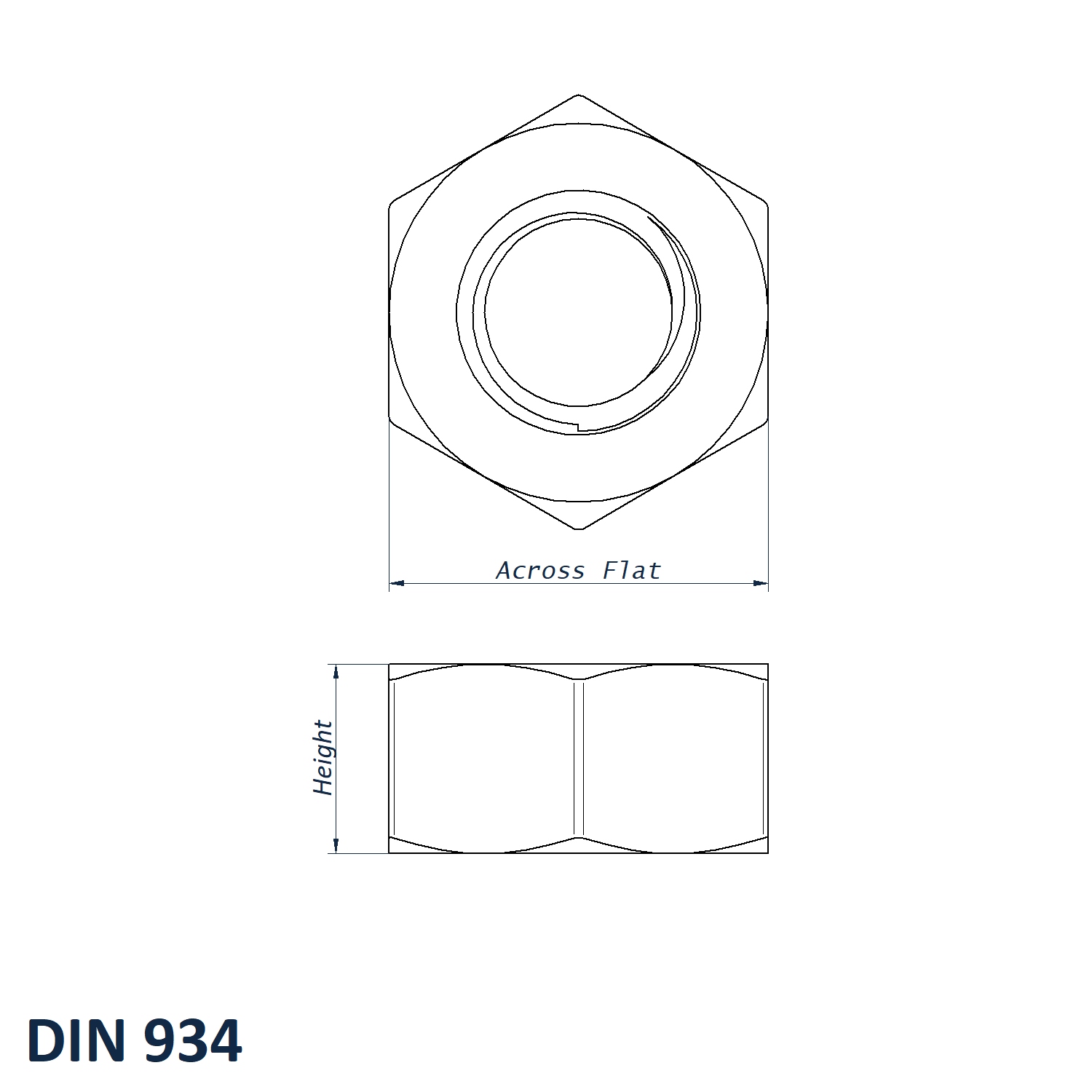

M8 Full Hex Nut Dimensions

  • Thread Size: M8
  • Thread Pitch: 1.25mm
  • Material: Brass
  • Across Flats: 13.0mm
  • Height: 6.50mm
  • Standard: DIN 934

Key Benefits

  • Works with a correctly matched M8 screw, bolt or stud.
  • Six external flats provide contact surfaces for a suitable spanner or socket.
  • 13mm across flats helps determine tool fit and surrounding clearance.
  • 1.25mm pitch provides a measurable reference for checking mating threads.

Other hexagonal fastening nuts provide options for assemblies with different thread and clearance requirements. If you need help selecting the correct size, call us on 01233 713581.
