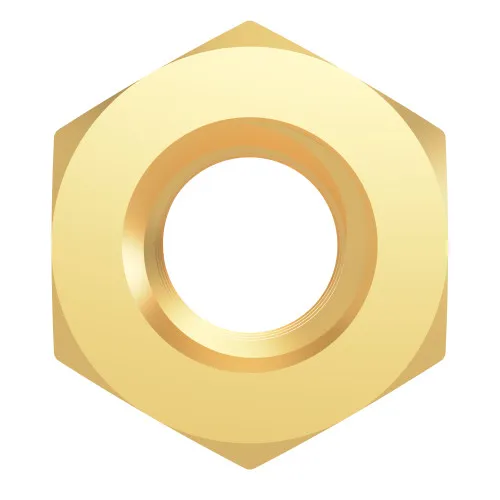

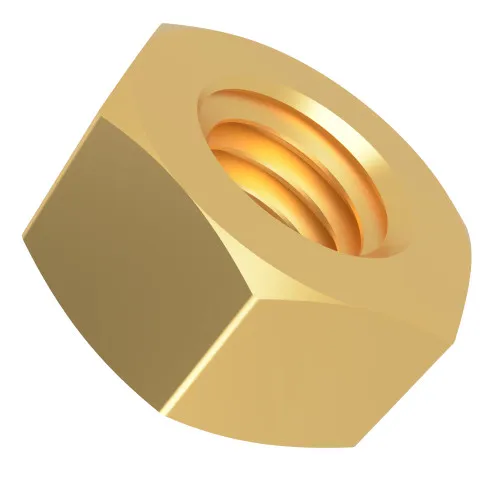

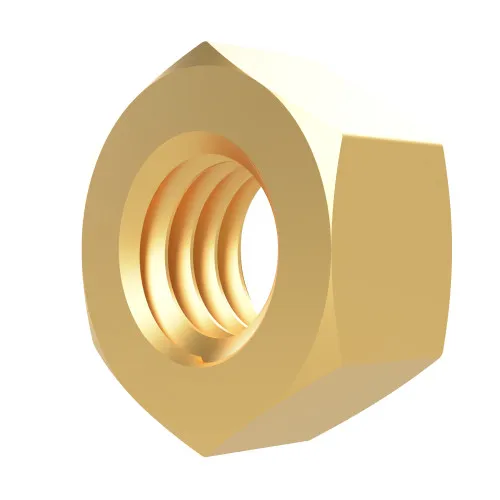

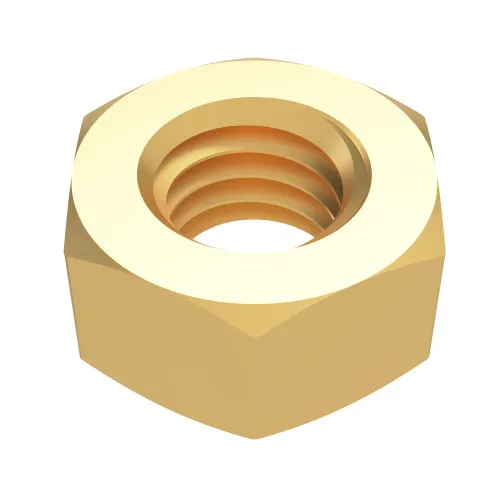

M20 Hex Nut (DIN 934) | Brass

Product code: HN934-M20-BRA
View All Specifications
M20 Hex Nut (DIN 934) | Brass
M20 Hex Nut (DIN 934) | Brass
M20 Hex Nut (DIN 934) | Brass
M20 Hex Nut (DIN 934) | Brass
M20 Hex Nut (DIN 934) | Brass
M20 Hex Nut (DIN 934) | Brass
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.98 £4.78
10 - 49 £3.48 £4.18
50 - 99 £2.99 £3.59
100 - 999 £2.49 £2.99
1000 + £1.99 £2.39

£4.78 / each


Up to 11,900 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
11,900 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M20
Thread Pitch 2.50mm
Material Brass
Across Flats 30.0mm
Height 16.00mm
Standard DIN 934

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M20 Full Hex Nut (DIN 934) | Brass

For a removable M20 threaded connection, this full hexagon nut combines a brass body with the dimensions specified for DIN 934. A 2.50mm thread pitch must correspond to the mating external thread.

What Are Full Hex Nuts?

Full hex nuts are internally threaded fasteners with six external flats. A matching bolt or machine screw passes through an assembly and the nut is tightened to hold the components together. For other thread sizes and material choices, standard hex nuts include alternative hexagonal fastening options. It can be paired with correctly sized machine screws and bolts and suitable stainless steel flat washers where the selected materials are compatible. For a bolt and nut connection, match the M20 thread specification and the selected materials.

Common Applications

  • Machinery Assembly: Fastening compatible M20 bolts through maintenance assemblies where the specified Brass is suitable.
  • Instrument Fittings: Securing compatible brass or other appropriately selected threaded parts in fittings and assembly work.
  • Equipment Maintenance: Replacing an existing M20 nut on a compatible threaded rod or screw while checking 30mm spanner clearance.
  • General Engineering: Providing a removable threaded connection for equipment frames with a nut of the specified grade.

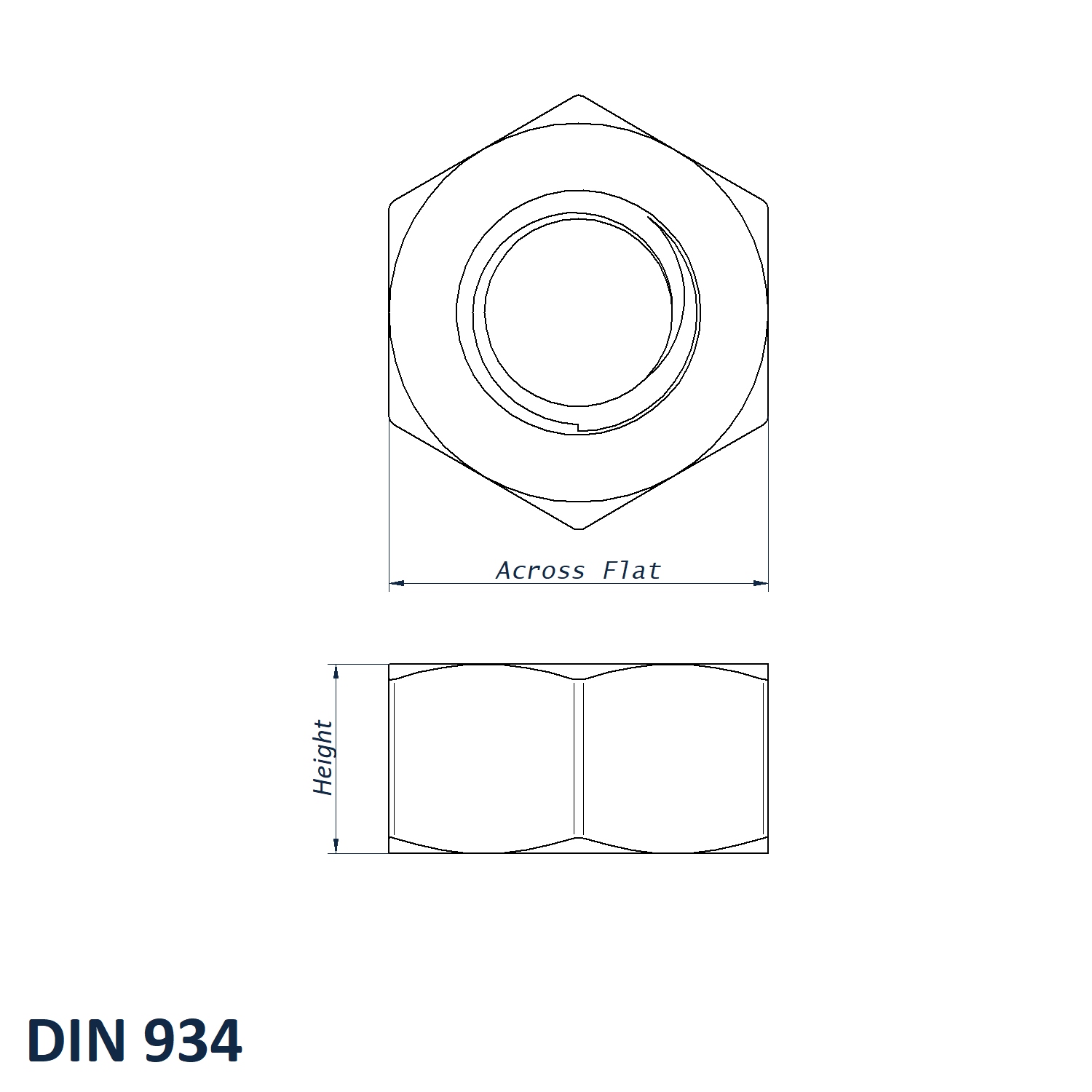

M20 Full Hex Nut Dimensions

  • Thread Size: M20
  • Thread Pitch: 2.50mm
  • Material: Brass
  • Across Flats: 30.0mm
  • Height: 16.00mm
  • Standard: DIN 934

Key Benefits

  • Provides a removable fixing point for M20 externally threaded components.
  • Six external flats provide contact surfaces for a suitable spanner or socket.
  • 30mm across flats helps determine tool fit and surrounding clearance.
  • Its 16mm overall height can be checked when planning thread engagement.

These full hex nuts are available in additional thread sizes and material grades for assemblies using compatible fasteners. If you need help selecting the correct size, call us on 01233 713581.
