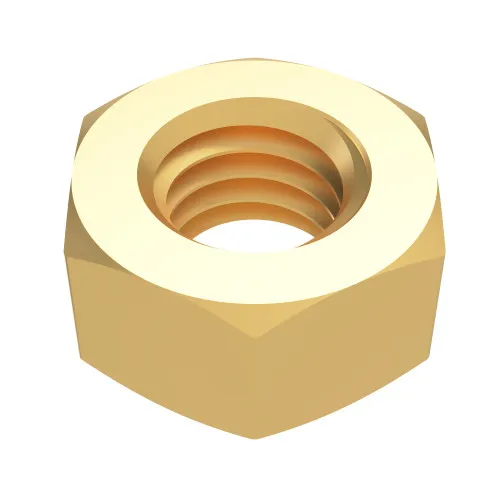

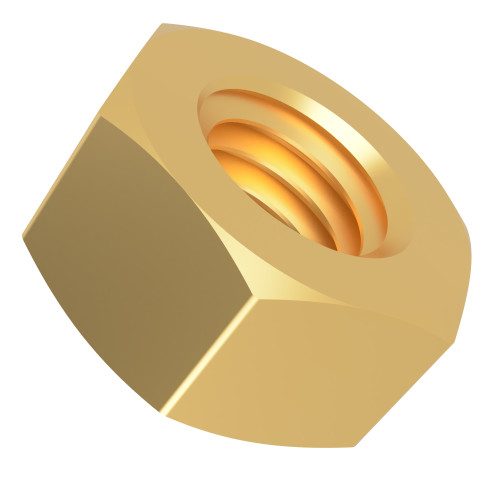

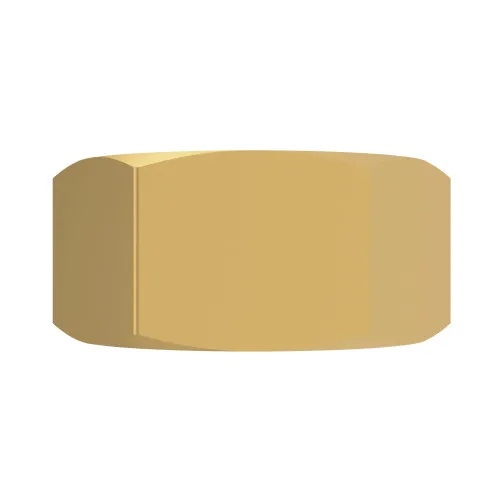

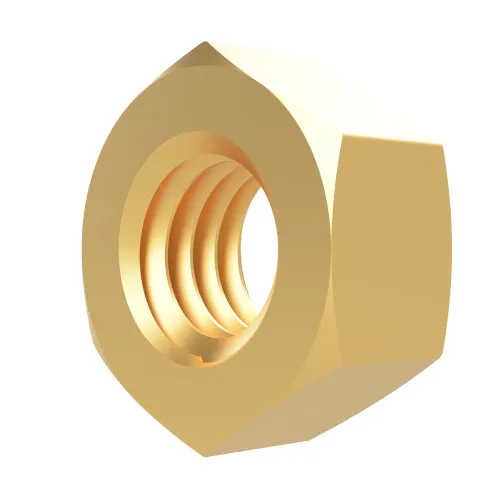

M3.5 Hex Nut (DIN 934) | Brass

Product code: HN934-M3.5-BRA
View All Specifications
M3.5 Hex Nut (DIN 934) | Brass
M3.5 Hex Nut (DIN 934) | Brass
M3.5 Hex Nut (DIN 934) | Brass
M3.5 Hex Nut (DIN 934) | Brass
M3.5 Hex Nut (DIN 934) | Brass
M3.5 Hex Nut (DIN 934) | Brass
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.32 £0.38
10 - 49 £0.21 £0.25
50 - 99 £0.16 £0.19
100 - 999 £0.11 £0.13
1000 + £0.05 £0.06

£0.38 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3.5
Thread Pitch 0.60mm
Material Brass
Across Flats 6.0mm
Height 2.80mm
Standard DIN 934

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3.5 Full Hex Nut (DIN 934) | Brass

For a removable M3.5 threaded connection, this full hexagon nut combines a brass body with the dimensions specified for DIN 934. The 2.80mm nut height can be checked against the available thread engagement and assembly clearance.

What Are Full Hex Nuts?

When a screw or stud needs a separate fastening element, a full hex nut provides internal threads and spanner flats. Ensure thread diameter and pitch correspond before assembly. When comparing nut sizes, the wider selection of hexagonal nuts provides options for other threaded connections. For fastening assemblies, matching threaded bolts and machine screws can be used with flat stainless steel washers when material compatibility is confirmed. Compare metric nut dimensions when replacing a worn or missing fastener.

Common Applications

  • Machinery Assembly: Fastening compatible M3.5 bolts through serviceable fittings where the specified Brass is suitable.
  • Instrument Fittings: Securing compatible brass or other appropriately selected threaded parts in fittings and assembly work.
  • Equipment Maintenance: Replacing an existing M3.5 nut on a compatible threaded rod or screw while checking 6mm spanner clearance.
  • General Engineering: Providing a removable threaded connection for maintenance assemblies with a nut of the specified grade.

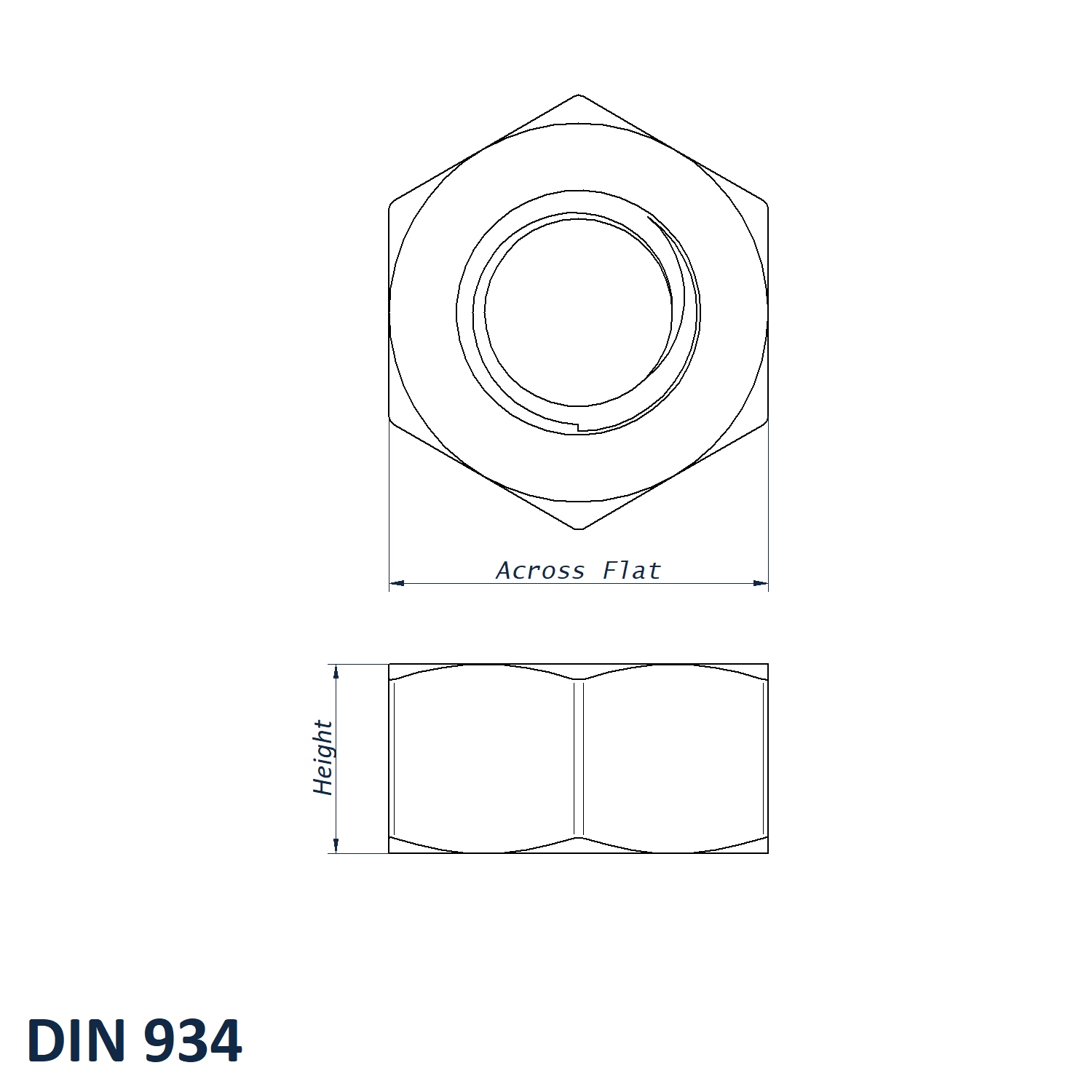

M3.5 Full Hex Nut Dimensions

  • Thread Size: M3.5
  • Thread Pitch: 0.60mm
  • Material: Brass
  • Across Flats: 6.0mm
  • Height: 2.80mm
  • Standard: DIN 934

Key Benefits

  • Works with a correctly matched M3.5 screw, bolt or stud.
  • Six external flats provide contact surfaces for a suitable spanner or socket.
  • 6mm across flats helps determine tool fit and surrounding clearance.
  • 0.60mm pitch provides a measurable reference for checking mating threads.

Other hexagonal fastening nuts provide options for assemblies with different thread and clearance requirements. If you need help selecting the correct size, call us on 01233 713581.
