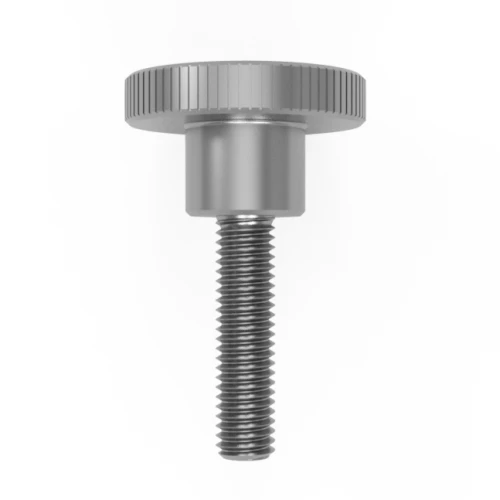

M3 x 10mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M3-10-A1
View All Specifications
M3 x 10mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 10mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 10mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 10mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 10mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 10mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.62 £1.94
10 - 24 £1.07 £1.29
25 - 49 £0.81 £0.97
50 - 99 £0.76 £0.91
100 + £0.68 £0.81

£1.94 / each


Up to 32 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 6,404 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 24,529 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
24,529 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Thread Length 10mm
Pitch 0.50mm
Head Diameter 12.35mm
Head Height 7.5mm
Knurled Height 2.5mm
Shank Diameter 6.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 x 10mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

Designed for adjustable stops and clamping assemblies, this M3 x 10mm knurled thumb screw is manufactured from A1 Stainless Steel to DIN 464. The large knurled head provides a positive finger grip so the fastener can be tightened and released by hand without a screwdriver, spanner or hex key. This size is also relevant when comparing stainless steel thumb screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

DIN 464 Knurled Thumb Screws are hand-operated metric fasteners with a large round head and textured knurled edge. The knurl improves finger grip so the screw can be tightened or loosened without tools which is useful on parts that need regular access, clamping or adjustment.

Common Applications

  • Adjustment Points: Provides a hand-operated threaded fastener for setting positions, stops or clearances.
  • Equipment Housings: Provides an accessible fastening point on machinery covers, cases and instrument enclosures.
  • Maintenance Covers: Makes frequently accessed covers easier to remove and refit without dedicated tools.
  • Jigs and Fixtures: Provides quick manual clamping or repositioning on workshop tooling and production fixtures.

M3 x 10mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M3
  • Thread Length: 10mm
  • Pitch: 0.50mm
  • Head Diameter: 12.35mm
  • Head Height: 7.5mm
  • Knurled Height: 2.5mm
  • Shank Diameter: 6.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • M3 thread size with 10mm thread length provides the primary fastening dimensions.
  • 12.35mm head diameter gives a broad gripping surface for hand operation.
  • 6.0mm shank diameter provides the specified shoulder dimension beneath the head.
  • Large knurled head enables tightening and loosening by hand without a separate driving tool.

View the complete DIN 464 Knurled Thumb Screw range to compare thread sizes, lengths and head dimensions. We also stock a wider Knurled Fasteners range with other hand-operated fastening styles for different applications. If you need help choosing the right size, call us on 01233 713581.
