M3 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.07 | £2.48 |
| 10 - 24 | £1.38 | £1.65 |
| 25 - 49 | £1.03 | £1.24 |
| 50 - 99 | £0.97 | £1.16 |
| 100 + | £0.86 | £1.03 |
£2.48 / each
Product Specification
| Thread Size | M3 |
| Thread Length | 16mm |
| Pitch | 0.50mm |
| Head Diameter | 12.35mm |
| Head Height | 7.5mm |
| Knurled Height | 2.5mm |
| Shank Diameter | 6.0mm |
| Standard | DIN 464 |
| Material | A1 Stainless Steel |
Frequently Bought Together
- Thread Size M3
- Material A1 Stainless Steel
- Thread Pitch 0.50mm
- Head Diameter 12.35mm
- Standard DIN 466
- Head Height 7.5mm
- Material A2 Stainless Steel
- Thickness 0.80mm
- Internal Diameter 3.2mm
- Outside Diameter 9.0mm
- Standard DIN 9021
- Size M3
- Thread Size M3
- Material A2 Stainless Steel
- Height 10.0mm
- Width 20.0mm
- Thread Pitch 0.50mm
- Standard DIN 315
Total Price: £0.00

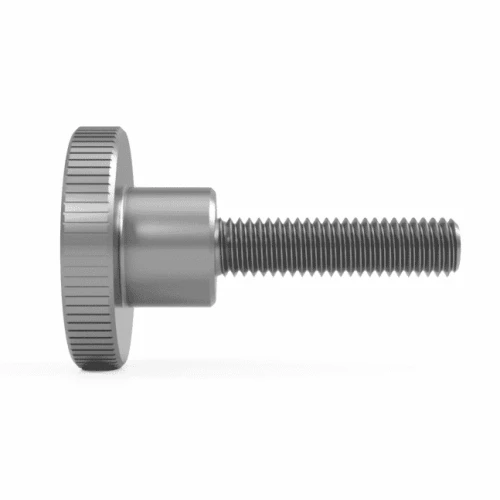

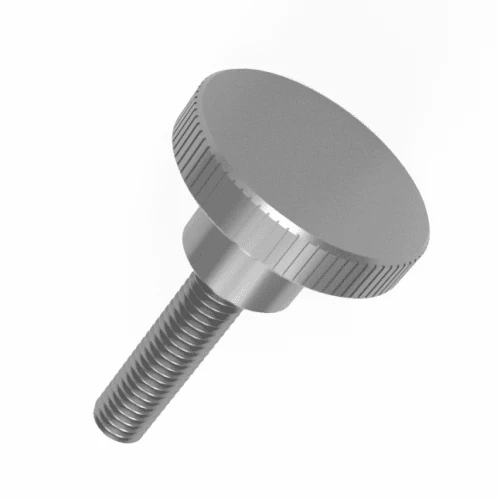

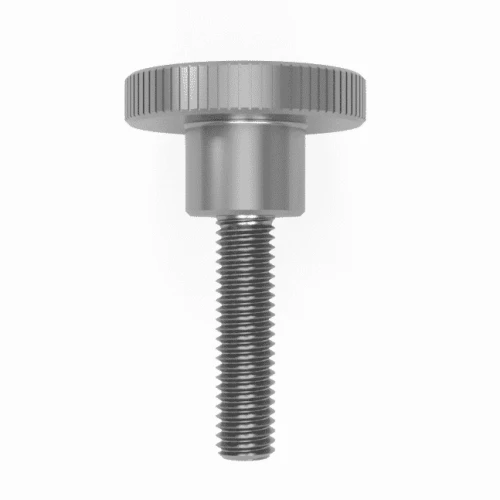

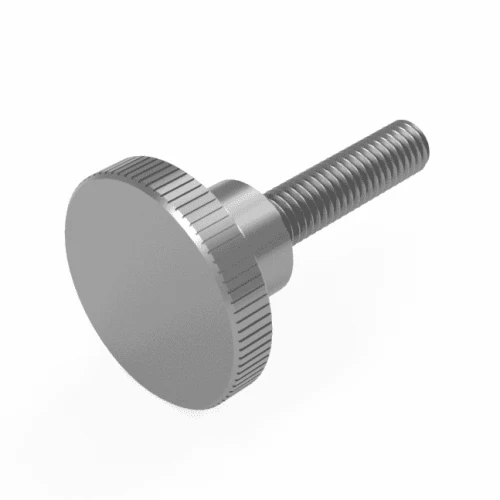

M3 x 16mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel
Made for jigs, fixtures and workshop tooling, this M3 x 16mm knurled thumb screw provides a tool-free fastening option with a textured round head for improved grip. The DIN 464 design also includes a shoulder beneath the head which can provide clearance and a defined contact area around panels or springs. This size is also relevant when comparing knurled hand screw options for compatible threaded assemblies.
What Are DIN 464 Knurled Thumb Screws?
Knurled Hand Screws are designed for manual fastening into compatible internally threaded components. The DIN 464 form combines a large grip head with a shoulder below the head which can provide clearance from a panel and a contact point for suitable springs or assemblies.
Common Applications
- Levelling and Positioning: Can be used in suitable threaded mechanisms where hand adjustment of position or pressure is required.
- Jigs and Fixtures: Provides quick manual clamping or repositioning on workshop tooling and production fixtures.
- Test Equipment: Supports repeated opening, adjustment or repositioning on rigs, laboratory equipment and inspection systems.
- Sprung Assemblies: The shoulder beneath the head can provide a contact area or clearance in compatible spring-loaded arrangements.

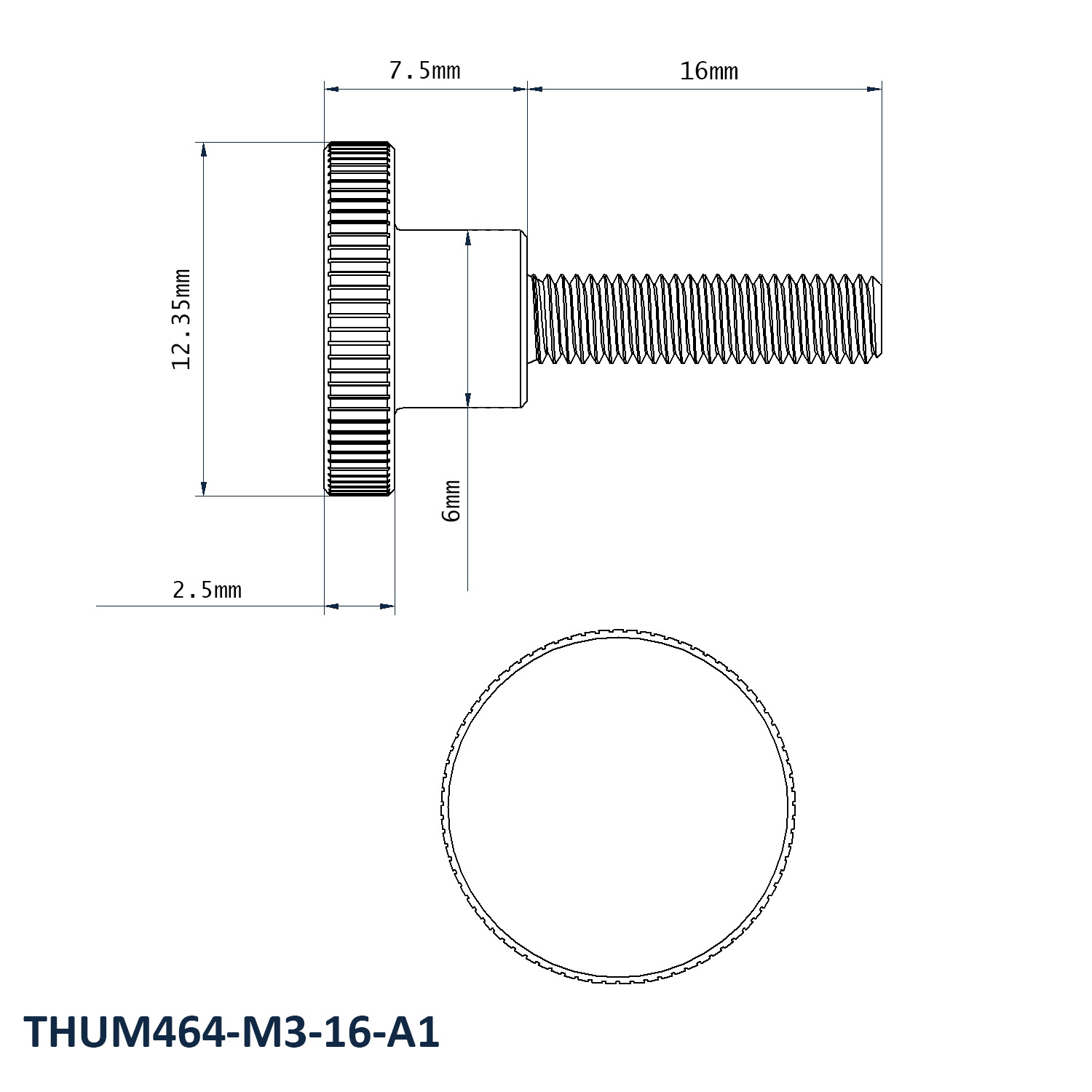

M3 x 16mm DIN 464 Knurled Thumb Screw Dimensions
- Thread Size: M3
- Thread Length: 16mm
- Pitch: 0.50mm
- Head Diameter: 12.35mm
- Head Height: 7.5mm
- Knurled Height: 2.5mm
- Shank Diameter: 6.0mm
- Material: A1 Stainless Steel
- Standard: DIN 464
Key Benefits
- 12.35mm head diameter gives a broad gripping surface for hand operation.
- 2.5mm knurled height provides the textured gripping section around the head circumference.
- DIN 464 manufacture provides a recognised dimensional standard for this knurled thumb screw style.
- M3 thread size with 16mm thread length provides the primary fastening dimensions.
Browse the full DIN 464 Thumb Screw collection for additional thread sizes and lengths. We also offer more styles in our Knurled Fasteners collection if your application needs a different head, nut or fastening format. We can help you select the correct option on 01233 713581.
| Code | Thread Size | Material | Thread Length | Head Diameter | Shank Diameter | Standard | Pitch | Head Height | Knurled Height | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| THUM464-M3-10-A1 | M3 | A1 Stainless Steel | 10mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M3-12-A1 | M3 | A1 Stainless Steel | 12mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M3-16-A1 | M3 | A1 Stainless Steel | 16mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M3-20-A1 | M3 | A1 Stainless Steel | 20mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M3-4-A1 | M3 | A1 Stainless Steel | 4mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M3-5-A1 | M3 | A1 Stainless Steel | 5mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M3-6-A1 | M3 | A1 Stainless Steel | 6mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M3-8-A1 | M3 | A1 Stainless Steel | 8mm | 12.35mm | 6.0mm | DIN 464 | 0.50mm | 7.5mm | 2.5mm |
Checking...
|
|
| THUM464-M4-5-A1 | M4 | A1 Stainless Steel | 5mm | 16.35mm | 8.0mm | DIN 464 | 0.70mm | 9.5mm | 3.5mm |
Checking...
|
|
| THUM464-M4-6-A1 | M4 | A1 Stainless Steel | 6mm | 16.35mm | 8.0mm | DIN 464 | 0.70mm | 9.5mm | 3.5mm |
Checking...
|
|
| THUM464-M4-8-A1 | M4 | A1 Stainless Steel | 8mm | 16.35mm | 8.0mm | DIN 464 | 0.70mm | 9.5mm | 3.5mm |
Checking...
|
|
