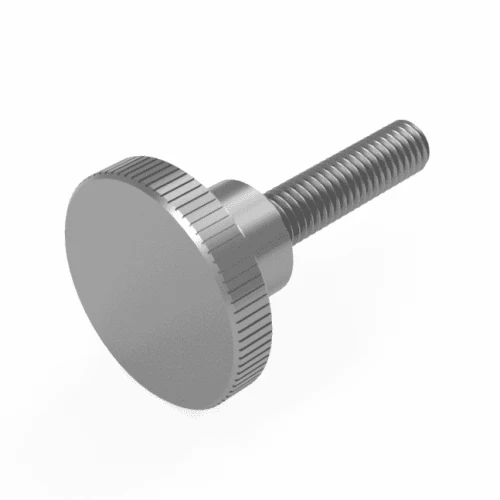

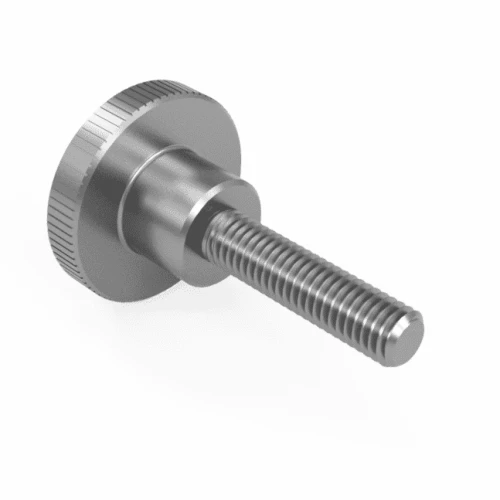

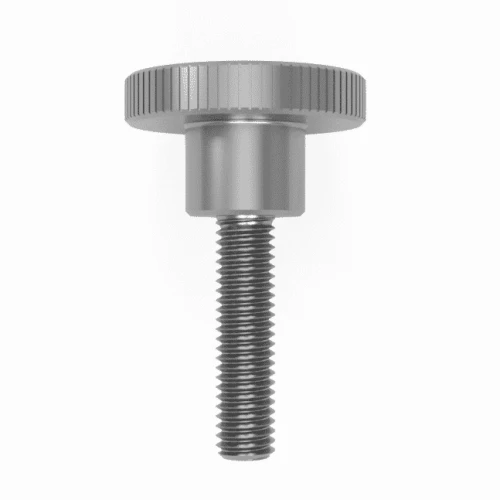

M3 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M3-8-A1
View All Specifications
M3 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.53 £1.84
10 - 24 £1.02 £1.22
25 - 49 £0.77 £0.92
50 - 99 £0.72 £0.86
100 + £0.64 £0.77

£1.84 / each


Up to 15 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 6,915 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 25,315 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
25,315 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Thread Length 8mm
Pitch 0.50mm
Head Diameter 12.35mm
Head Height 7.5mm
Knurled Height 2.5mm
Shank Diameter 6.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 x 8mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

Suitable for instrument housings and control equipment, this M3 x 8mm knurled thumb screw combines a M3 metric thread with a large knurled head for quick manual adjustment. Manufactured to DIN 464 from A1 Stainless Steel, it is useful where a fastening point needs to be opened, repositioned or clamped repeatedly. This size is also relevant when comparing panel thumb screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

A DIN 464 Knurled Screw provides a reusable manual fastening point for panels, fixtures, covers and adjustment mechanisms. Its large textured head is intended to be operated by hand and the stainless steel construction supports repeated installation and removal.

Common Applications

  • Test Equipment: Supports repeated opening, adjustment or repositioning on rigs, laboratory equipment and inspection systems.
  • Workholding: Can be used for manual clamping in suitable fixtures where fast changes are required.
  • Levelling and Positioning: Can be used in suitable threaded mechanisms where hand adjustment of position or pressure is required.
  • Control Panels: Secures removable panels and covers that may require repeated access for inspection or maintenance.

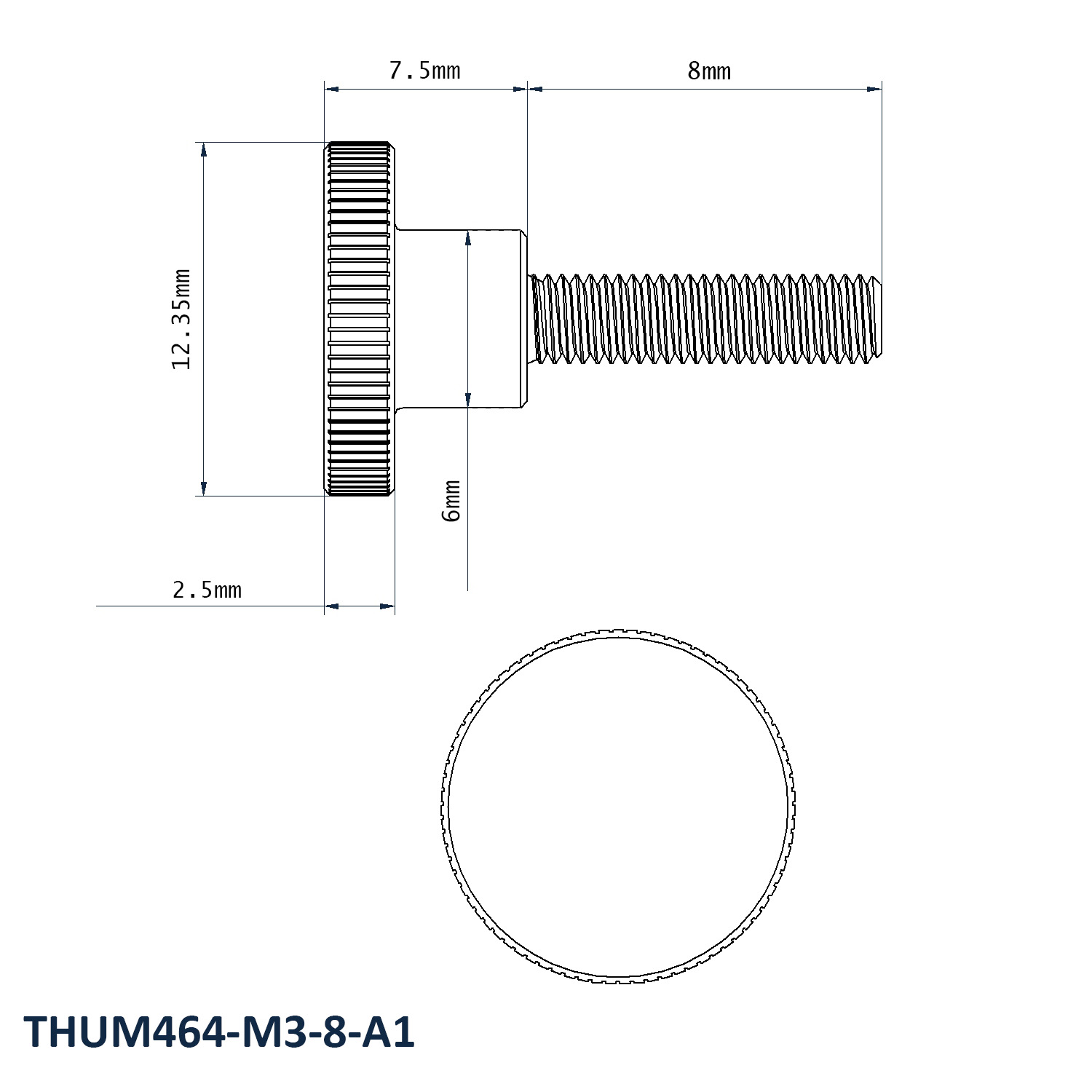

M3 x 8mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M3
  • Thread Length: 8mm
  • Pitch: 0.50mm
  • Head Diameter: 12.35mm
  • Head Height: 7.5mm
  • Knurled Height: 2.5mm
  • Shank Diameter: 6.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • DIN 464 manufacture provides a recognised dimensional standard for this knurled thumb screw style.
  • Shoulder beneath the head can provide stand-off from the mating surface and suit compatible panel or spring arrangements.
  • 12.35mm head diameter gives a broad gripping surface for hand operation.
  • 6.0mm shank diameter provides the specified shoulder dimension beneath the head.

Compare more metric sizes in our Knurled Thumb Screw DIN 464 range. For other manual fastening options, take a look at our complete Knurled Fasteners range. If you are unsure which thread or length suits your application, contact our team on 01233 713581.
