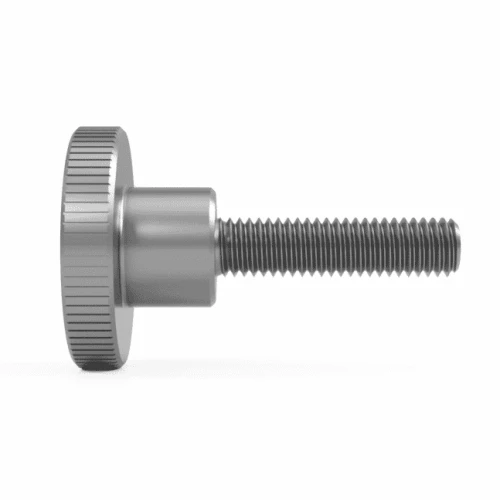

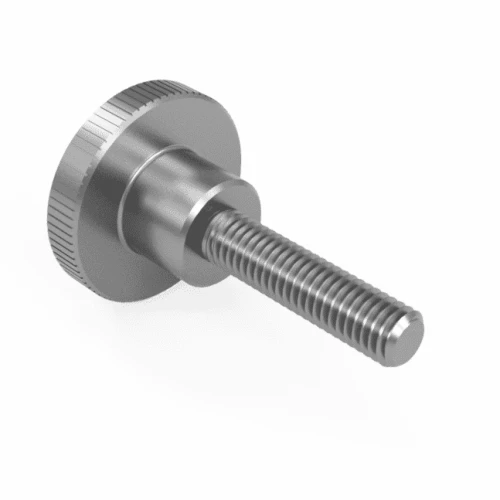

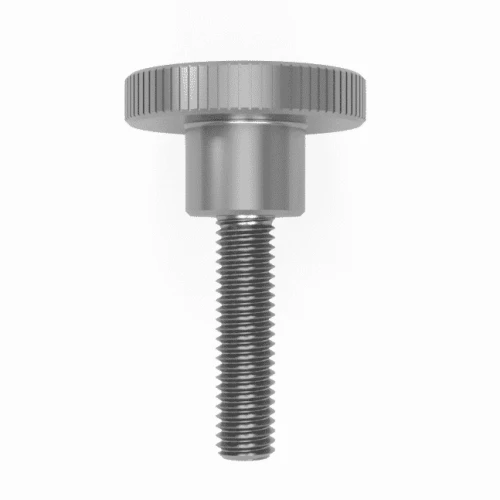

M4 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M4-8-A1
View All Specifications
M4 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.00 £2.40
10 - 24 £1.33 £1.60
25 - 49 £1.00 £1.20
50 - 99 £0.93 £1.12
100 + £0.83 £1.00

£2.40 / each


Up to 48 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 3,348 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 54,686 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
54,686 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M4
Thread Length 8mm
Pitch 0.70mm
Head Diameter 16.35mm
Head Height 9.5mm
Knurled Height 3.5mm
Shank Diameter 8.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M4 x 8mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

For manual positioning and adjustment points, this M4 x 8mm knurled thumb screw offers convenient hand tightening without sacrificing a defined metric thread. The A1 Stainless Steel construction supports durable repeated use while the knurled circumference makes the head easier to grip during adjustment. This size is also relevant when comparing tool-free thumb screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

A DIN 464 Knurled Screw provides a reusable manual fastening point for panels, fixtures, covers and adjustment mechanisms. Its large textured head is intended to be operated by hand and the stainless steel construction supports repeated installation and removal.

Common Applications

  • Levelling and Positioning: Can be used in suitable threaded mechanisms where hand adjustment of position or pressure is required.
  • Jigs and Fixtures: Provides quick manual clamping or repositioning on workshop tooling and production fixtures.
  • Test Equipment: Supports repeated opening, adjustment or repositioning on rigs, laboratory equipment and inspection systems.
  • Sprung Assemblies: The shoulder beneath the head can provide a contact area or clearance in compatible spring-loaded arrangements.

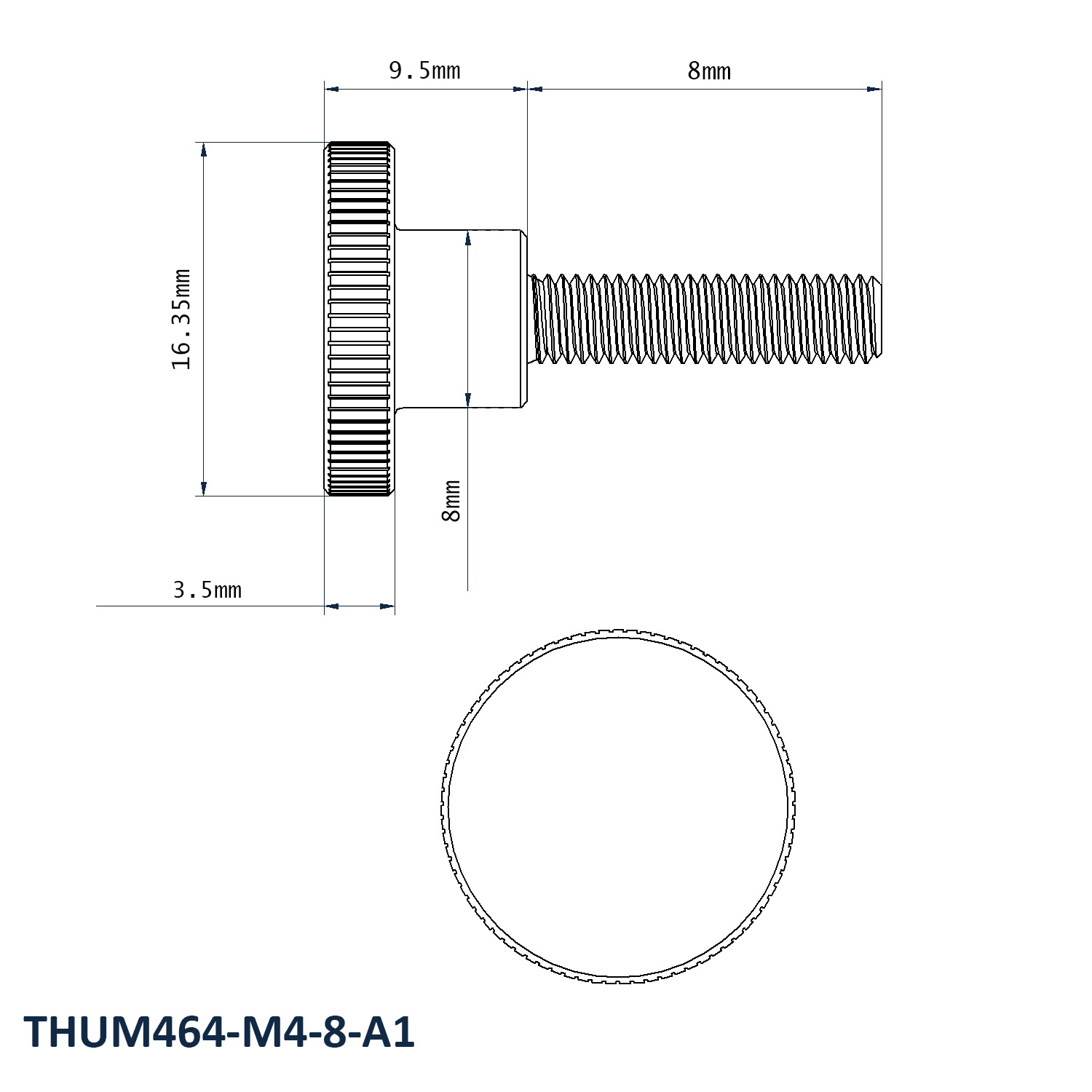

M4 x 8mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M4
  • Thread Length: 8mm
  • Pitch: 0.70mm
  • Head Diameter: 16.35mm
  • Head Height: 9.5mm
  • Knurled Height: 3.5mm
  • Shank Diameter: 8.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • 8.0mm shank diameter provides the specified shoulder dimension beneath the head.
  • DIN 464 manufacture provides a recognised dimensional standard for this knurled thumb screw style.
  • M4 thread size with 8mm thread length provides the primary fastening dimensions.
  • 9.5mm head height provides the stated DIN 464 head profile.

See our wider Stainless Steel Knurled Thumb Screw range for more DIN 464 dimensions. You can compare this DIN 464 design with other hand-tightened products in our wider Knurled Fasteners range. For product-selection support, speak with our team on 01233 713581.
