M3 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M3-5-A1
View All Specifications
M3 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.92 £2.30
10 - 24 £1.27 £1.53
25 - 49 £0.96 £1.15
50 - 99 £0.89 £1.07
100 + £0.80 £0.96

£2.30 / each


Up to 50 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 1,350 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 18,588 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
18,588 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Thread Length 5mm
Pitch 0.50mm
Head Diameter 12.35mm
Head Height 7.5mm
Knurled Height 2.5mm
Shank Diameter 6.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 x 5mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

Providing quick manual fastening for equipment covers and access panels, this M3 x 5mm knurled thumb screw uses a wide knurled head to transfer turning force through the fingers. The A1 Stainless Steel body and DIN 464 dimensions make it suitable for threaded components used in clamping, levelling and adjustment work. This size is also relevant when comparing grip head screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

Thumb Screws are commonly used where an operator needs to release or reposition a component frequently. The knurled head provides a secure hand grip while the machine thread engages a matching tapped hole or threaded component.

Common Applications

  • Maintenance Covers: Makes frequently accessed covers easier to remove and refit without dedicated tools.
  • Machine Guards: Allows guards and access covers to be secured while still permitting regular tool-free removal.
  • Adjustment Points: Provides a hand-operated threaded fastener for setting positions, stops or clearances.
  • Workholding: Can be used for manual clamping in suitable fixtures where fast changes are required.

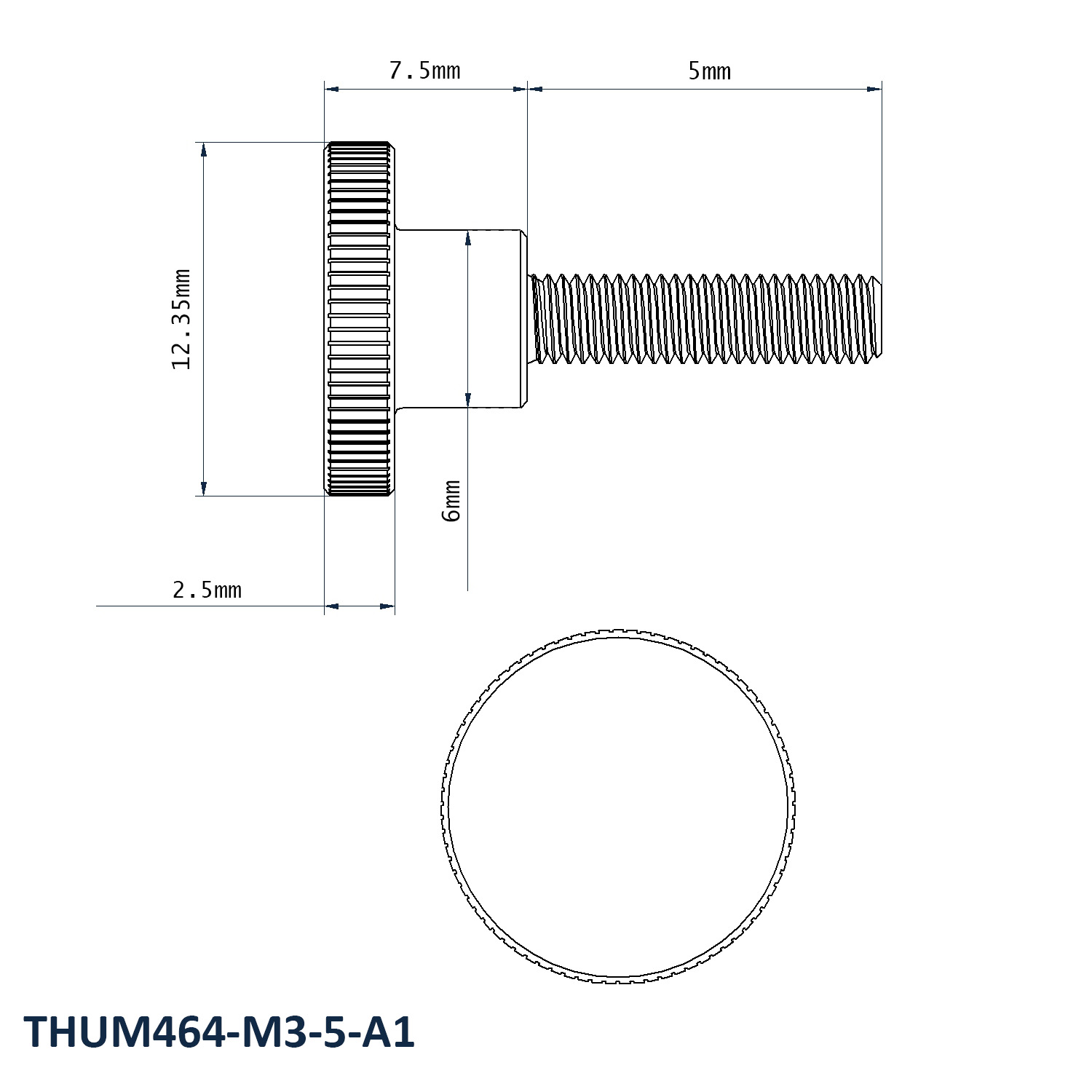

M3 x 5mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M3
  • Thread Length: 5mm
  • Pitch: 0.50mm
  • Head Diameter: 12.35mm
  • Head Height: 7.5mm
  • Knurled Height: 2.5mm
  • Shank Diameter: 6.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • 6.0mm shank diameter provides the specified shoulder dimension beneath the head.
  • DIN 464 manufacture provides a recognised dimensional standard for this knurled thumb screw style.
  • M3 thread size with 5mm thread length provides the primary fastening dimensions.
  • 7.5mm head height provides the stated DIN 464 head profile.

Find other sizes in our DIN 464 Knurled Screw range. If this head style is not the right fit, we also have other products available in our Knurled Fasteners category. If you need help matching the screw to a threaded component, contact our team on 01233 713581.
