M4 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M4-5-A1
View All Specifications
M4 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M4 x 5mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.97 £2.36
10 - 24 £1.31 £1.57
25 - 49 £0.98 £1.18
50 - 99 £0.92 £1.10
100 + £0.82 £0.98

£2.36 / each


Up to 42 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 65 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 2,165 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
2,165 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M4
Thread Length 5mm
Pitch 0.70mm
Head Diameter 16.35mm
Head Height 9.5mm
Knurled Height 3.5mm
Shank Diameter 8.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M4 x 5mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

Suitable for industrial controls and equipment housings, this M4 x 5mm knurled thumb screw combines a M4 metric thread with a large knurled head for quick manual adjustment. Manufactured to DIN 464 from A1 Stainless Steel, it is useful where a fastening point needs to be opened, repositioned or clamped repeatedly. This size is also relevant when comparing DIN 464 thumb screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

Thumb Screws are commonly used where an operator needs to release or reposition a component frequently. The knurled head provides a secure hand grip while the machine thread engages a matching tapped hole or threaded component.

Common Applications

  • Adjustment Points: Provides a hand-operated threaded fastener for setting positions, stops or clearances.
  • Equipment Housings: Provides an accessible fastening point on machinery covers, cases and instrument enclosures.
  • Maintenance Covers: Makes frequently accessed covers easier to remove and refit without dedicated tools.
  • Jigs and Fixtures: Provides quick manual clamping or repositioning on workshop tooling and production fixtures.

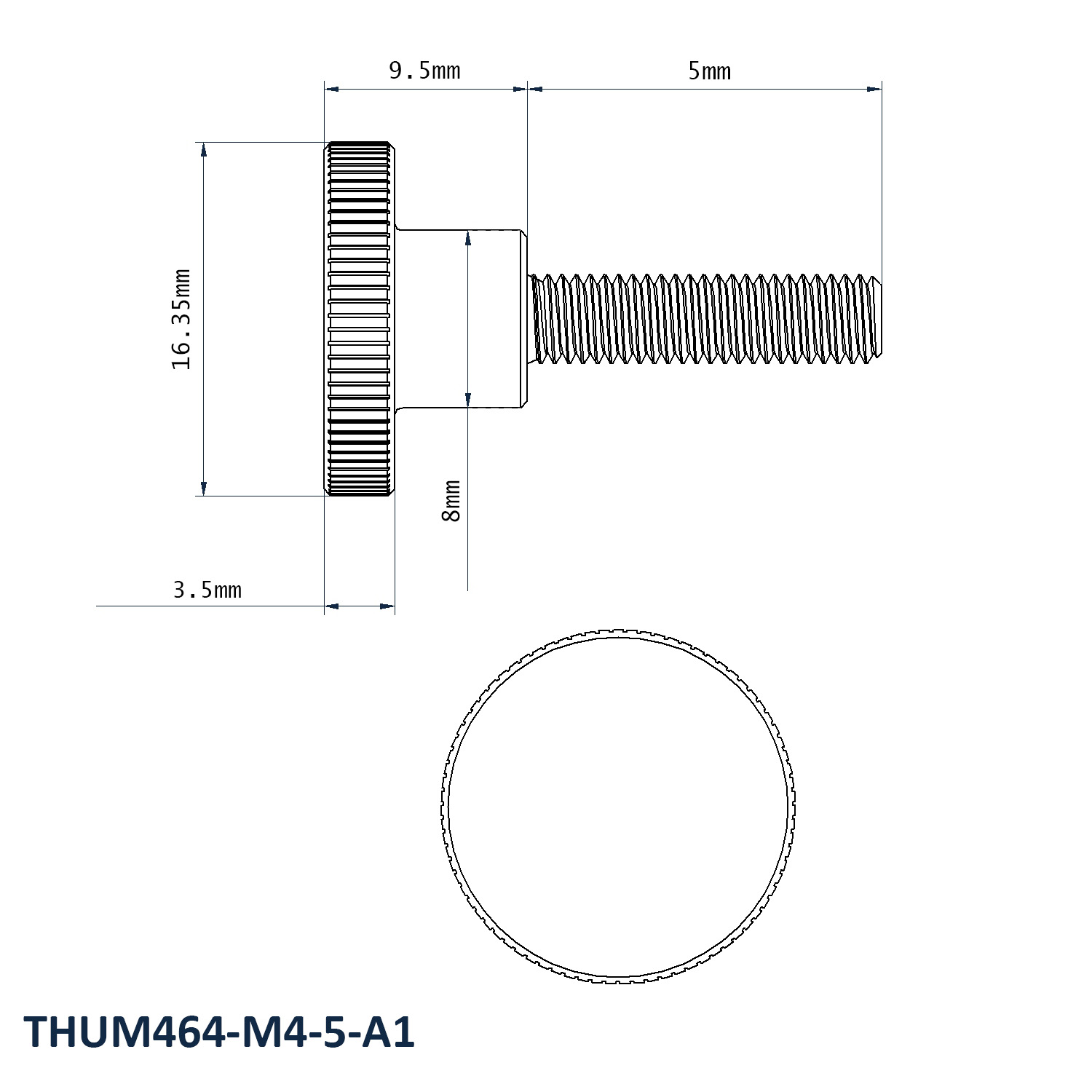

M4 x 5mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M4
  • Thread Length: 5mm
  • Pitch: 0.70mm
  • Head Diameter: 16.35mm
  • Head Height: 9.5mm
  • Knurled Height: 3.5mm
  • Shank Diameter: 8.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • 9.5mm head height provides the stated DIN 464 head profile.
  • 8.0mm shank diameter provides the specified shoulder dimension beneath the head.
  • Large knurled head enables tightening and loosening by hand without a separate driving tool.
  • 0.70mm metric pitch matches the specified DIN 464 thread for this size.

Compare more metric sizes in our Knurled Thumb Screw DIN 464 range. For other manual fastening options, take a look at our complete Knurled Fasteners range. If you are unsure which thread or length suits your application, contact our team on 01233 713581.
