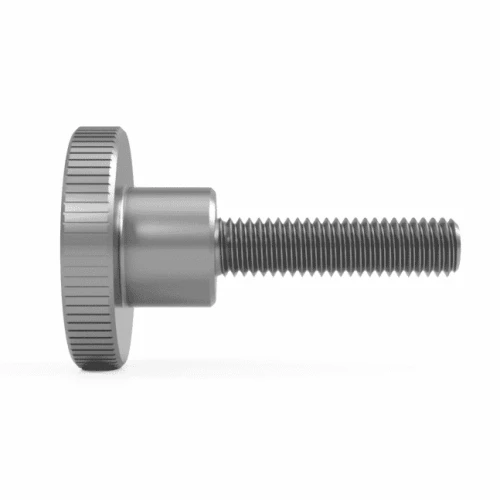

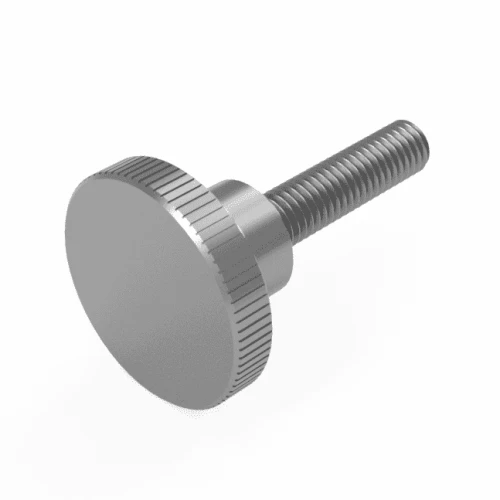

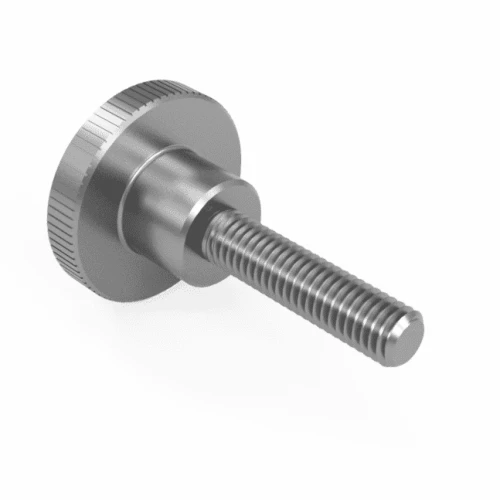

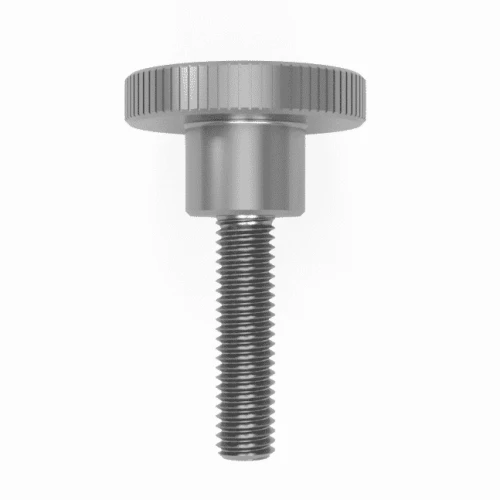

M3 x 4mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M3-4-A1
View All Specifications
M3 x 4mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 4mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 4mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 4mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 4mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M3 x 4mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.22 £2.66
10 - 24 £1.48 £1.77
25 - 49 £1.11 £1.33
50 - 99 £1.03 £1.24
100 + £0.93 £1.11

£2.66 / each


Up to 135 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 635 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 6,548 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
6,548 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Thread Length 4mm
Pitch 0.50mm
Head Diameter 12.35mm
Head Height 7.5mm
Knurled Height 2.5mm
Shank Diameter 6.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 x 4mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

This M3 x 4mm knurled thumb screw is suited to repeated-access fastening points where regular access or position changes make a conventional tool-driven screw less convenient. Its DIN 464 knurled head can be turned by hand while the shoulder beneath the head provides additional stand-off from the mating surface. This size is also relevant when comparing manual clamping screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

Thumb Screws are commonly used where an operator needs to release or reposition a component frequently. The knurled head provides a secure hand grip while the machine thread engages a matching tapped hole or threaded component.

Common Applications

  • Equipment Housings: Provides an accessible fastening point on machinery covers, cases and instrument enclosures.
  • Sprung Assemblies: The shoulder beneath the head can provide a contact area or clearance in compatible spring-loaded arrangements.
  • Machine Guards: Allows guards and access covers to be secured while still permitting regular tool-free removal.
  • Adjustment Points: Provides a hand-operated threaded fastener for setting positions, stops or clearances.

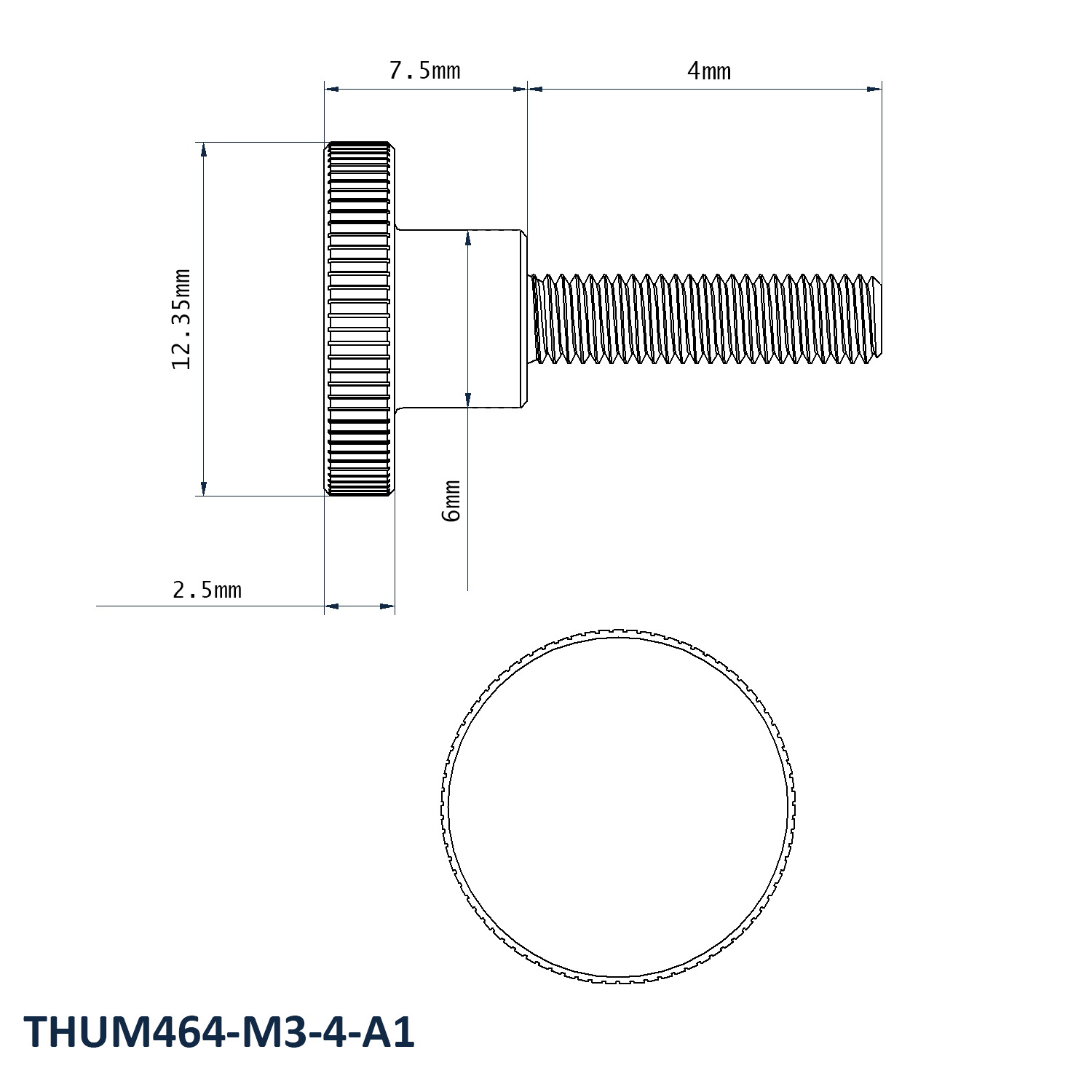

M3 x 4mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M3
  • Thread Length: 4mm
  • Pitch: 0.50mm
  • Head Diameter: 12.35mm
  • Head Height: 7.5mm
  • Knurled Height: 2.5mm
  • Shank Diameter: 6.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • 2.5mm knurled height provides the textured gripping section around the head circumference.
  • A1 Stainless Steel construction supports repeated manual use and provides corrosion resistance for general engineering applications.
  • Shoulder beneath the head can provide stand-off from the mating surface and suit compatible panel or spring arrangements.
  • 12.35mm head diameter gives a broad gripping surface for hand operation.

Explore the complete Knurled Hand Screw DIN 464 range for other metric sizes. Our broader Knurled Fasteners range includes additional options for manual clamping, adjustment and repeated-access fastening. If you need technical sizing help, call us on 01233 713581.
