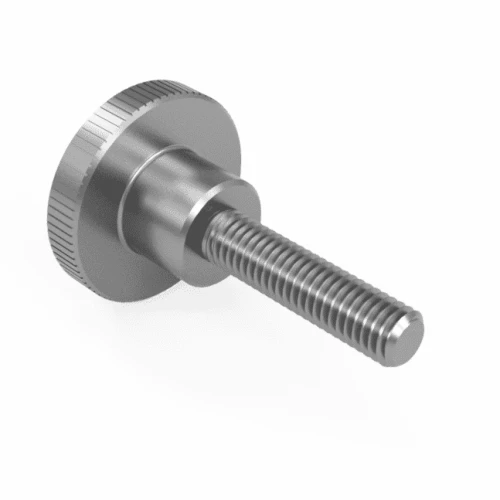

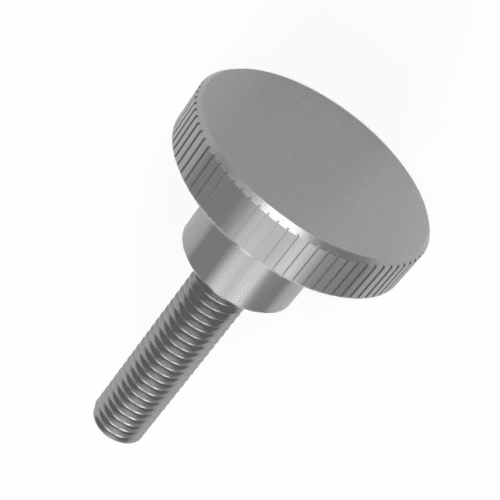

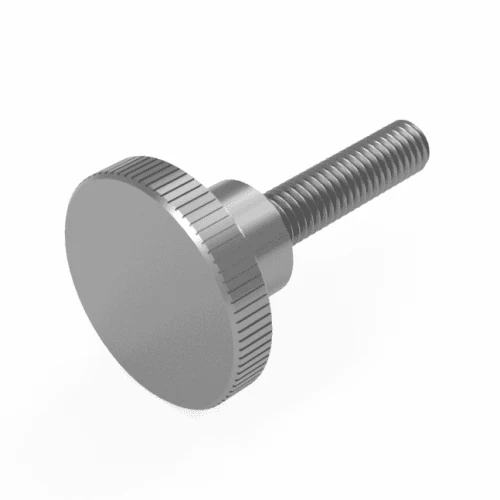

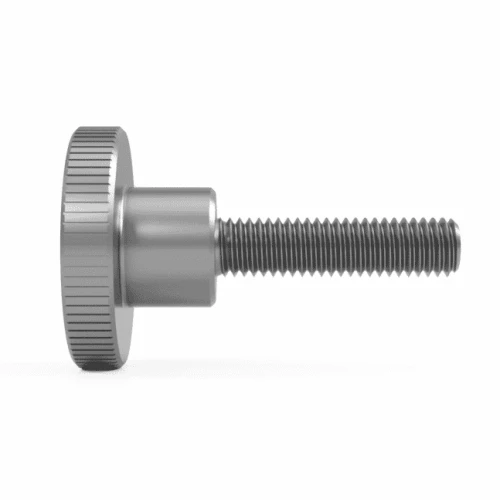

M5 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M5-16-A1
View All Specifications
M5 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M5 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M5 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M5 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M5 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M5 x 16mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.70 £4.44
10 - 24 £2.47 £2.96
25 - 49 £1.85 £2.22
50 - 99 £1.73 £2.07
100 + £1.54 £1.85

£4.44 / each


Up to 3 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 3,188 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 13,951 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
13,951 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M5
Thread Length 16mm
Pitch 0.80mm
Head Diameter 20.42mm
Head Height 11.5mm
Knurled Height 4.0mm
Shank Diameter 10.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M5 x 16mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

Designed for repeated-access fastening points, this M5 x 16mm knurled thumb screw is manufactured from A1 Stainless Steel to DIN 464. The large knurled head provides a positive finger grip so the fastener can be tightened and released by hand without a screwdriver, spanner or hex key. This size is also relevant when comparing hand tightening screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

Knurled Hand Screws are designed for manual fastening into compatible internally threaded components. The DIN 464 form combines a large grip head with a shoulder below the head which can provide clearance from a panel and a contact point for suitable springs or assemblies.

Common Applications

  • Levelling and Positioning: Can be used in suitable threaded mechanisms where hand adjustment of position or pressure is required.
  • Jigs and Fixtures: Provides quick manual clamping or repositioning on workshop tooling and production fixtures.
  • Test Equipment: Supports repeated opening, adjustment or repositioning on rigs, laboratory equipment and inspection systems.
  • Sprung Assemblies: The shoulder beneath the head can provide a contact area or clearance in compatible spring-loaded arrangements.

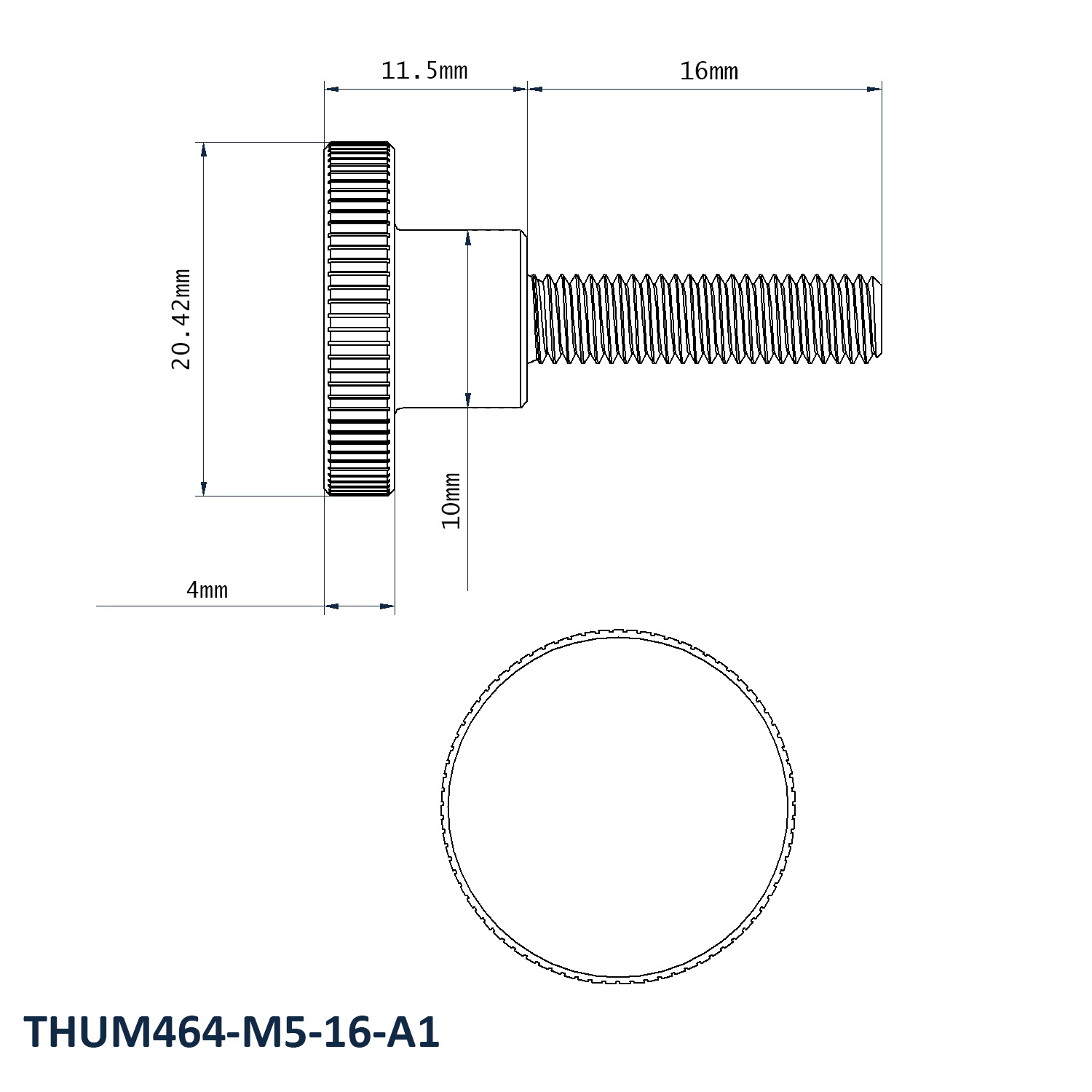

M5 x 16mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M5
  • Thread Length: 16mm
  • Pitch: 0.80mm
  • Head Diameter: 20.42mm
  • Head Height: 11.5mm
  • Knurled Height: 4.0mm
  • Shank Diameter: 10.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • Large knurled head enables tightening and loosening by hand without a separate driving tool.
  • M5 thread size with 16mm thread length provides the primary fastening dimensions.
  • 11.5mm head height provides the stated DIN 464 head profile.
  • A1 Stainless Steel construction supports repeated manual use and provides corrosion resistance for general engineering applications.

View the complete DIN 464 Knurled Thumb Screw range to compare thread sizes, lengths and head dimensions. We also stock a wider Knurled Fasteners range with other hand-operated fastening styles for different applications. If you need help choosing the right size, call us on 01233 713581.
