M5 x 8mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.17 | £3.81 |
| 10 - 24 | £2.12 | £2.54 |
| 25 - 49 | £1.59 | £1.91 |
| 50 - 99 | £1.48 | £1.78 |
| 100 + | £1.32 | £1.59 |
£3.81 / each
.png)
Product Specification
| Thread Size | M5 |
| Thread Length | 8mm |
| Pitch | 0.80mm |
| Head Diameter | 20.42mm |
| Head Height | 11.5mm |
| Knurled Height | 4.0mm |
| Shank Diameter | 10.0mm |
| Standard | DIN 464 |
| Material | A1 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M5 x 8mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel
Providing quick manual fastening for machine guards and removable panels, this M5 x 8mm knurled thumb screw uses a wide knurled head to transfer turning force through the fingers. The A1 Stainless Steel body and DIN 464 dimensions make it suitable for threaded components used in clamping, levelling and adjustment work. This size is also relevant when comparing knurled fastening screw options for compatible threaded assemblies.
What Are DIN 464 Knurled Thumb Screws?
A DIN 464 Knurled Screw provides a reusable manual fastening point for panels, fixtures, covers and adjustment mechanisms. Its large textured head is intended to be operated by hand and the stainless steel construction supports repeated installation and removal.
Common Applications
- Test Equipment: Supports repeated opening, adjustment or repositioning on rigs, laboratory equipment and inspection systems.
- Workholding: Can be used for manual clamping in suitable fixtures where fast changes are required.
- Levelling and Positioning: Can be used in suitable threaded mechanisms where hand adjustment of position or pressure is required.
- Control Panels: Secures removable panels and covers that may require repeated access for inspection or maintenance.

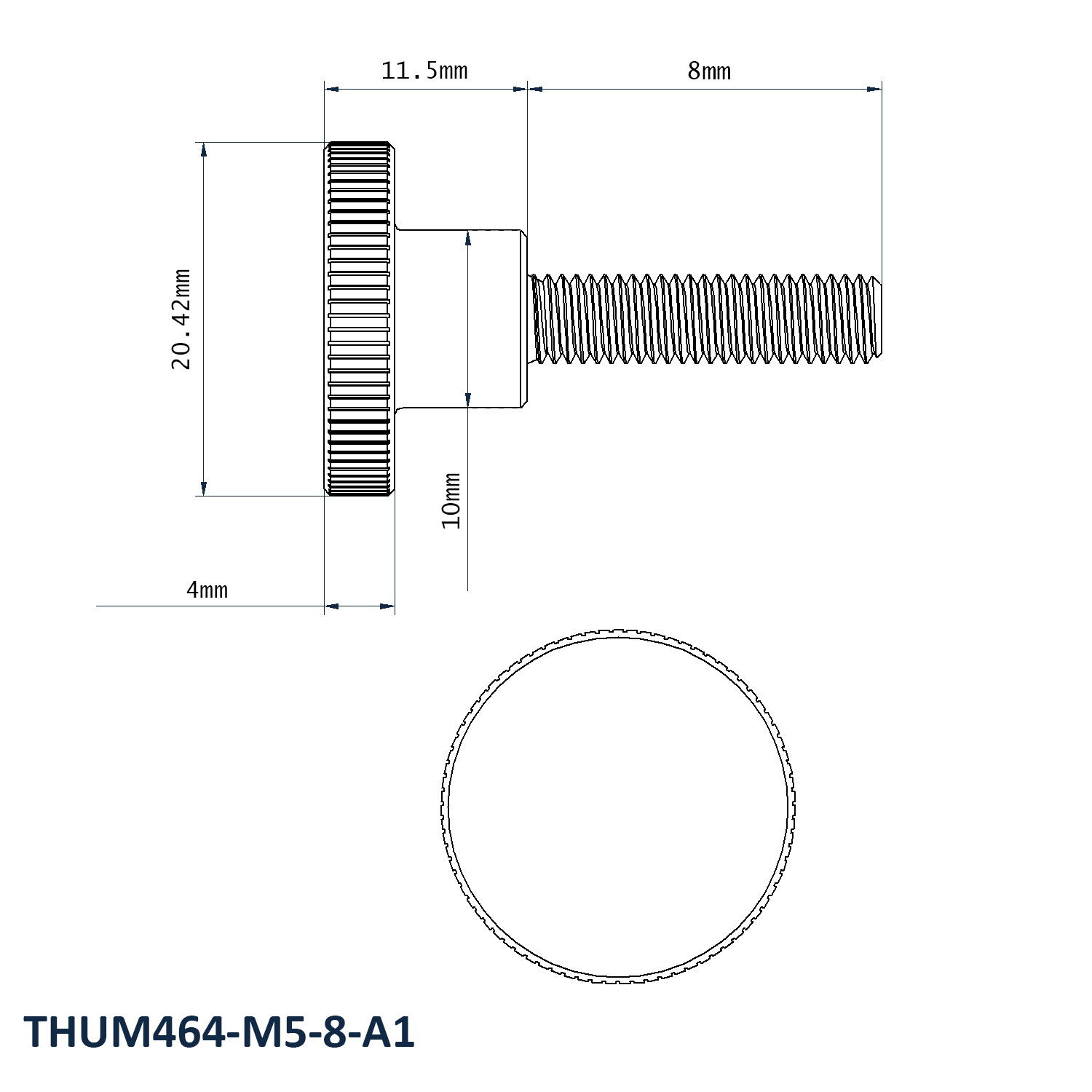

M5 x 8mm DIN 464 Knurled Thumb Screw Dimensions
- Thread Size: M5
- Thread Length: 8mm
- Pitch: 0.80mm
- Head Diameter: 20.42mm
- Head Height: 11.5mm
- Knurled Height: 4.0mm
- Shank Diameter: 10.0mm
- Material: A1 Stainless Steel
- Standard: DIN 464
Key Benefits
- 11.5mm head height provides the stated DIN 464 head profile.
- 10.0mm shank diameter provides the specified shoulder dimension beneath the head.
- Large knurled head enables tightening and loosening by hand without a separate driving tool.
- 0.80mm metric pitch matches the specified DIN 464 thread for this size.
Find other sizes in our DIN 464 Knurled Screw range. If this head style is not the right fit, we also have other products available in our Knurled Fasteners category. If you need help matching the screw to a threaded component, contact our team on 01233 713581.
