M8 x 20mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M8-20-A1
View All Specifications
M8 x 20mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M8 x 20mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M8 x 20mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M8 x 20mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M8 x 20mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M8 x 20mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £8.61 £10.33
10 - 24 £5.74 £6.89
25 - 49 £4.30 £5.16
50 - 99 £4.02 £4.82
100 + £3.58 £4.30

£10.33 / each


Up to 2 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 87 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 4,500 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
4,500 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M8
Thread Length 20mm
Pitch 1.25mm
Head Diameter 30.42mm
Head Height 18.0mm
Knurled Height 6.0mm
Shank Diameter 16.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M8 x 20mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

For test rigs and inspection equipment, this M8 x 20mm knurled thumb screw offers convenient hand tightening without sacrificing a defined metric thread. The A1 Stainless Steel construction supports durable repeated use while the knurled circumference makes the head easier to grip during adjustment. This size is also relevant when comparing adjustment thumb screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

DIN 464 Knurled Thumb Screws are hand-operated metric fasteners with a large round head and textured knurled edge. The knurl improves finger grip so the screw can be tightened or loosened without tools which is useful on parts that need regular access, clamping or adjustment.

Common Applications

  • Sprung Assemblies: The shoulder beneath the head can provide a contact area or clearance in compatible spring-loaded arrangements.
  • Levelling and Positioning: Can be used in suitable threaded mechanisms where hand adjustment of position or pressure is required.
  • Control Panels: Secures removable panels and covers that may require repeated access for inspection or maintenance.
  • Equipment Housings: Provides an accessible fastening point on machinery covers, cases and instrument enclosures.

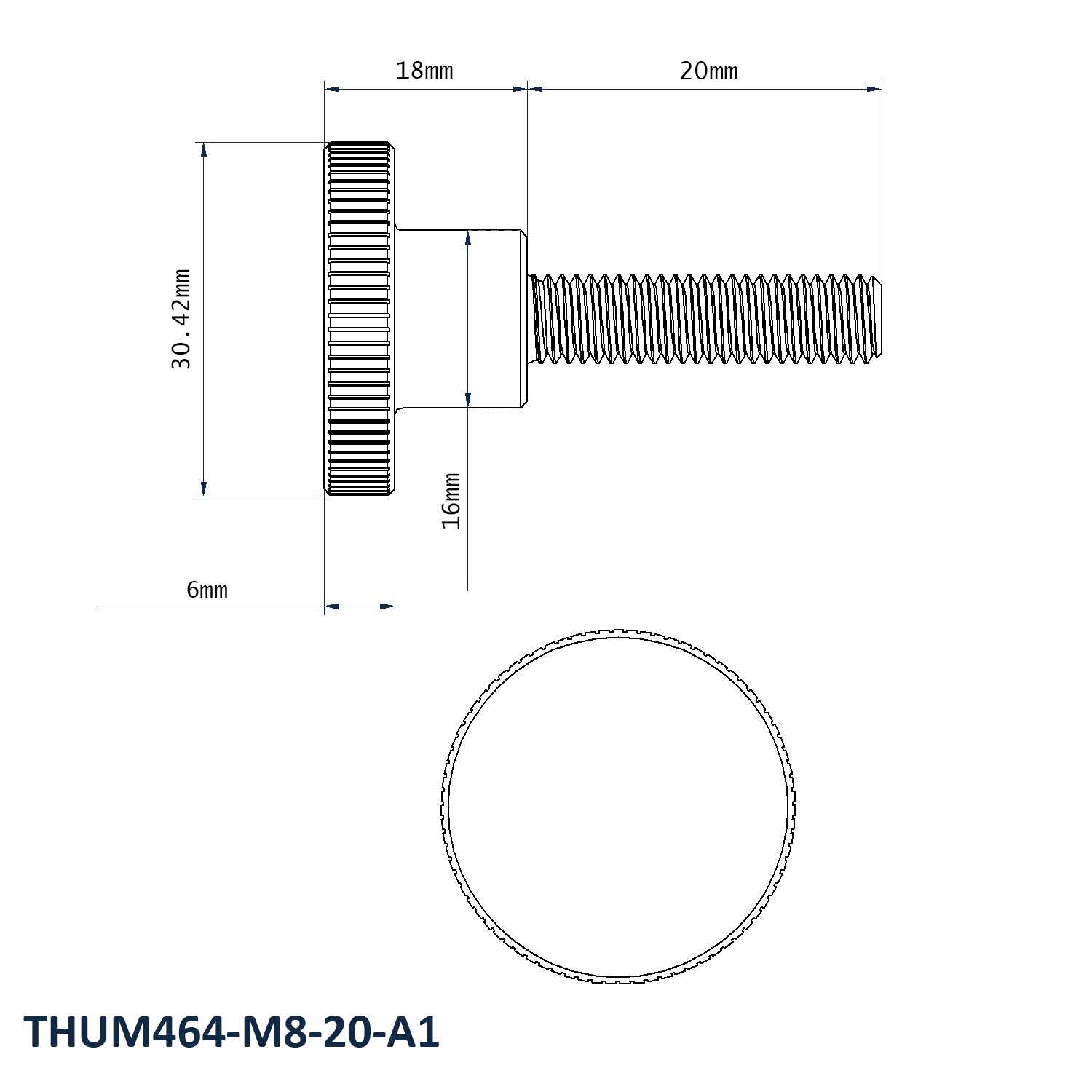

M8 x 20mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M8
  • Thread Length: 20mm
  • Pitch: 1.25mm
  • Head Diameter: 30.42mm
  • Head Height: 18.0mm
  • Knurled Height: 6.0mm
  • Shank Diameter: 16.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • 18.0mm head height provides the stated DIN 464 head profile.
  • 16.0mm shank diameter provides the specified shoulder dimension beneath the head.
  • Large knurled head enables tightening and loosening by hand without a separate driving tool.
  • 1.25mm metric pitch matches the specified DIN 464 thread for this size.

See our wider Stainless Steel Knurled Thumb Screw range for more DIN 464 dimensions. You can compare this DIN 464 design with other hand-tightened products in our wider Knurled Fasteners range. For product-selection support, speak with our team on 01233 713581.
