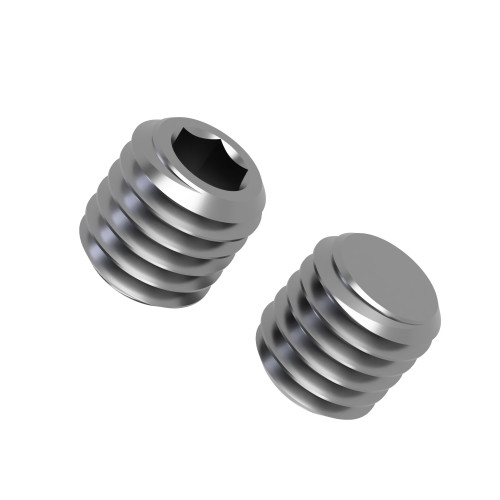

M10 x 25mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.31 | £0.37 |
| 100 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.25 | £0.30 |
| 1000 - 4999 | £0.21 | £0.25 |
| 5000 - 9999 | £0.18 | £0.22 |
| 10000 + | £0.17 | £0.21 |
Product Specification
| Thread Size | M10 |
| Length | 25.0mm |
| Pitch | 1.50.0mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Flat Point Socket Grub Screw | H5 Drive | Class 45H Steel BZP
Built around the DIN 913 / ISO 4026 standard, this M10 x 25mm socket set screw is suited to inspection station builds. It combines a compact threaded body with a flat point for reliable seating inside collars, hubs and adjustable parts. Engineers often select this headless set screw when supports neat retention where access is limited in measuring fixtures, gauges and inspection benches.
The BZP finish gives a bright zinc plated surface for indoor equipment and maintenance applications where high hardness and value are important. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Measuring fixtures, gauges and inspection benches using a M10 x 25mm flat point set screw
- Inspection gauges and calibration fixtures
- Furniture or display hardware requiring concealed fixing
- Light engineering assemblies with removable set points
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H5 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

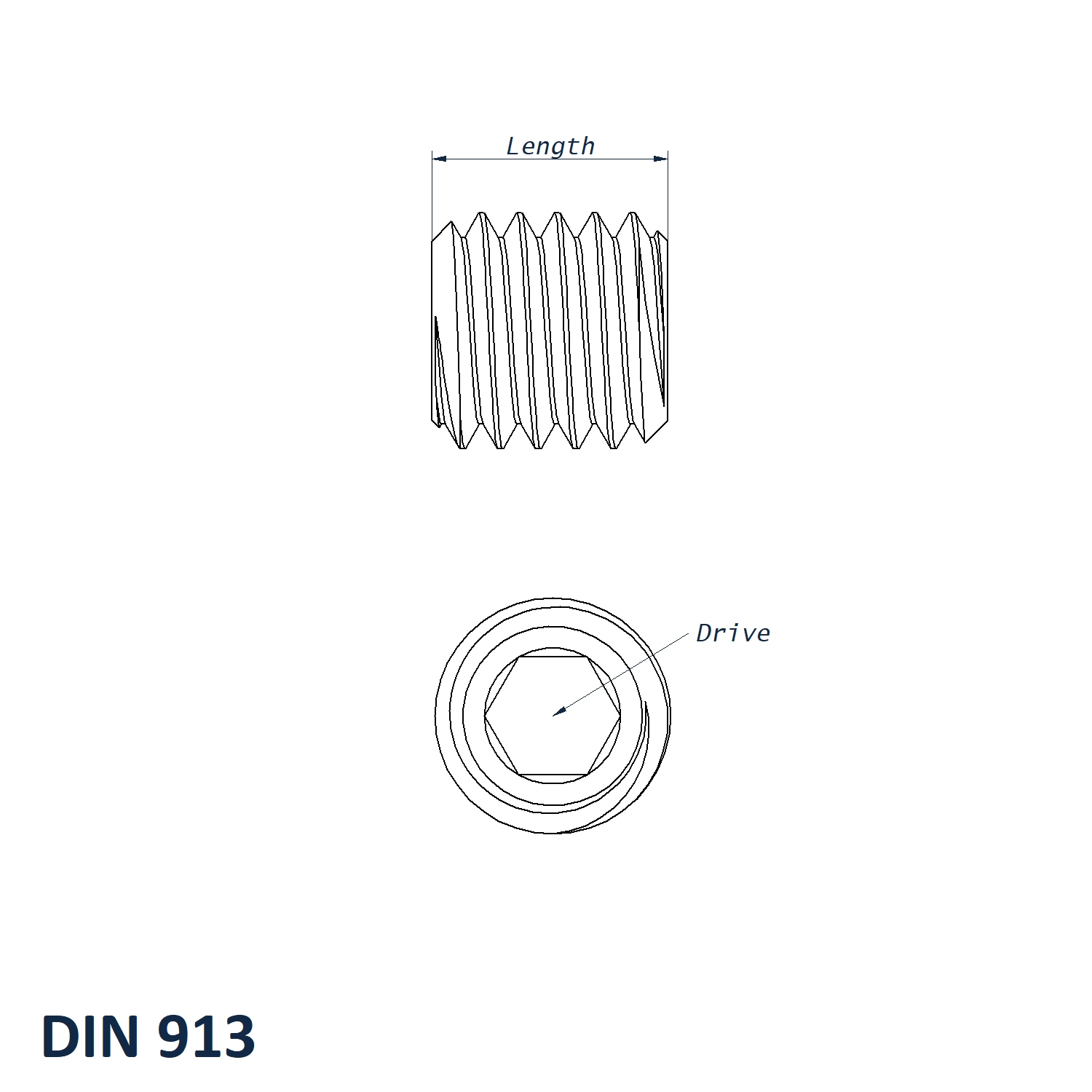

M10 x 25mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 25mm
- Pitch: 1.50.0mm
- End Type: Flat
- Drive: H5
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
