M10 Wing Nut DIN 315 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.40 | £0.48 |
| 100 - 999 | £0.35 | £0.42 |
| 1000 - 2499 | £0.31 | £0.37 |
| 2500 + | £0.23 | £0.28 |
Product Specification
| Thread Size | M10 |
| Thread Pitch | 1.50mm |
| Width | 36.2mm |
| Height | 17.3mm |
| Material | A2 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00

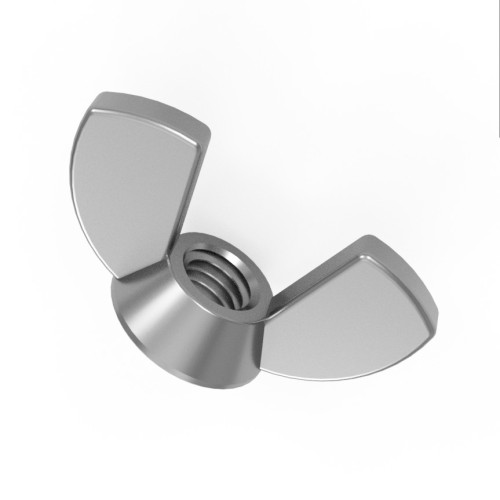

M10 Wing Nut DIN 315 -A2 Stainless Steel (304) -36.2mm Wide
The M10 AA2 Stainless Steel Wing Nut measures 36.2mm across the wings and is a heavy-duty butterfly nut -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for heavy-duty access panels, structural clamps, industrial equipment guards and outdoor frameworks where a large butterfly nut must hold securely under significant operational load. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
A2 stainless steel (grade 304 / 18-8) provides good corrosion resistance for general industrial, outdoor and lightly corrosive environments. At 36.2mm wide with a 17.3mm height, the wing profile delivers substantial hand-tightening torque. A countersunk bearing face seats stably against the clamping surface to prevent rotation under load. DIN 315 compliant -dimensionally consistent with any compatible M10 bolt or threaded rod at 1.5mm pitch.
Common Applications
- Heavy-duty access panel and inspection hatch tool-free retention
- Industrial machinery guard and safety cover fastening
- Structural clamp and outdoor framework hand-tightened assembly
- Marine and coastal equipment installation and maintenance fastening

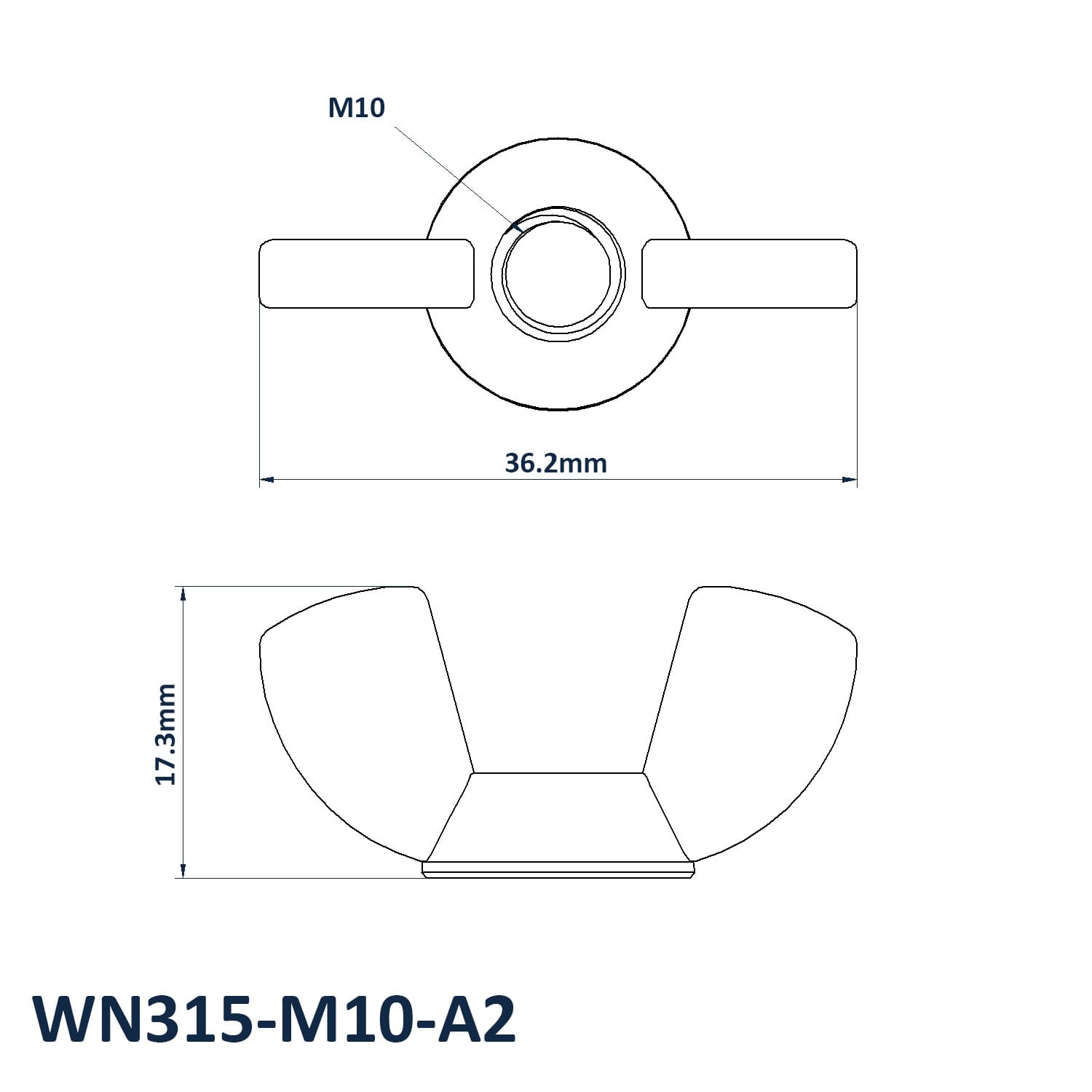

M10 A2 Wing Nut Dimensions
- Thread Size: M10
- Thread Pitch: 1.5mm
- Width: 36.2mm
- Height: 17.3mm
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
