M6 Wing Nut DIN 315 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.13 | £0.16 |
| 100 - 999 | £0.11 | £0.13 |
| 1000 - 5999 | £0.10 | £0.12 |
| 6000 + | £0.07 | £0.09 |
Product Specification
| Thread Size | M6 |
| Thread Pitch | 1.00mm |
| Width | 27.8mm |
| Height | 13.6mm |
| Material | A2 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00
M6 Wing Nut DIN 315 -A2 Stainless Steel (304) -27.8mm Wide
The M6 AA2 Stainless Steel Wing Nut -27.8mm wide and one of the most frequently specified butterfly nuts in UK engineering -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for one of the most widely used sizes across UK engineering -general machinery, access panels, clamps and adjustable fixtures from light to medium industrial applications. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
Made from A2 stainless steel (304 / 18-8) for reliable corrosion resistance across general engineering environments -indoor workshop use, light outdoor exposure and moderate moisture or chemical contact. The wing profile at 27.8mm wide gives good leverage for hand-tightening, and the countersunk bearing face ensures a stable, flush seating against the clamping surface. DIN 315 compliant -fits any compatible metric M6 bolt, threaded rod or machine screw with a 1mm pitch.
Common Applications
- Machinery guard and safety cover hand-tightened retention
- General engineering access panel and inspection cover fastening
- Clamp and jig fixture adjustment requiring frequent removal
- Agricultural and workshop equipment panel hand-tight fastening

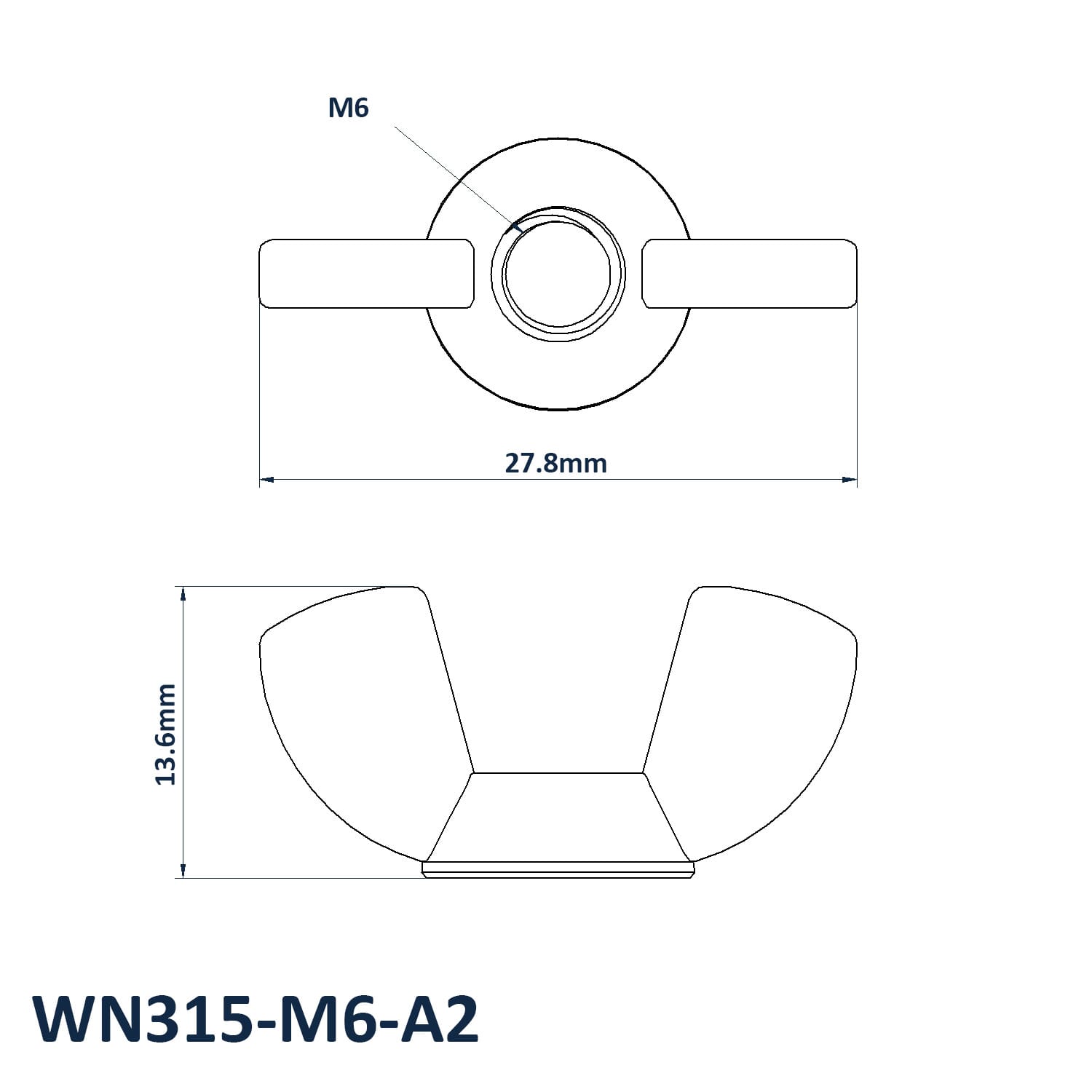

M6 A2 Wing Nut Dimensions
- Thread Size: M6
- Thread Pitch: 1mm
- Width: 27.8mm
- Height: 13.6mm
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
