M12 Wing Nut DIN 315 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.83 | £1.00 |
| 100 - 499 | £0.78 | £0.93 |
| 500 - 999 | £0.71 | £0.85 |
| 1000 + | £0.57 | £0.69 |
Product Specification
| Thread Size | M12 |
| Thread Pitch | 1.75mm |
| Width | 49.4mm |
| Height | 22.3mm |
| Material | A2 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00

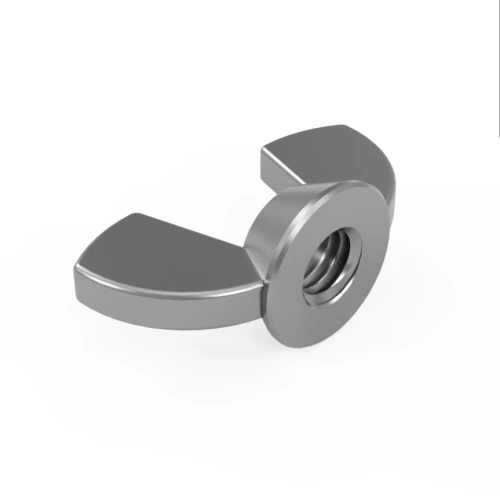

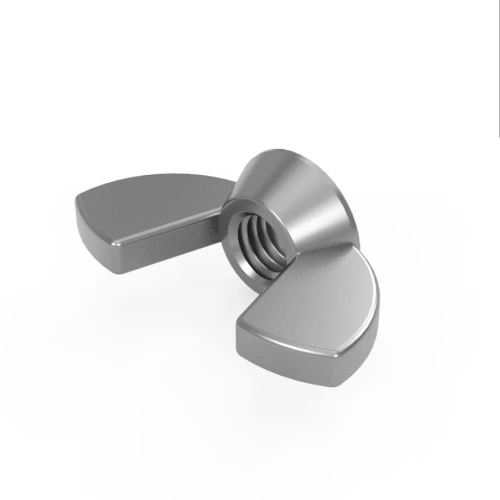

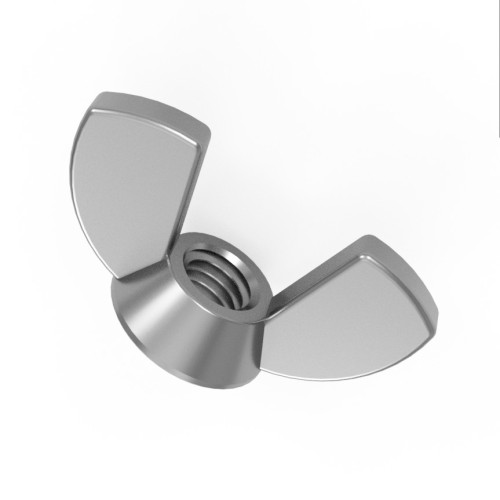

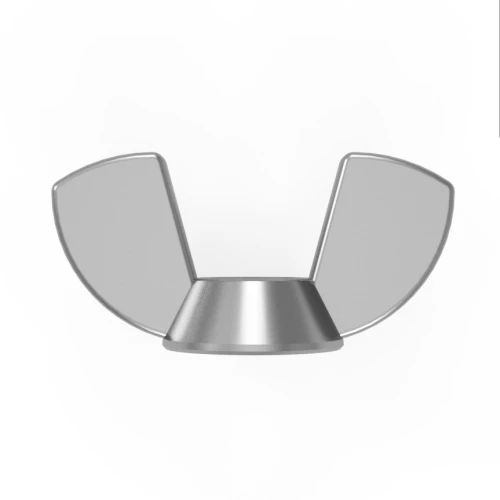

M12 Wing Nut DIN 315 -A2 Stainless Steel (304) -49.4mm Wide
At 49.4mm wide, the M12 AA2 Stainless Steel Wing Nut is a substantial butterfly nut -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for heavy structural clamps, large access hatches, industrial plant guards and marine applications where a substantial wing nut provides secure hand-tightened clamping force. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
A2 stainless steel (grade 304 / 18-8) provides good corrosion resistance for general industrial, outdoor and lightly corrosive environments. At 49.4mm wide with a 22.3mm height, the wing profile delivers substantial hand-tightening torque. A countersunk bearing face seats stably against the clamping surface to prevent rotation under load. DIN 315 compliant -dimensionally consistent with any compatible M12 bolt or threaded rod at 1.75mm pitch.
Common Applications
- Large access hatch and heavy inspection cover tool-free retention
- Heavy structural clamp and framework hand-tightened assembly
- Industrial plant equipment guard fastening
- Marine deck fitting and coastal infrastructure installation

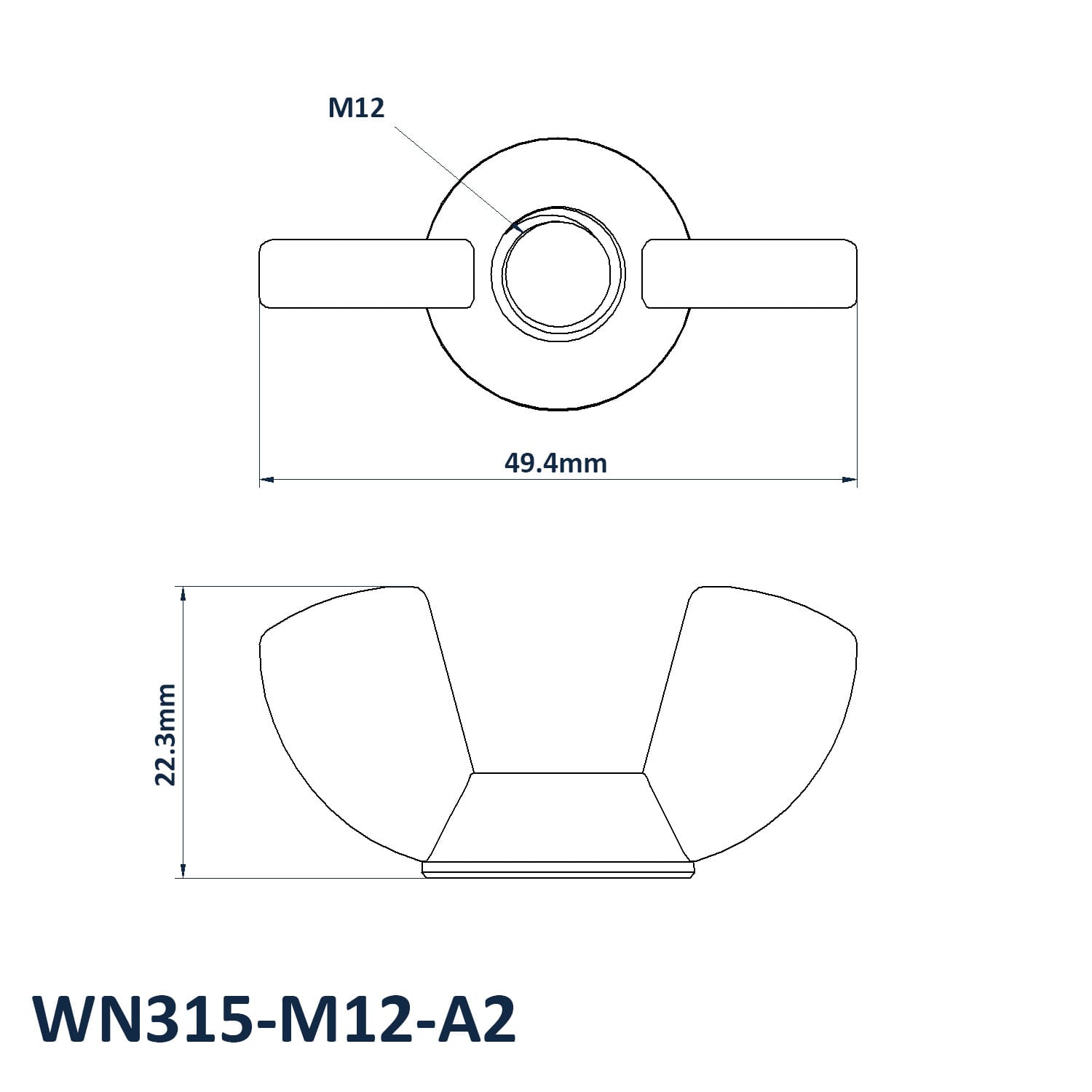

M12 A2 Wing Nut Dimensions
- Thread Size: M12
- Thread Pitch: 1.75mm
- Width: 49.4mm
- Height: 22.3mm
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
Need help or buying in bulk?
For technical advice on wing nut selection or volume pricing, call 01233 713581.
