M16 Wing Nut DIN 315 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £2.38 | £2.85 |
| 50 - 99 | £2.14 | £2.57 |
| 100 - 249 | £1.94 | £2.33 |
| 250 + | £1.65 | £1.98 |
Product Specification
| Thread Size | M16 |
| Thread Pitch | 2.00mm |
| Width | 58.3mm |
| Height | 30.8mm |
| Material | A2 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00
M16 Wing Nut DIN 315 -A2 Stainless Steel (304) -58.3mm Wide
Measuring 58.3mm wide, the M16 AA2 Stainless Steel Wing Nut is a large heavy-duty butterfly nut -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for heavy industrial and civil engineering applications -large structural clamps, major access hatches and heavy plant where the wing nut must deliver maximum hand-tightened clamping force. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
A2 stainless steel (304 / 18-8) delivers solid corrosion resistance for heavy industrial, structural and outdoor applications where standard carbon steel would rust. At 58.3mm wide and 30.8mm tall, the large wing profile generates significant clamping torque by hand -enough for the structural and heavy industrial applications this size serves. A countersunk bearing face distributes clamping load evenly. DIN 315 compliant for use with any compatible M16 bolt or threaded rod at 2mm pitch.
Common Applications
- Heavy structural clamp and civil engineering framework assembly
- Major industrial access hatch and plant guard fastening
- Large-scale outdoor structure and marine installation
- Heavy civil engineering and infrastructure hand-tightened fastening

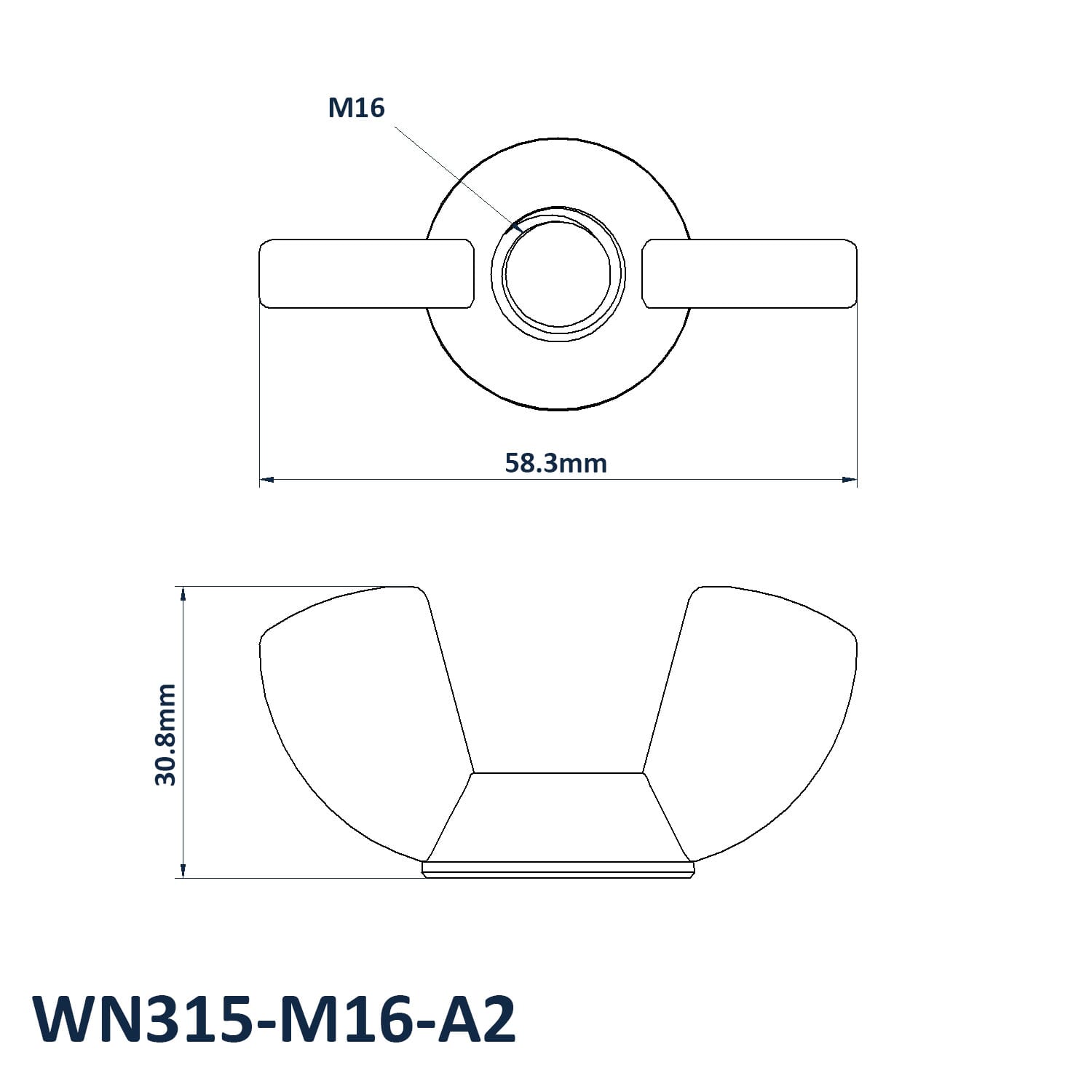

M16 A2 Wing Nut Dimensions
- Thread Size: M16
- Thread Pitch: 2mm
- Width: 58.3mm
- Height: 30.8mm
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
Need help or buying in bulk?
For technical advice on wing nut selection or volume pricing, call 01233 713581.
