M12 Wing Nut (DIN 315) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.11 | £1.33 |
| 100 - 499 | £0.97 | £1.17 |
| 500 - 999 | £0.87 | £1.04 |
| 1000 + | £0.65 | £0.78 |
Product Specification
| Thread Size | M12 |
| Thread Pitch | 1.75mm |
| Width | 49.4mm |
| Height | 22.3mm |
| Material | A4 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00
M12 Wing Nut DIN 315 -A4 Stainless Steel (316 Marine Grade) -49.4mm Wide
At 49.4mm wide, the M12 AA4 Stainless Steel Wing Nut is a substantial butterfly nut -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for heavy structural clamps, large access hatches, industrial plant guards and marine applications where a substantial wing nut provides secure hand-tightened clamping force. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
A4 (316) marine grade stainless steel is the correct specification for offshore, marine, coastal and food processing applications where exposure to saltwater, chlorides or aggressive cleaning chemicals makes standard A2 unsuitable. At 49.4mm wide and 22.3mm tall this wing nut delivers strong hand-tightened clamping force with the corrosion performance to match the demanding environments where it is typically specified. DIN 315 compliant -fits any compatible M12 bolt or threaded rod at 1.75mm pitch.
Common Applications
- Large access hatch and heavy inspection cover tool-free retention
- Heavy structural clamp and framework hand-tightened assembly
- Industrial plant equipment guard fastening
- Marine deck fitting and coastal infrastructure installation

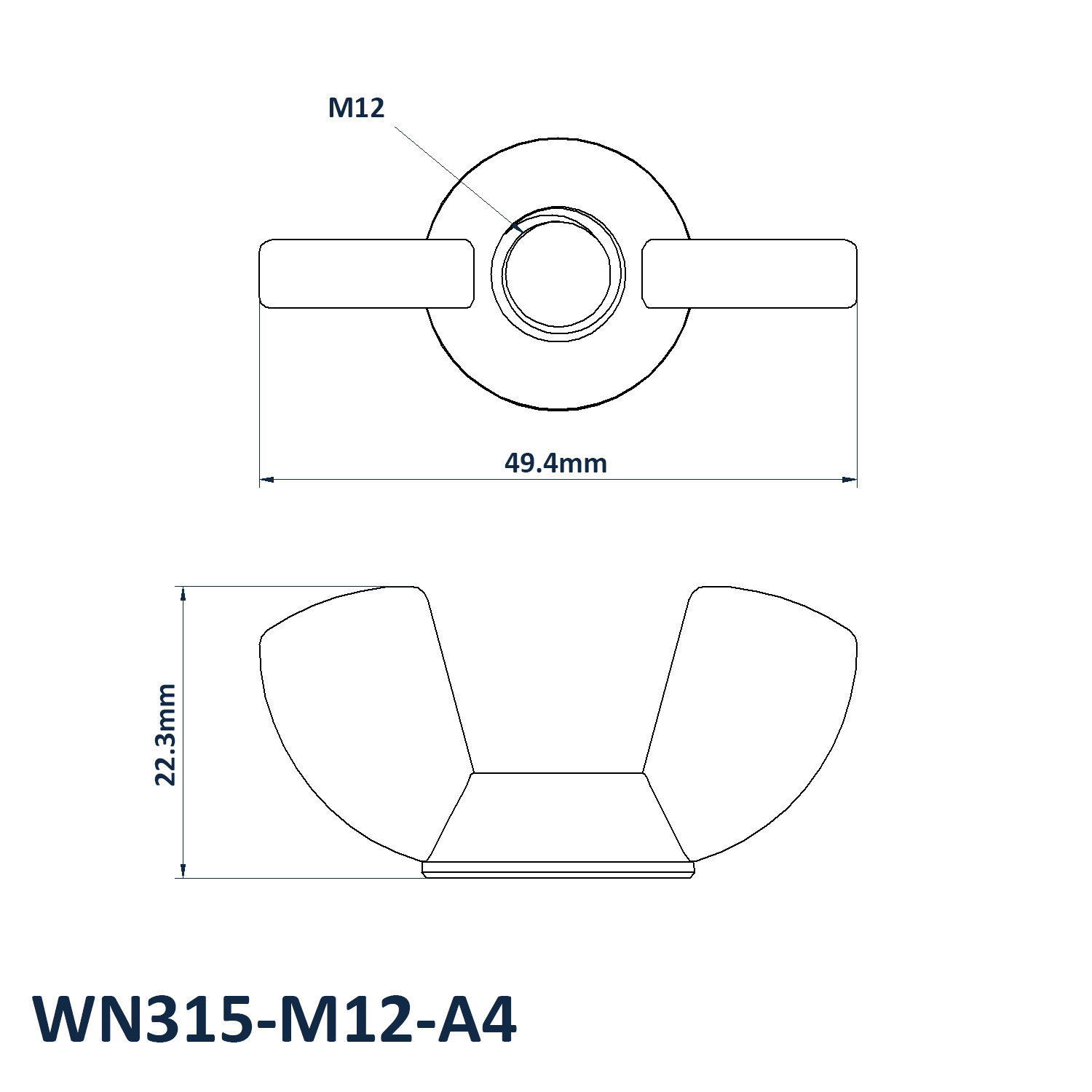

M12 A4 Wing Nut Dimensions
- Thread Size: M12
- Thread Pitch: 1.75mm
- Width: 49.4mm
- Height: 22.3mm
- Material: A4 Stainless Steel (316 Marine Grade)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
Need help or buying in bulk?
For technical advice on wing nut selection or volume pricing, call 01233 713581.
