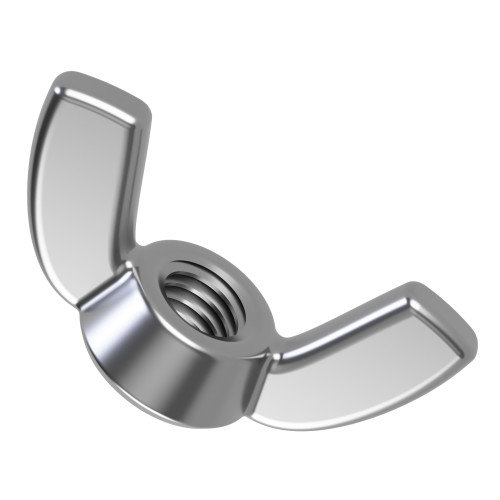

M16 Wing Nut (DIN 315) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.12 | £3.75 |
| 50 - 99 | £2.81 | £3.37 |
| 100 - 249 | £2.56 | £3.07 |
| 250 + | £2.17 | £2.60 |
Product Specification
| Thread Size | M16 |
| Thread Pitch | 2.00mm |
| Width | 58.3mm |
| Height | 30.8mm |
| Material | A4 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00

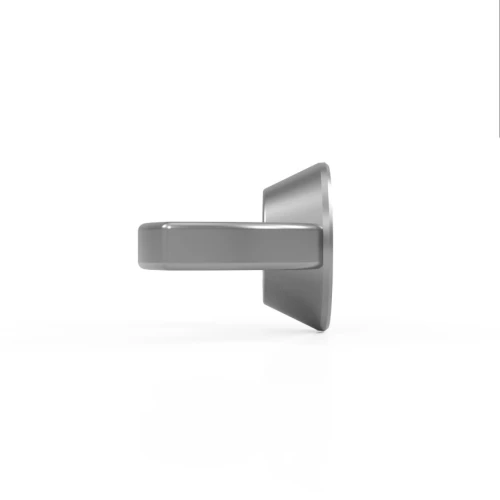

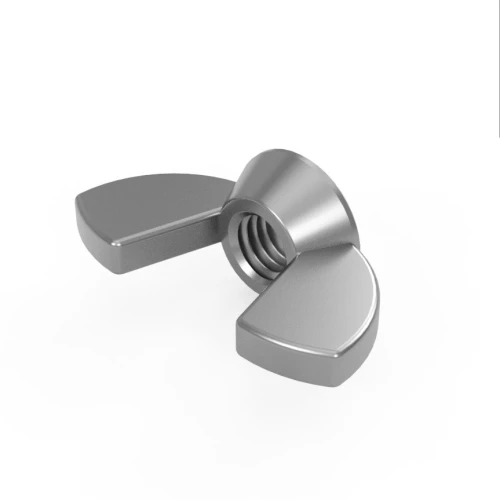

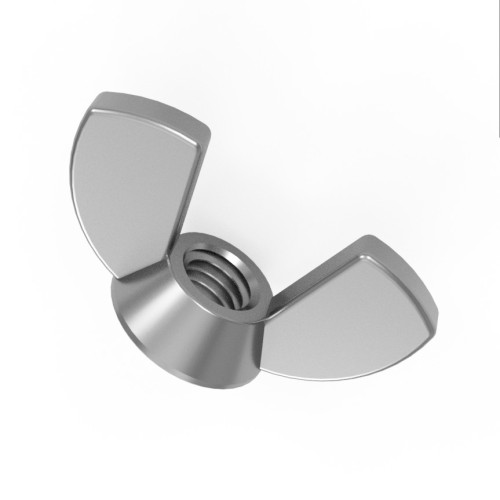

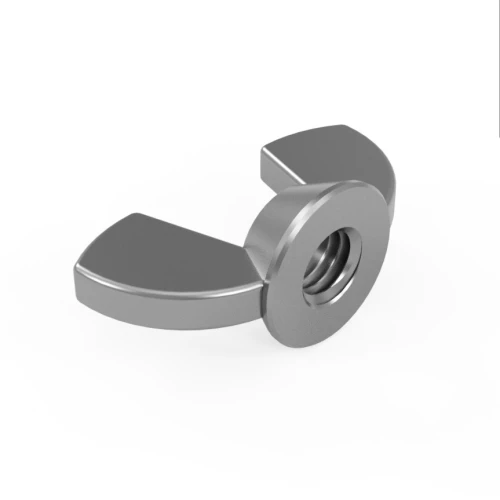

M16 Wing Nut DIN 315 -A4 Stainless Steel (316 Marine Grade) -58.3mm Wide
Measuring 58.3mm wide, the M16 AA4 Stainless Steel Wing Nut is a large heavy-duty butterfly nut -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for heavy industrial and civil engineering applications -large structural clamps, major access hatches and heavy plant where the wing nut must deliver maximum hand-tightened clamping force. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
A4 stainless steel (grade 316) is the marine and offshore grade -the molybdenum content makes it significantly more resistant to chloride attack than A2, which is essential in coastal, marine, offshore and chemical processing environments at this heavy structural size. The 58.3mm wide wing profile and 30.8mm height ensure adequate hand-tightening torque even on heavy structural fastenings. A countersunk bearing face distributes clamping load across the surface. DIN 315 compliant for use with any M16 bolt or threaded rod at 2mm pitch.
Common Applications
- Heavy structural clamp and civil engineering framework assembly
- Major industrial access hatch and plant guard fastening
- Large-scale outdoor structure and marine installation
- Heavy civil engineering and infrastructure hand-tightened fastening

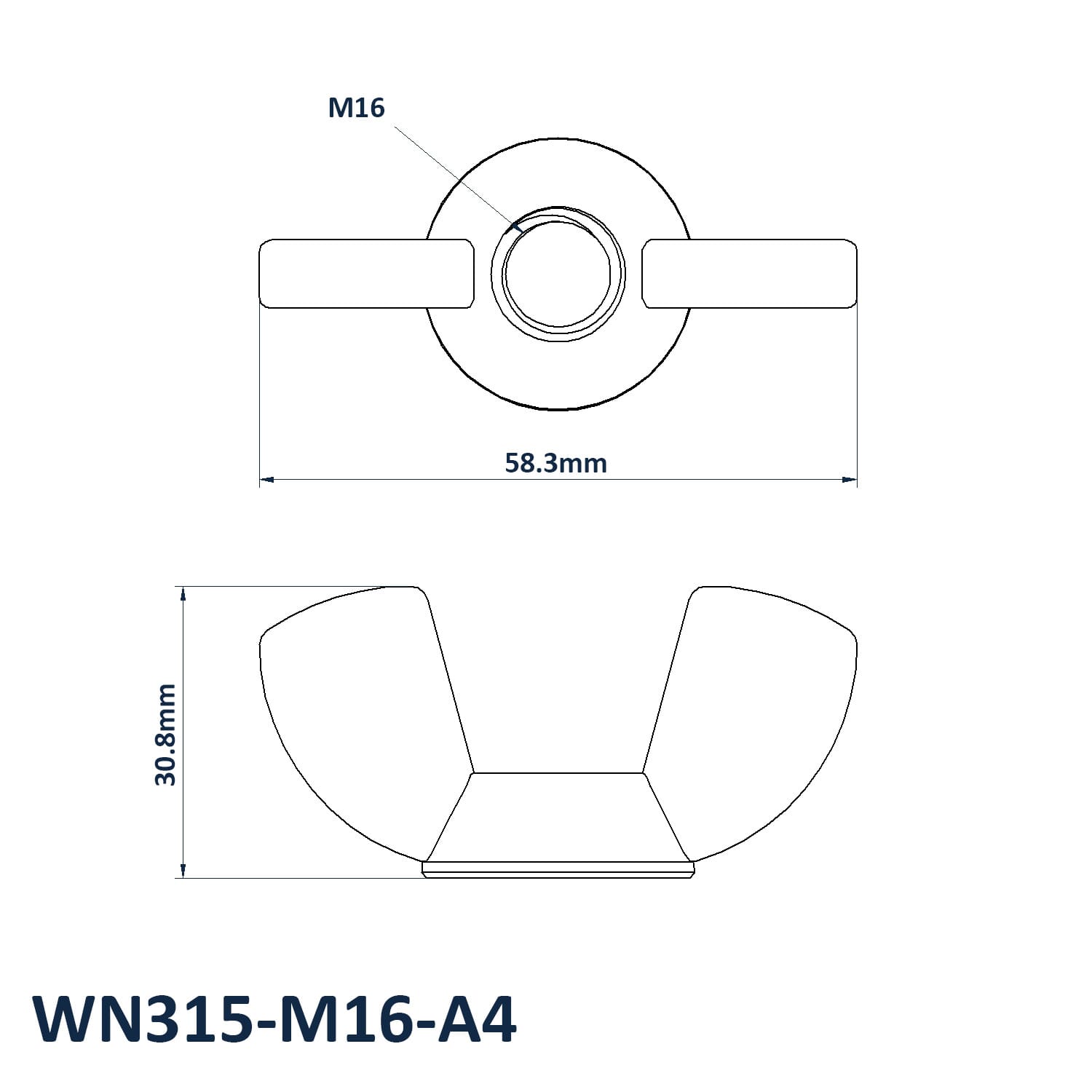

M16 A4 Wing Nut Dimensions
- Thread Size: M16
- Thread Pitch: 2mm
- Width: 58.3mm
- Height: 30.8mm
- Material: A4 Stainless Steel (316 Marine Grade)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
