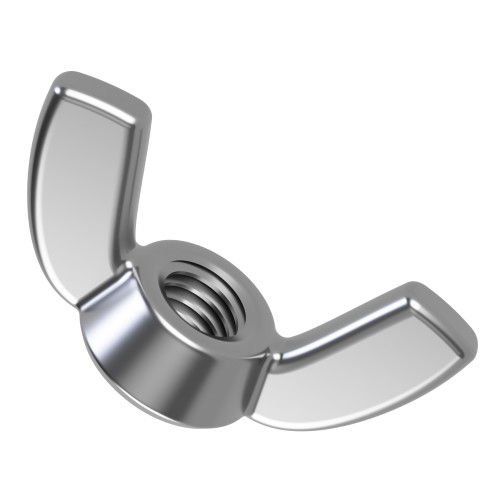

M8 Wing Nut (DIN 315) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.35 | £0.42 |
| 100 - 999 | £0.31 | £0.37 |
| 1000 - 2499 | £0.28 | £0.33 |
| 2500 + | £0.21 | £0.25 |
Product Specification
| Thread Size | M8 |
| Thread Pitch | 1.25mm |
| Width | 30.3mm |
| Height | 14.8mm |
| Material | A4 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00

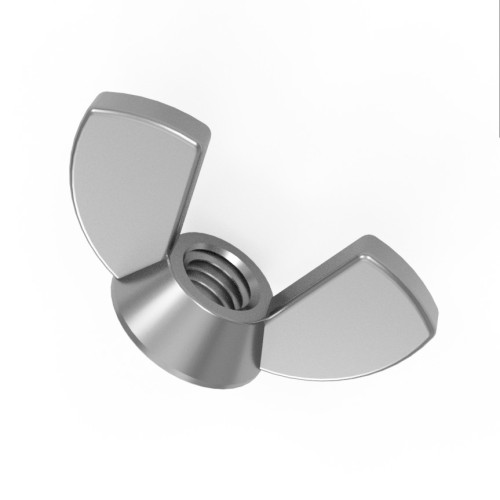

M8 Wing Nut DIN 315 -A4 Stainless Steel (316 Marine Grade) -30.3mm Wide
With a 30.3mm width, the M8 AA4 Stainless Steel Wing Nut is a medium-duty butterfly nut -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for medium-duty machinery guards, access panels, structural clamps and equipment covers where a robust hand-tightened fastener handles moderate load without tools. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
A4 stainless steel (grade 316) contains molybdenum for superior resistance to chloride corrosion -the correct grade for marine, coastal, food processing and chemical environments where standard A2 (304) would corrode over time. The 30.3mm wide wing profile gives good hand-tightening leverage and the countersunk bearing face seats stably against the clamping surface. DIN 315 compliant -dimensionally interchangeable with any compatible M8 bolt or threaded rod at 1.25mm pitch.
Common Applications
- Medium-duty machinery guard and safety cover fastening
- Structural clamp and bracket adjustment in fabrication and engineering
- Access panel retention on industrial equipment and plant
- Outdoor equipment and framework hand-tightened assembly

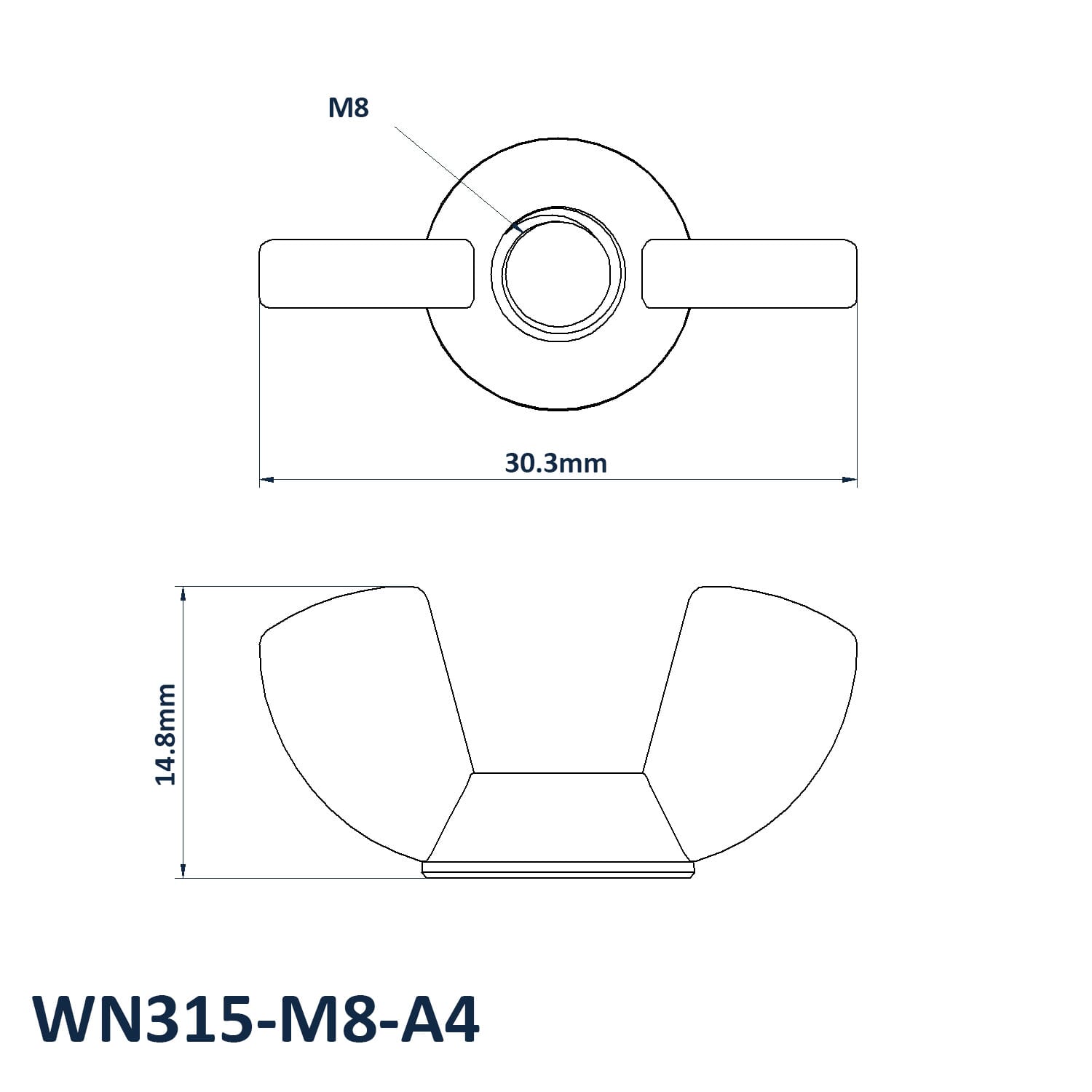

M8 A4 Wing Nut Dimensions
- Thread Size: M8
- Thread Pitch: 1.25mm
- Width: 30.3mm
- Height: 14.8mm
- Material: A4 Stainless Steel (316 Marine Grade)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
