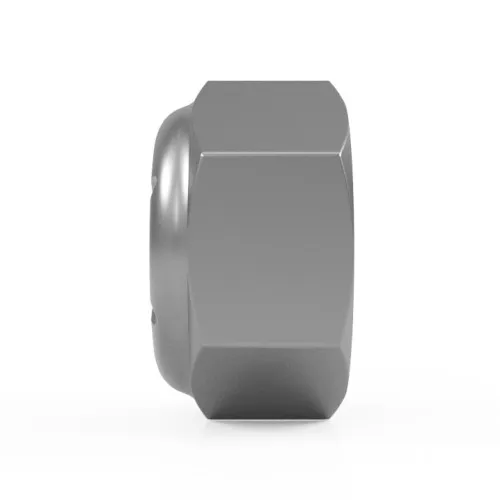

M14 Nyloc Nut (DIN 985) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.46 | £0.55 |
| 100 - 999 | £0.39 | £0.47 |
| 1000 - 4999 | £0.30 | £0.36 |
| 5000 + | £0.26 | £0.31 |
£0.55 / each
.png)
Product Specification
| Thread Size | M14 |
| Thread Pitch | 2.00mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 22mm |
| Height | 14mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00
M14 Thin Nyloc Hex Nut | 2.00mm Pitch | DIN 985 | A4-80 Stainless Steel
Made to DIN 985, this M14 nylock nut uses a nylon locking ring to add resistance to rotation after installation. The 22mm across-flats dimension allows standard tool engagement while the 14mm height provides a compact alternative to taller nylon lock nut formats. The A4 stainless steel construction provides enhanced corrosion resistance for suitable outdoor, coastal and marine fastening applications.
What Are DIN 985 Nyloc Nuts?
DIN 985 Nylon Lock Nuts use a polymer insert above the metal thread to create resistance against the mating bolt. The nut body remains metal while the nylon insert provides the locking action which makes these fasteners useful in vibration-prone mechanical assemblies.
Other compact locking sizes are available in our thin nyloc nuts range, while DIN 982 nylon lock nuts are available where a higher nut profile is preferred.
Common Applications
- Pumps and Motors: Helps maintain bolted joints on suitable equipment exposed to vibration and repeated operation.
- Furniture and Frames: Provides a compact locking nut for metal frames, brackets and adjustable furniture components.
- Transport Equipment: Supports secure fastening on suitable panels, brackets and serviceable mechanical assemblies.
- Workshop Repairs: Provides a straightforward replacement locknut for compatible metric bolted joints.
M14 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M14
- Thread Pitch: 2.00mm
- Across Flats: 22mm
- Height: 14mm
- Material: A4-80 Stainless Steel
- Standard: DIN 985
Key Benefits
- 22mm across-flats dimension provides the stated hex body width for tool engagement.
- A4-80 Stainless Steel construction provides the specified metal grade and finish.
- Compact body height suits assemblies where a taller locknut may create clearance issues.
- Self-locking format can reduce the need for a separate locking washer in suitable assemblies.
We can help you compare thread sizes, material grades and locking nut styles on 01233 713581.
