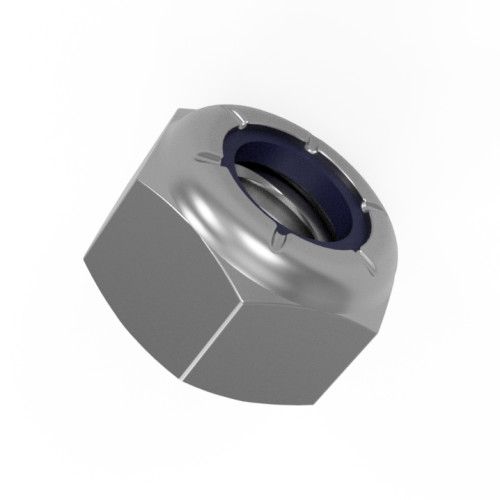

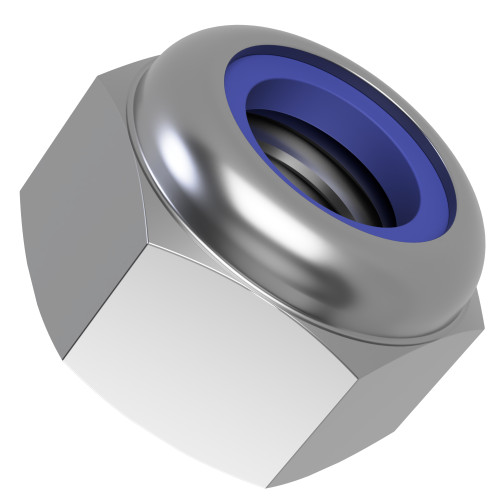

M7 Nyloc Nut (DIN 985) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.28 | £0.34 |
| 100 - 999 | £0.25 | £0.30 |
| 1000 - 9999 | £0.19 | £0.23 |
| 10000 + | £0.16 | £0.19 |
£0.34 / each
.png)
Product Specification
| Thread Size | M7 |
| Thread Pitch | 1.00mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 11mm |
| Height | 7mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00
M7 Thin Nyloc Hex Nut | 1.00mm Pitch | DIN 985 | A2-70 Stainless Steel
This M7 metal locknut is suited to instrumentation, technical equipment and mechanical sub-assemblies where a standard hex nut may loosen under vibration. The nylon insert grips the mating thread to provide prevailing torque while the metal nut body carries the clamping load. The A2 stainless steel construction provides good corrosion resistance for general engineering, machinery and suitably exposed fastening applications.
What Are DIN 985 Nyloc Nuts?
DIN 985 Nylon Lock Nuts use a polymer insert above the metal thread to create resistance against the mating bolt. The nut body remains metal while the nylon insert provides the locking action which makes these fasteners useful in vibration-prone mechanical assemblies.
This DIN 985 style sits within our wider self-locking hex nuts range. For applications that require a taller nylon insert nut, our DIN 982 nylon lock nuts provide the DIN 982 alternative.
Common Applications
- Fabricated Metalwork: Secures compatible bolts in brackets, frames and sheet-metal assemblies where vibration resistance is useful.
- Instrumentation: Provides a compact self-locking fastening point for technical equipment and mechanical sub-assemblies.
- Construction Hardware: Helps retain compatible bolted connections on suitable fabricated components and fittings.
- Maintenance Panels: Keeps fasteners secure on removable covers and serviceable equipment subject to repeated access.

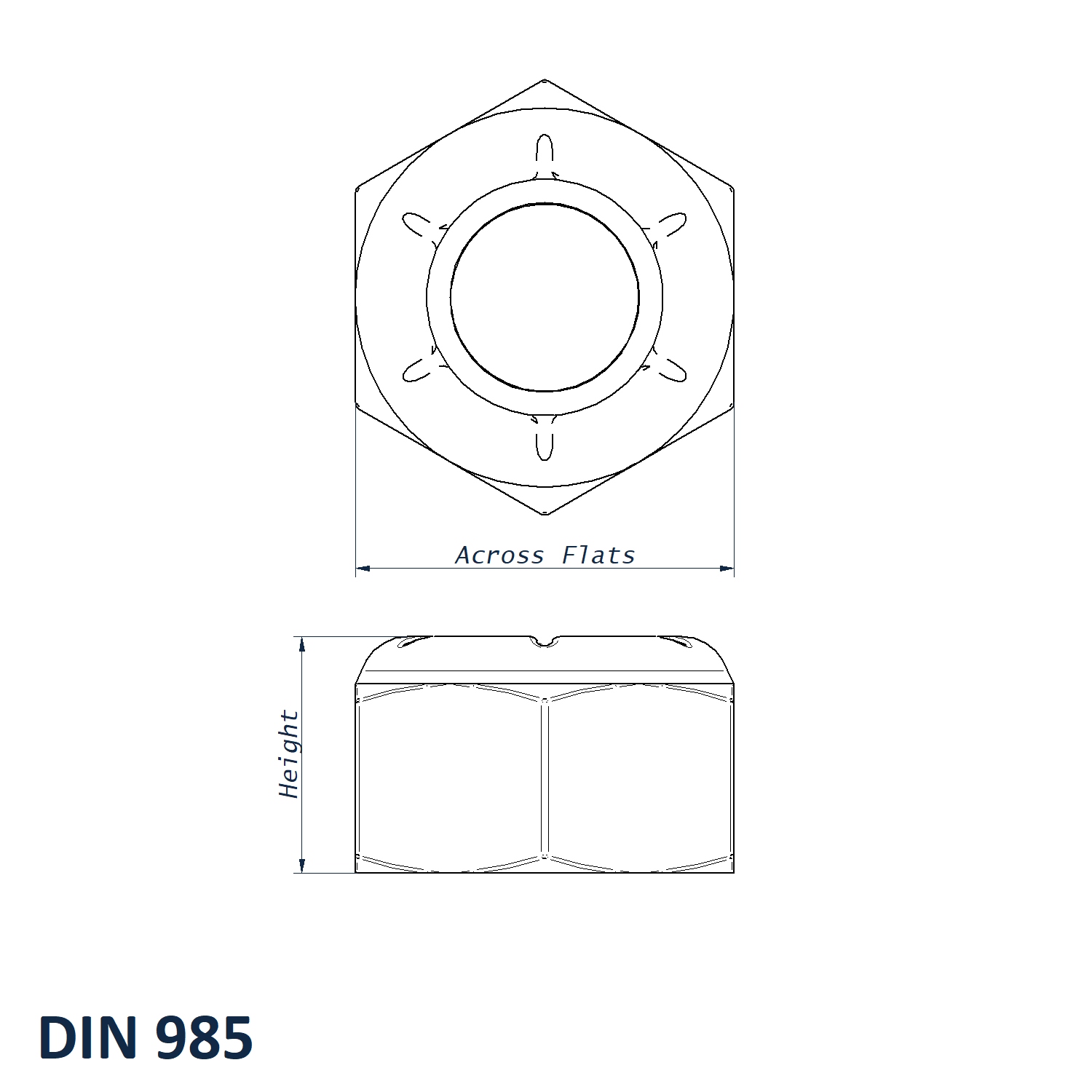

M7 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M7
- Thread Pitch: 1.00mm
- Across Flats: 11mm
- Height: 7mm
- Material: A2-70 Stainless Steel
- Standard: DIN 985
Key Benefits
- Nylon insert creates prevailing friction on the mating thread to help resist loosening.
- Metal nut body carries the clamping load while the nylon insert provides the locking action.
- 1.00mm thread pitch matches compatible metric bolts and threaded components.
- 7mm height provides the compact DIN 985 nut profile.
If you need help matching the thread size, pitch or material grade to your application, call us on 01233 713581.
