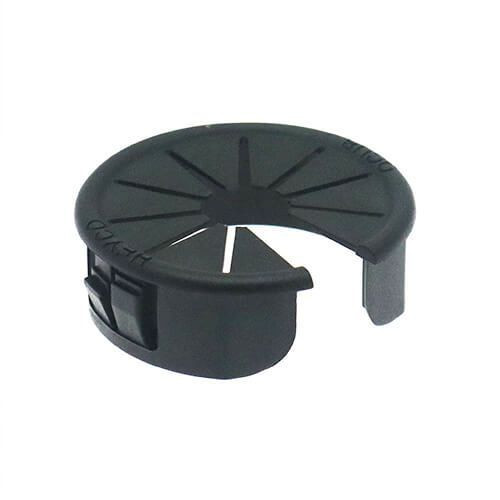

12.7mm Universal Open/Closed Bushing - 3.2mm Panel (7.6mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.23 | £0.28 |
| 250 - 499 | £0.21 | £0.25 |
| 500 - 999 | £0.18 | £0.22 |
| 1000 - 2499 | £0.17 | £0.20 |
| 2500 - 4999 | £0.15 | £0.18 |
| 5000 + | £0.13 | £0.16 |
Product Specification
| To Fit Hole Diameter | 12.7mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 7.6mm |
| Head Diameter | 14.2mm |
| Length | 9.8mm |
Frequently Bought Together
Total Price: £0.00

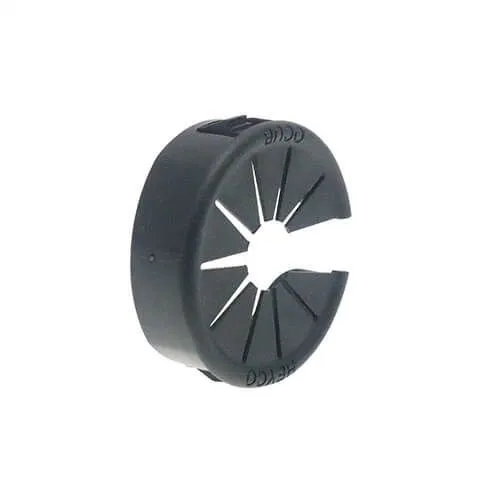

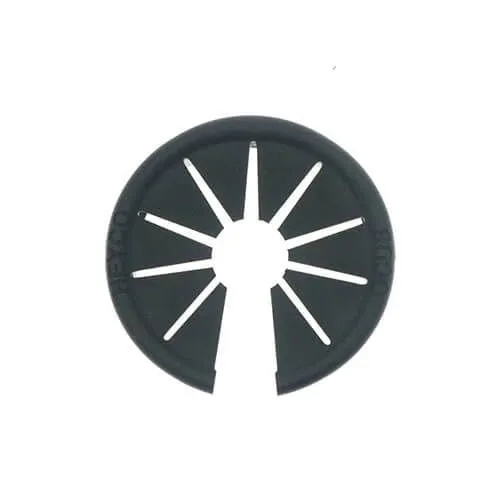

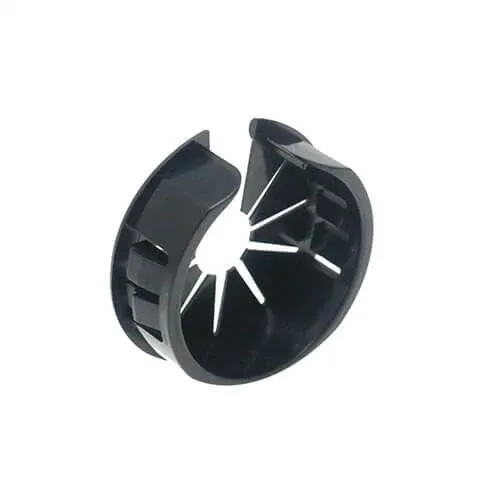

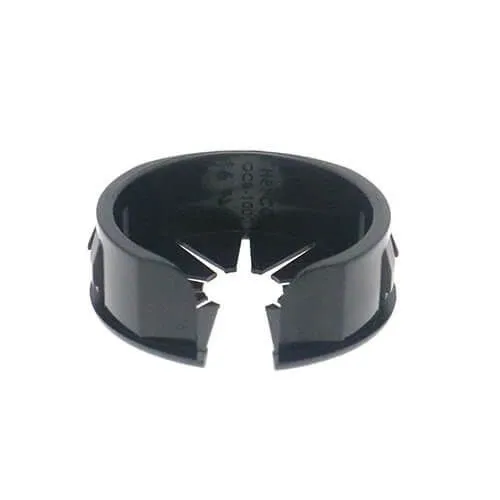

12.7mm Universal Open/Closed Bush | 7.6mm Max Cable | Black Nylon 66
Designed for compact panel cut-outs, this 12.7mm universal open/closed bush gives cables a protected route through sheet metal, plastic housings and light equipment panels. The split side-entry body suits cables up to 7.6mm, helping installers fit the bush around wiring without needing to disconnect the assembly.
Black Nylon 66 construction provides a practical balance of strength, insulation and everyday wear resistance. The head diameter of 14.2mm leaves a neat visible finish around the hole, while the 3.2mm panel thickness capacity helps the locking fingers hold the bush securely once pressed into position.
What Are Universal Open/Closed Bushes?
A universal open/closed bush is a split cable bushing designed to open around a cable, close into shape and then snap into a panel hole. This makes it useful where a cable is already terminated or where side entry is easier than feeding the full cable through a fixed grommet.
Common Applications
- Small electrical enclosure cable exits
- Instrument panel wiring protection
- Light machinery control boxes
- Retrofit cable insulation work

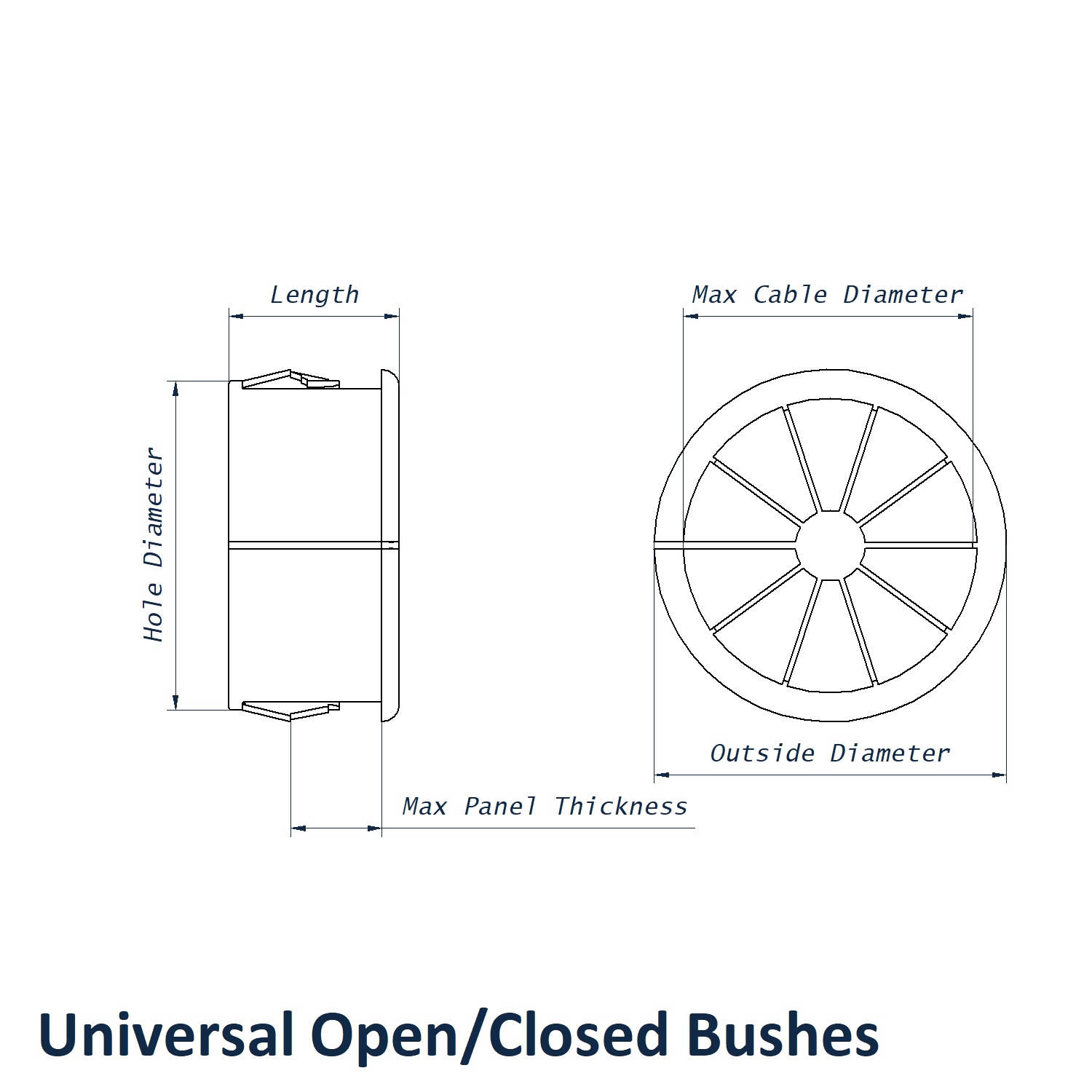

12.7mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 12.7mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 7.6mm
- Head Diameter: 14.2mm
- Length: 9.8mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These universal open/closed bush products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
For help checking whether this compact cable bush is suitable for your panel thickness or cable diameter, speak with the Vital Parts team on 01233 713581. We can support trade enquiries, repeat orders and sample checks where available.
