27.8mm Universal Open/Closed Bushing - 3.2mm Panel (20.6mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.49 | £0.59 |
| 250 - 499 | £0.44 | £0.53 |
| 500 - 999 | £0.39 | £0.47 |
| 1000 - 2499 | £0.35 | £0.42 |
| 2500 - 4999 | £0.32 | £0.38 |
| 5000 + | £0.28 | £0.34 |
Product Specification
| To Fit Hole Diameter | 27.8mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 20.6mm |
| Head Diameter | 30.2mm |
| Length | 10.3mm |
Frequently Bought Together
Total Price: £0.00
27.8mm Universal Open/Closed Bush | 20.6mm Max Cable | Black Nylon 66
This 27.8mm universal split cable bush is built for cable bundles up to 20.6mm, giving panel builders a simple way to protect wiring at entry and exit points. Its open/closed design supports side entry, which is helpful where the cable path is already assembled.
The 30.2mm head diameter helps cover the edge of the hole cleanly, while the Nylon 66 construction provides a robust non-metallic barrier. It is suited to electrical distribution panels, instrumentation boxes and production equipment where cable protection needs to be reliable and repeatable.
What Are Universal Open/Closed Bushes?
A universal split cable bush combines a split body with locking fingers, allowing the same style of part to handle a practical range of cable positions. Once fitted, it helps keep the cable away from sharp panel edges.
Common Applications
- Electrical distribution boards
- Instrumentation cabinets
- Production equipment wiring
- Panel build cable protection

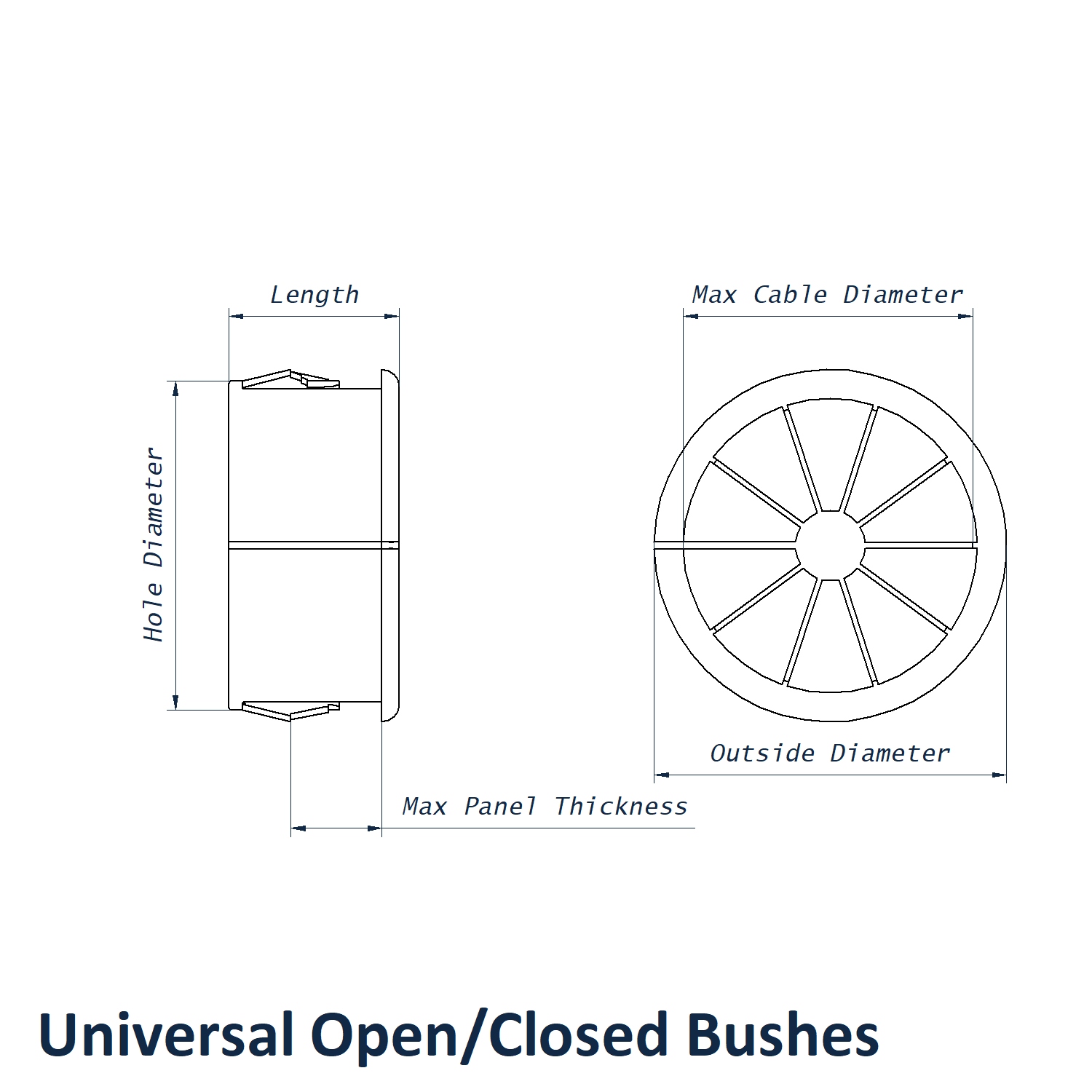

27.8mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 27.8mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 20.6mm
- Head Diameter: 30.2mm
- Length: 10.3mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These universal split cable bush products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
For assistance with universal split cable bush sizing, call 01233 713581. We can help review the hole size, maximum cable diameter and order quantities for electrical assembly work.
