15.9mm Universal Open/Closed Bushing - 3.2mm Panel (11.1mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.27 | £0.32 |
| 250 - 499 | £0.24 | £0.29 |
| 500 - 999 | £0.21 | £0.25 |
| 1000 - 2499 | £0.19 | £0.23 |
| 2500 - 4999 | £0.17 | £0.20 |
| 5000 + | £0.15 | £0.18 |
Product Specification
| To Fit Hole Diameter | 15.9mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 11.1mm |
| Head Diameter | 18.2mm |
| Length | 10.3mm |
Frequently Bought Together
Total Price: £0.00

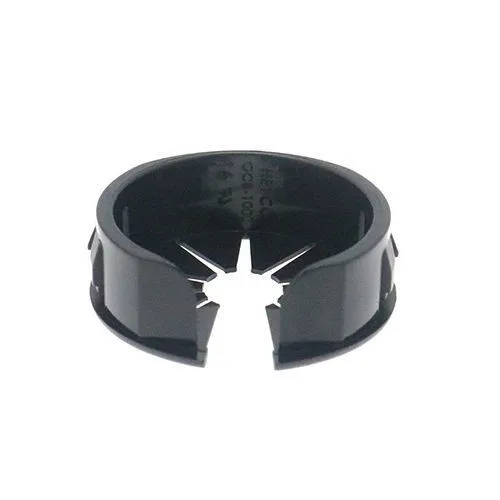

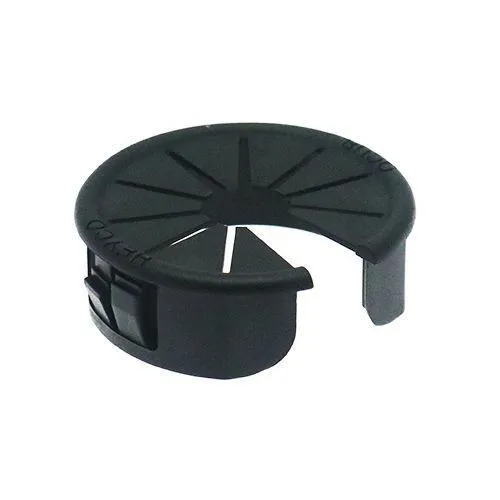

15.9mm Universal Open/Closed Bush | 11.1mm Max Cable | Black Nylon 66
Manufactured for neat cable entry points, this 15.9mm split cable bushing is suitable for panel holes carrying cable bundles up to 11.1mm. Its open/closed design allows the bush to be fitted around existing wiring before being pressed into the aperture.
The 10.3mm length and 18.2mm head diameter help create a stable seat against the panel face. Made from black Nylon 66, this bush helps protect cable insulation from sharp cut edges while reducing unwanted movement at control cabinet or enclosure entry points.
What Are Universal Open/Closed Bushes?
Split cable bushings use a hinged or open body that can be closed around a cable before installation. This side-entry format is useful for maintenance teams and panel builders because it helps avoid dismantling pre-wired cable runs.
Common Applications
- Electrical control cabinet cable routes
- Machine guard wiring points
- Panel holes with existing cables
- Switchgear enclosure cable protection

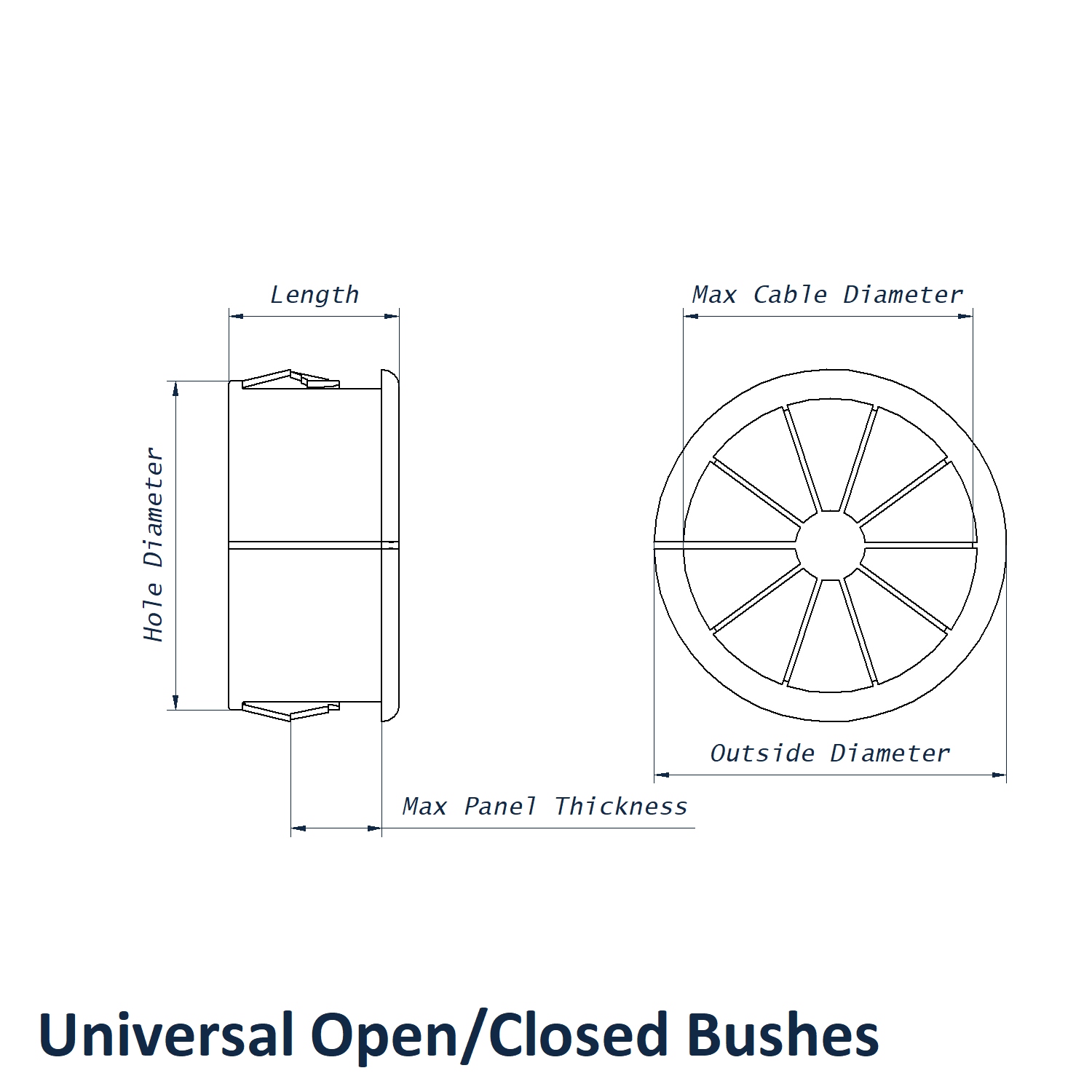

15.9mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 15.9mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 11.1mm
- Head Diameter: 18.2mm
- Length: 10.3mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These split cable bushing products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
If you need to compare this split cable bushing against another hole size, call 01233 713581. Our team can help with sizing, stock checks and larger quantity requirements for enclosure or control panel builds.
