15.9mm Universal Open/Closed Bushing - 3.2mm Panel (11.1mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.42 | £0.50 |
| 250 - 499 | £0.37 | £0.44 |
| 500 - 999 | £0.33 | £0.40 |
| 1000 - 2499 | £0.29 | £0.35 |
| 2500 - 4999 | £0.27 | £0.32 |
| 5000 + | £0.23 | £0.28 |
Product Specification
| To Fit Hole Diameter | 15.9mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 11.1mm |
| Head Diameter | 18.2mm |
| Length | 10.3mm |
Frequently Bought Together
Total Price: £0.00

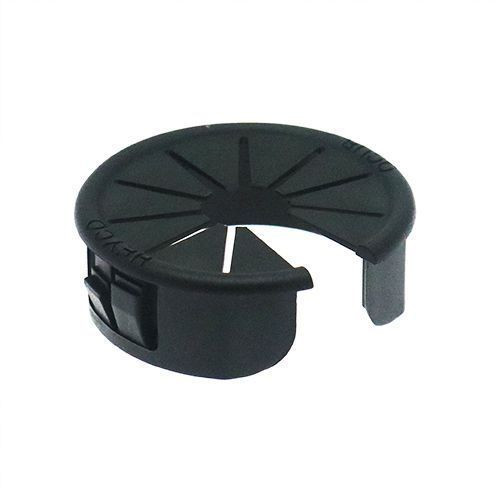

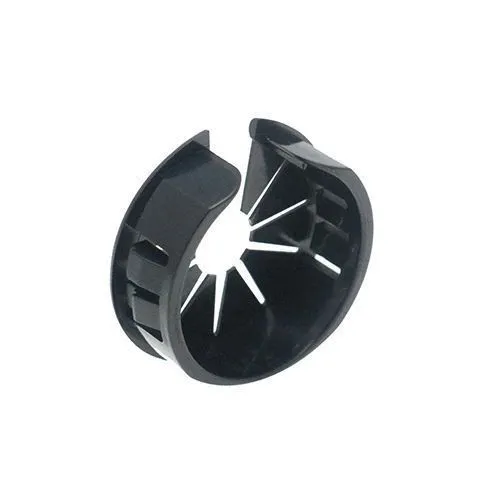

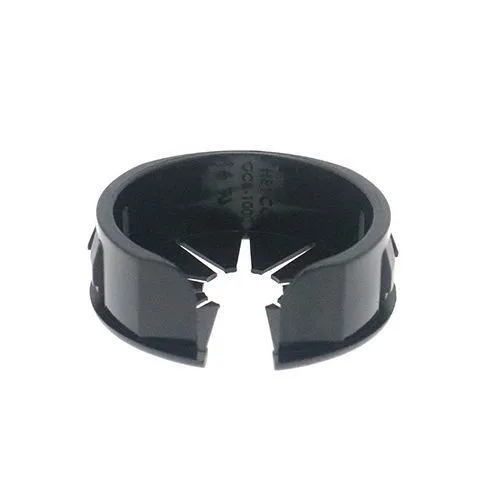

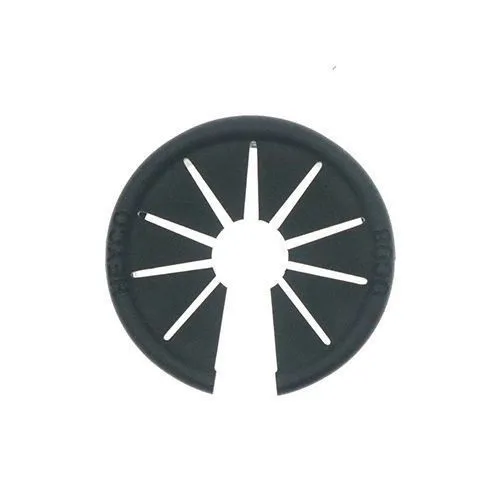

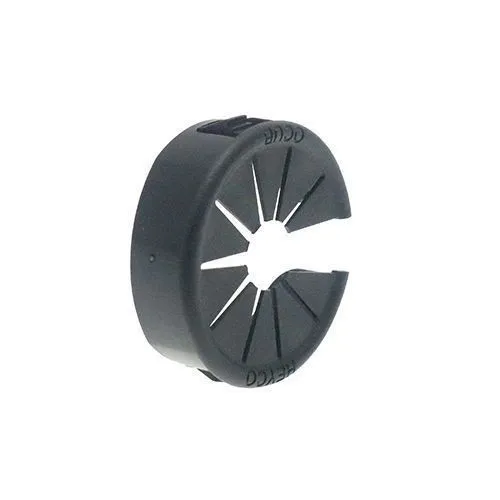

15.9mm Universal Open/Closed Bush | 11.1mm Max Cable | Black Nylon 66
Suitable for workshop repairs and enclosure builds, this 15.9mm open closed cable grommet protects cables up to 11.1mm where a flexible installation method is needed. It can be opened around the cable and then snapped into the panel hole for a neat finish.
The black Nylon 66 body gives a firm insulating layer around the cut-out, helping reduce abrasion from vibration or movement. With 3.2mm maximum panel thickness, it suits light industrial panels, service covers and cable entry positions that may need later access.
What Are Universal Open/Closed Bushes?
Open closed cable grommets are chosen where the cable cannot easily be passed through a closed bush. They help protect wiring from panel edges while allowing installation around existing cable runs.
Common Applications
- Repair work on electrical housings
- Cable entries on removable covers
- Replacement bushes for machinery panels
- General workshop fabrication

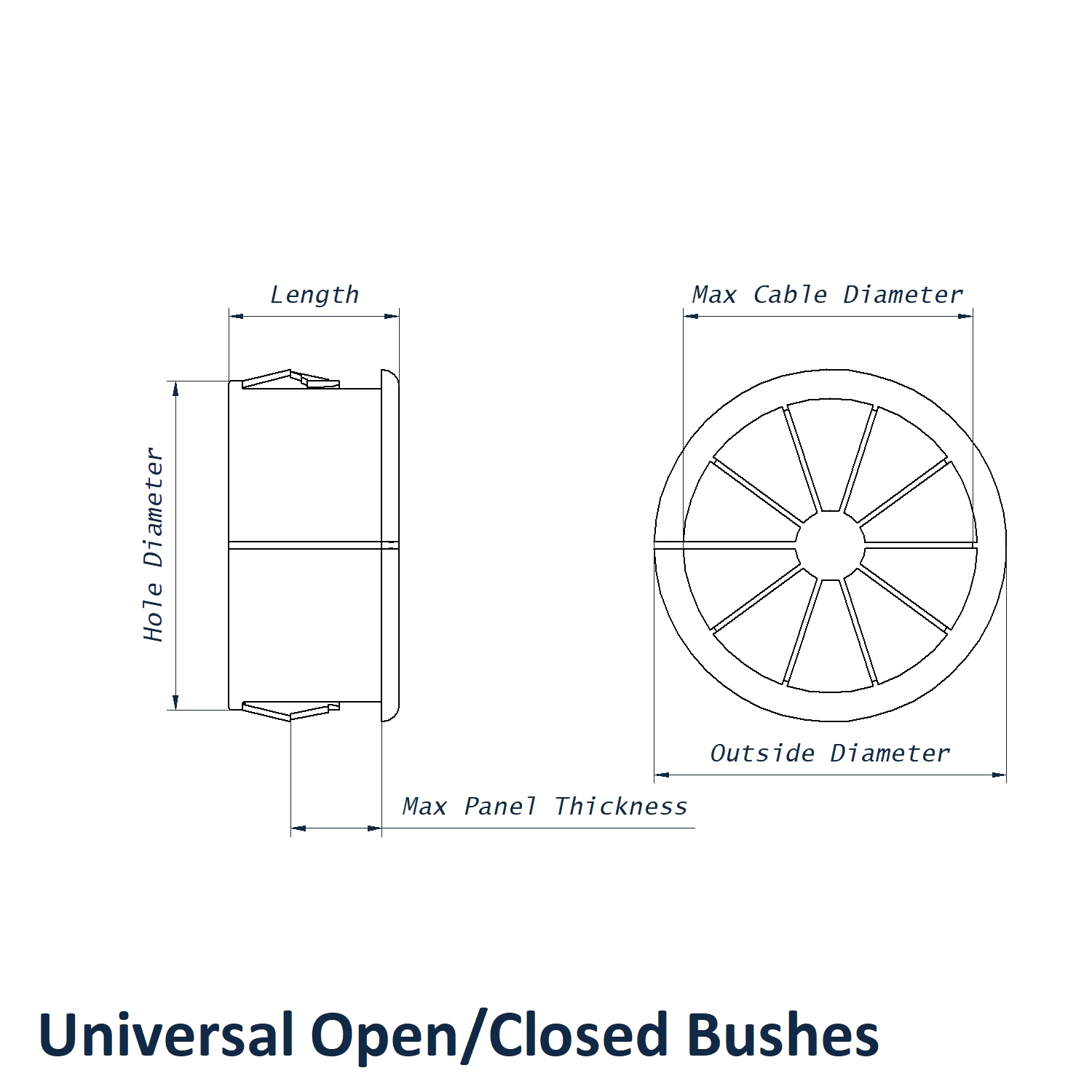

15.9mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 15.9mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 11.1mm
- Head Diameter: 18.2mm
- Length: 10.3mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These open closed cable grommet products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
If you are replacing a worn cable grommet or checking a new panel design, contact Vital Parts on 01233 713581. Our team can help confirm the closest fit and discuss stock availability for maintenance orders.
