19mm Universal Open/Closed Bushing - 3.2mm Panel (12.7mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.36 | £0.43 |
| 250 - 499 | £0.32 | £0.38 |
| 500 - 999 | £0.28 | £0.34 |
| 1000 - 2499 | £0.25 | £0.30 |
| 2500 - 4999 | £0.23 | £0.27 |
| 5000 + | £0.20 | £0.24 |
Product Specification
| To Fit Hole Diameter | 19.0mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 12.7mm |
| Head Diameter | 20.6mm |
| Length | 10.3mm |
Frequently Bought Together
Total Price: £0.00

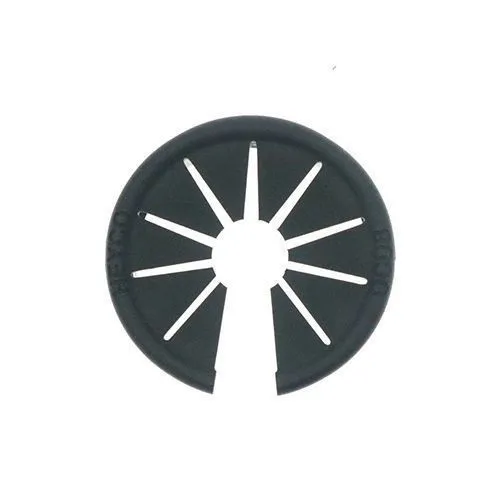

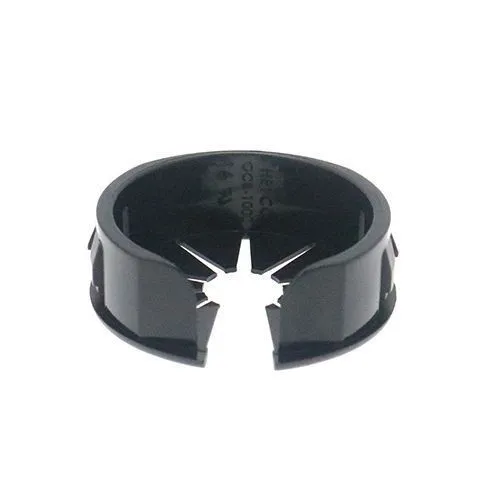

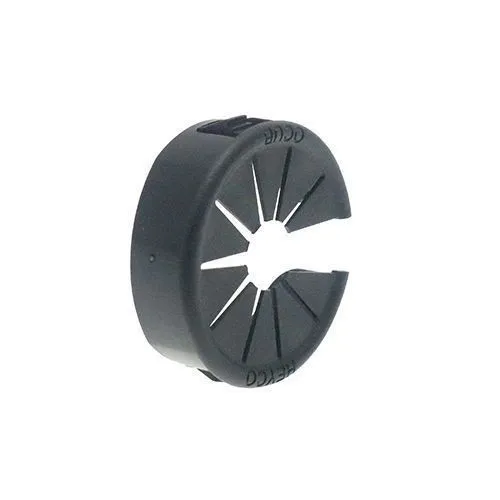

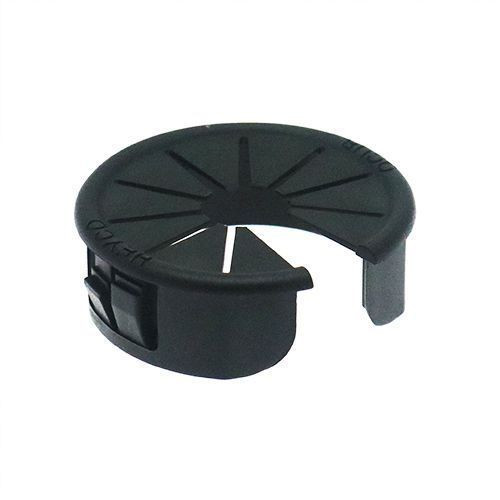

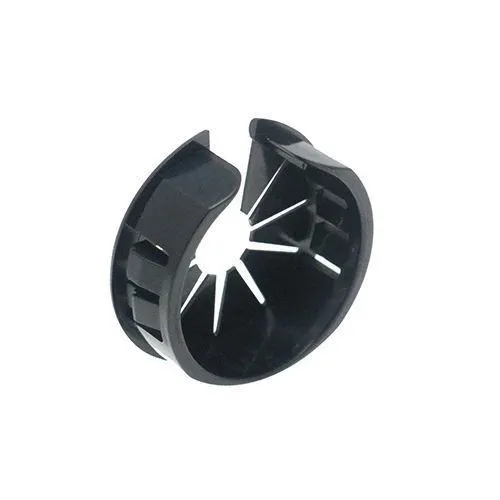

19.0mm Universal Open/Closed Bush | 12.7mm Max Cable | Black Nylon 66
This 19.0mm black universal cable bush is specified for panels that need a clean snap-fit cable entry point with support for cables up to 12.7mm. Its open/closed design makes it especially useful where wiring needs to be installed from the side rather than threaded through from the end.
The 20.6mm head diameter helps cover the panel edge neatly, while the Nylon 66 material provides a tough insulating barrier between the cable and the cut-out. It is a practical choice for equipment panels where cable movement, abrasion and edge contact need to be controlled.
What Are Universal Open/Closed Bushes?
Universal cable bushes help protect cables passing through panels and enclosures. The open/closed style improves installation flexibility by allowing the bush to clamp around a cable before locking into the mounting hole.
Common Applications
- OEM machinery wiring panels
- Control box cable openings
- Fabricated equipment covers
- Workshop-built electrical housings

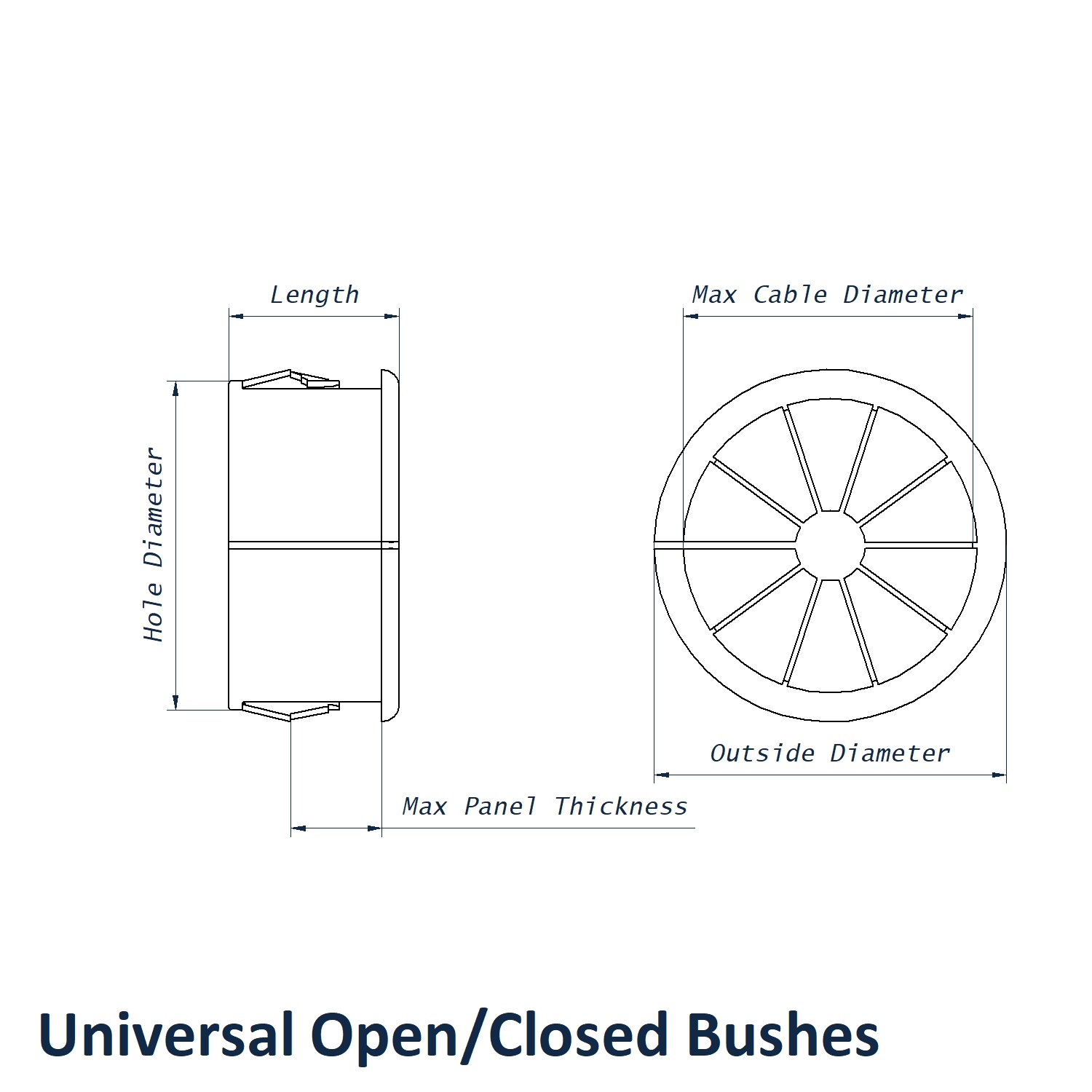

19.0mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 19.0mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 12.7mm
- Head Diameter: 20.6mm
- Length: 10.3mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These black universal cable bush products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
If you are selecting black cable bushes for an equipment build or repeat production run, the Vital Parts team can help confirm suitability. Call 01233 713581 for product guidance, samples where available and trade order support.
