15.9mm Universal Open/Closed Bushing - 3.2mm Panel (11.1mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.62 | £0.74 |
| 250 - 499 | £0.56 | £0.67 |
| 500 - 999 | £0.51 | £0.61 |
| 1000 - 2499 | £0.46 | £0.55 |
| 2500 - 4999 | £0.41 | £0.49 |
| 5000 + | £0.37 | £0.44 |
Product Specification
| To Fit Hole Diameter | 15.9mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 11.1mm |
| Head Diameter | 18.2mm |
| Length | 10.3mm |
Frequently Bought Together
Total Price: £0.00

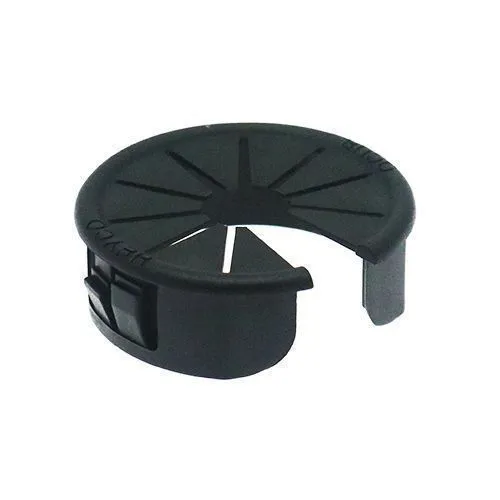

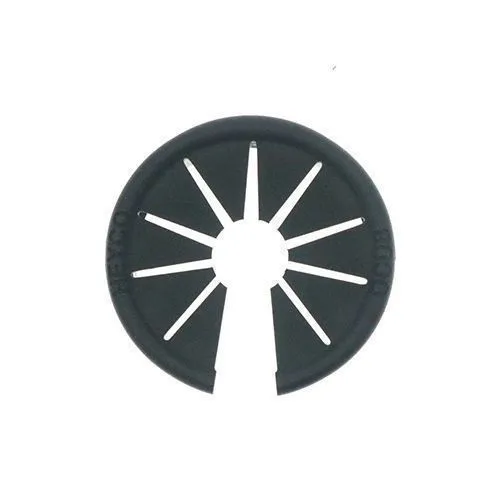

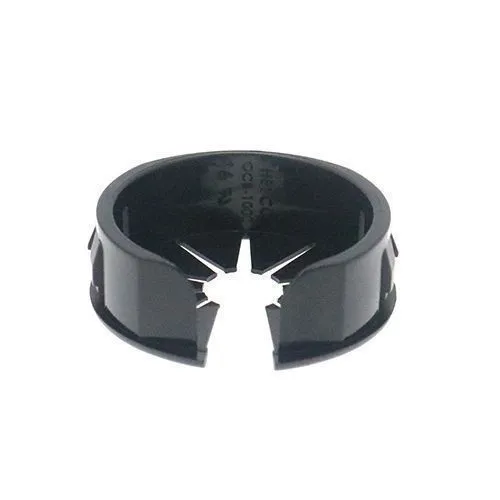

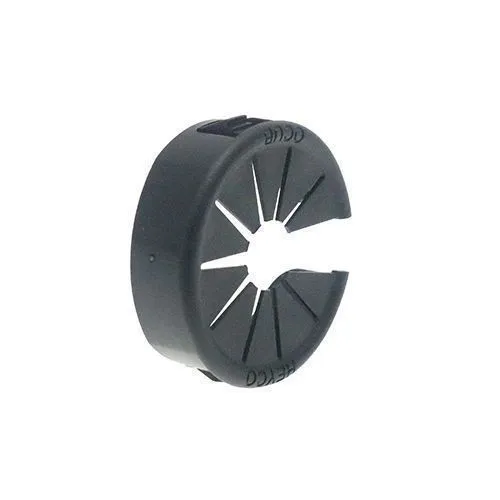

15.9mm Universal Open/Closed Bush | 11.1mm Max Cable | Black Nylon 66
Developed for cable protection in panels and housings, this 15.9mm nylon cable protection bush suits cables up to 11.1mm. The open/closed construction allows side installation around a cable before the bush locks into the mounting hole.
The 10.3mm length keeps the cable supported through the panel depth, while black Nylon 66 offers a durable insulating material for electrical and electronic assemblies. It is useful where installers need a neat, serviceable and non-metallic cable pass-through.
What Are Universal Open/Closed Bushes?
Nylon cable protection bushes help reduce damage to cable sheathing by covering the cut edge of a panel. Universal open/closed bushes improve flexibility by fitting around existing cables instead of needing full cable removal.
Common Applications
- Electronic equipment housings
- Lighting control units
- Signage cable entry points
- Cabinet wiring protection

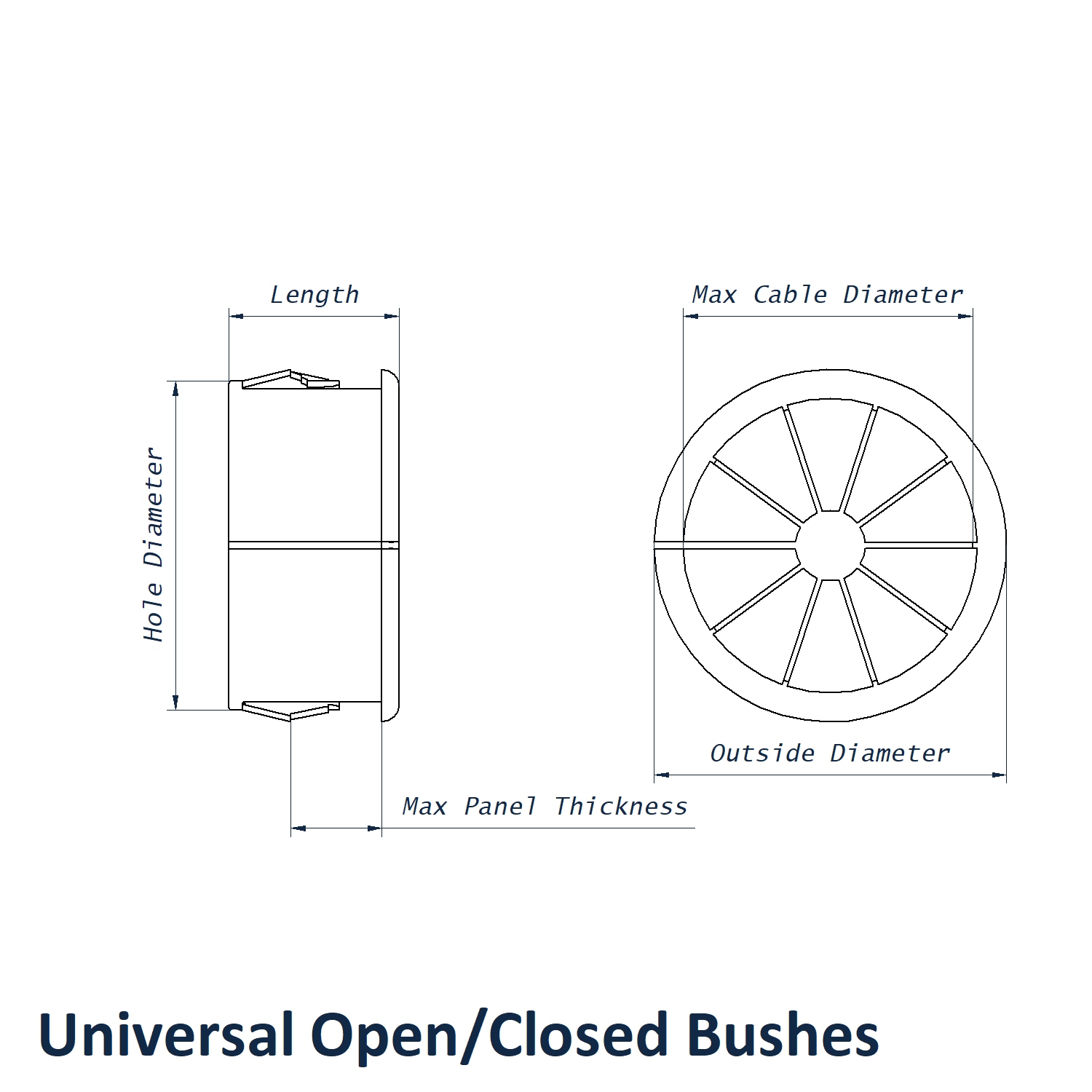

15.9mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 15.9mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 11.1mm
- Head Diameter: 18.2mm
- Length: 10.3mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These nylon cable protection bush products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
For help choosing a nylon cable protection bush for a new build or maintenance job, speak to Vital Parts on 01233 713581. We can help check dimensional fit and support larger trade orders.
