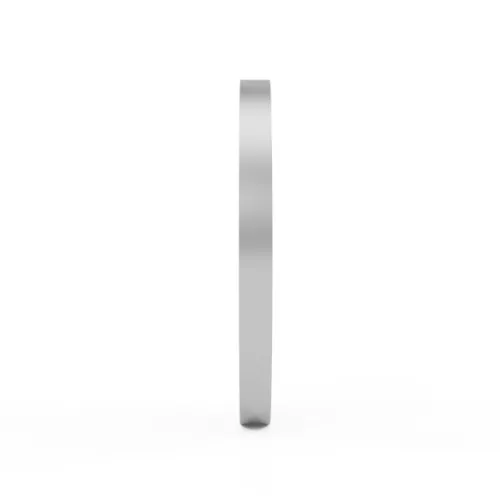

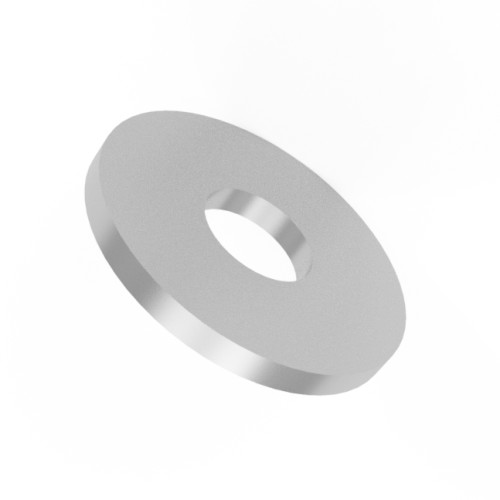

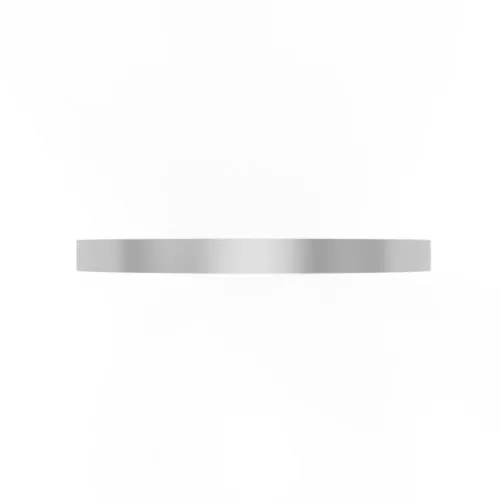

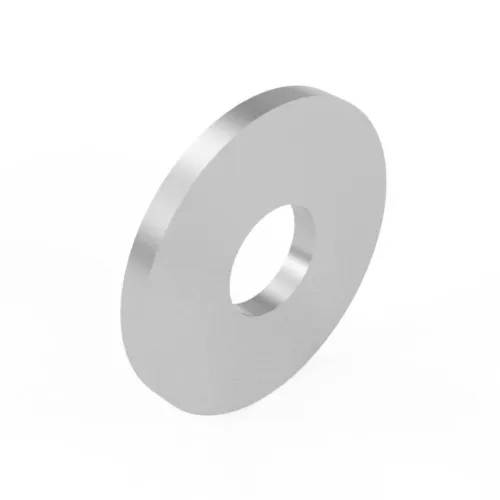

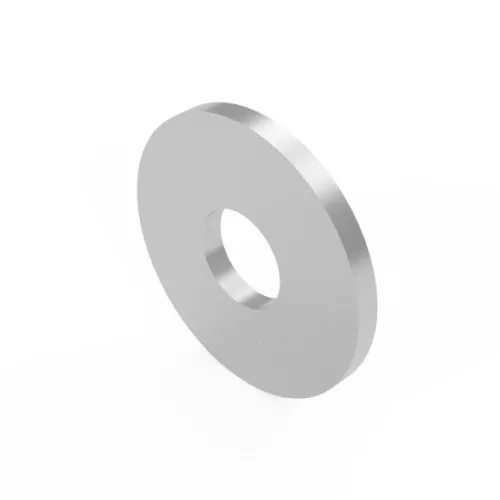

M12 (14mm) x 58mm Wood Construction Washer - DIN 1052 | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.23 | £1.47 |
| 100 - 499 | £1.12 | £1.34 |
| 500 - 999 | £0.89 | £1.07 |
| 1000 - 9999 | £0.80 | £0.96 |
| 10000 + | £0.75 | £0.90 |
£1.47 / each
.png)
Product Specification
| Size | M12 |
| Internal Diameter | 14.0mm |
| Outside Diameter | 58.0mm |
| Thickness | 6.00mm |
| Standard | DIN 1052 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M12 Wood Construction Washer - 14mm ID x 58mm OD | DIN 1052 | A2 Stainless Steel
This stainless steel construction washer is designed for decking, pergolas and outdoor timber projects, providing a broad bearing surface beneath compatible bolts, coach screws or nuts. The M12 washer has a 14.0mm internal diameter and 58.0mm outside diameter which helps spread clamping force across the timber and reduce local crushing around the fixing point. The A2 Stainless Steel material is well suited to general construction and outdoor timber projects where good corrosion resistance is required.
What Are Wood Construction Washers?
Timber Construction Washers provide a larger bearing surface than standard flat washers. They are commonly positioned beneath bolt heads or nuts in timber framing so the fixing force is distributed more evenly across beams, posts, joists and other wooden components.
Common Applications
- Retaining Structures: Helps spread clamping force in heavy timber walls, sleepers and structural support projects.
- Beam and Post Connections: Reduces local crushing around bolted joints in timber beams, posts and support structures.
- Timber Frame Construction: Spreads bolt or coach screw load across beams, posts and joists to support stronger structural joints.
- Fencing and Gates: Provides additional bearing area around bolts used in timber posts, rails and gate assemblies.
M12 DIN 1052 Wood Construction Washer Dimensions
- Size: M12
- Internal Diameter: 14.0mm
- Outside Diameter: 58.0mm
- Thickness: 6.00mm
- Material: A2 Stainless Steel
- Standard: DIN 1052
Key Benefits
- Suitable for use beneath compatible bolt heads or nuts in timber framing and structural joinery.
- M12 size provides the stated fastener reference for the washer.
- 6.00mm thickness provides the specified washer section for this size.
- DIN 1052 manufacture provides the recognised dimensional standard for this washer type.
Browse the complete Timber Construction Washers range for alternative internal diameters, outside diameters and stainless steel grades. We can help you choose the right option on 01233 713581.
